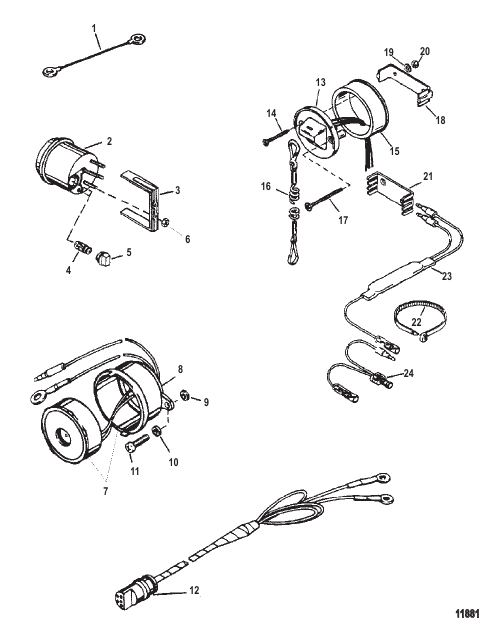

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
86322A7 |
CABLE ASSEMBLY (1.50 Feet) Black (Black - 1.50 Inch)
|
1 |
disc.
|
| 1 |
86323A5 |
CABLE ASSEMBLY (1.50 Feet) Purple (Purple - 1.50 Inch)
|
1 |
disc.
|
| 10 |
26427 |
WASHER
|
4 |
disc.
|
| 11 |
35401 |
SCREW (#10 x 1.00)
|
2 |
disc.
|
| 12 |
86396A8 |
HARNESS ASSEMBLY Tachometer (5.00 Feet)
|
1 |
|
| 13 |
19674A1 |
SWITCH ASSEMBLY Lanyard
|
1 |
disc.
|
| 14 |
18303 |
SCREW (.190-16 x 1.750) Stainless Steel
|
2 |
|
| 15 |
813679 |
ADAPTER
|
1 |
|
| 16 |
15920Q54 |
LANYARD ASSEMBLY
|
1 |
disc.
|
| 17 |
32866 |
SCREW (#10-32 x 2.00) Stainless Steel
|
2 |
|
| 18 |
18321 |
CLAMP Mounting
|
1 |
|
| 19 |
24676 |
WASHER (.200 x .440 x .032)
|
2 |
|
| 2 |
825338A3 |
GAUGE Power Trim, White Face, Black Graduation, Black Bezel
|
1 |
superseded
|
| 20 |
68219 |
NUT (#10-32) Stainless Steel
|
4 |
|
| 21 |
79146 |
RETAINER
|
3 |
|
| 22 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 23 |
812497A2 |
DIODE ASSEMBLY
|
1 |
disc.
|
| 24 |
11149A2 |
CABLE ASSEMBLY (6.00 Inches)
|
1 |
|
| 3 |
79480 |
BRACKET
|
1 |
disc.
|
| 4 |
72729 |
LIGHT BULB Wedge Base (14V - 1.9W)
|
1 |
|
| 5 |
79888 |
SOCKET Light Bulb
|
1 |
|
| 6 |
26419 |
NUT (#8-32) Brass
|
5 |
|
| 7 |
68878A6 |
HORN ASSEMBLY Buzzer Alarm
|
1 |
disc.
|
| 8 |
68879 |
COVER
|
1 |
disc.
|
| 9 |
79697 |
SPACER
|
2 |
superseded
|
