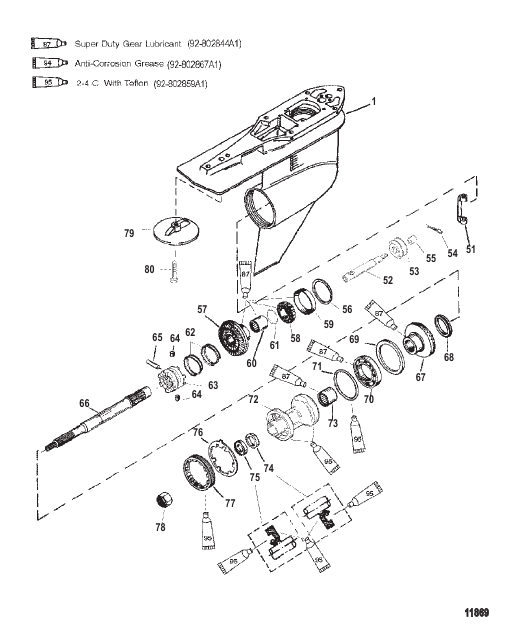

| # | Part Number | Description | Qty | Status |
|---|
| - |
859399T22 |
GEAR HOUSING ASSEMBLY Complete
|
1 |
superseded
|
| - |
840389A2 |
PROP HUB KIT
|
1 |
superseded
|
| - |
840382A1 |
SNUBBER STRIP KIT
|
1 |
superseded
|
| 1 |
859399T24 |
GEAR HOUSING ASSEMBLY Complete Basic
|
1 |
|
| 51 |
823903 |
SHIFT CRANK
|
1 |
superseded
|
| 52 |
19755T7 |
SPOOL ASSEMBLY
|
1 |
superseded
|
| 53 |
NSS |
NOT SOLD SEPARATE Shift Spool
|
1 |
|
| 54 |
NSS |
NOT SOLD SEPARATE Cotter Pin
|
1 |
|
| 55 |
NSS |
NOT SOLD SEPARATE Sleeve
|
1 |
|
| 56 |
44491A1 |
SHIM SET
|
AR |
disc.
|
| 57 |
859321A3 |
GEAR SET Forward/Pinion (12/21)
|
1 |
|
| 58 |
30894A1 |
BEARING SET Cup And Cone
|
1 |
|
| 59 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 60 |
30895T |
BEARING Needle
|
1 |
|
| 61 |
856823 |
RING Retaining
|
1 |
|
| 62 |
78962 |
SPRING
|
2 |
|
| 63 |
848878T |
CLUTCH
|
1 |
|
| 64 |
78909 |
PIN Detent
|
2 |
|
| 65 |
848838 |
PIN Cross
|
1 |
|
| 66 |
824110 |
PROPELLER SHAFT
|
1 |
superseded
|
| 67 |
859322A1 |
GEAR Reverse (12/21)
|
1 |
|
| 68 |
824108 |
SPACER
|
1 |
|
| 69 |
681001 |
RING Thrust
|
1 |
|
| 70 |
88957T |
BEARING Ball
|
1 |
|
| 71 |
31534 |
O-RING
|
1 |
superseded
|
| 72 |
818763T11 |
CARRIER ASSEMBLY Bearing
|
1 |
disc.
|
| 73 |
30956T |
BEARING Needle
|
1 |
|
| 74 |
14077 |
SEAL Oil Inside
|
1 |
|
| 75 |
76868 |
SEAL Outside
|
1 |
superseded
|
| 76 |
18323 |
TAB WASHER
|
1 |
|
| 77 |
79448 |
RETAINER
|
1 |
superseded
|
| 78 |
52707Q1 |
PROP NUT KIT (.750-16)
|
1 |
|
| 79 |
76214T3 |
ANODE
|
1 |
|
| 80 |
41350 |
SCREW (.437-14 x 2.50) Stainless Steel
|
1 |
|
