| # | Part Number | Description | Qty | Status |
|---|
| - |
832933A01 |
GASKET SET Powerhead
|
1 |
|
| - |
840756A01 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| 1 |
840192T6 |

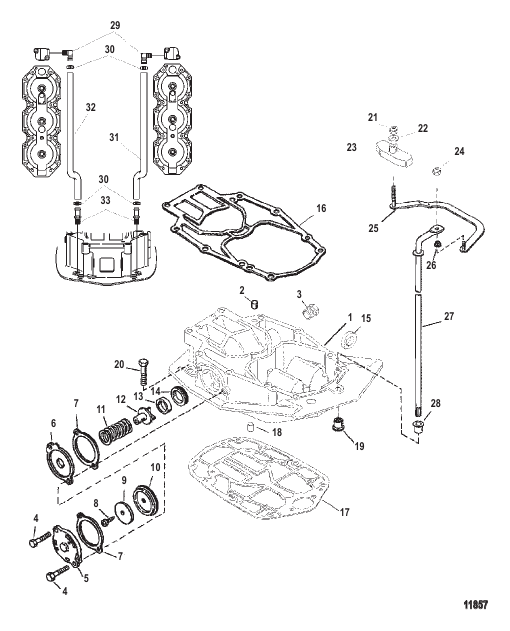

PLATE ASSEMBLY Exhaust
|
1 |
|
| 10 |
64877 |
DIAPHRAGM
|
1 |
superseded
|
| 11 |
64878 |
SPRING (Black)
|
1 |
|
| 12 |
814189 |
POPPET
|
1 |
|
| 13 |
814191 |
GROMMET
|
1 |
|
| 14 |
814190 |
CARRIER
|
1 |
|
| 15 |
840193 |
SPACER
|
2 |
|
| 16 |
8329334 |
GASKET
|
2 |
superseded
|
| 17 |
8329344 |
GASKET Lower
|
1 |
disc.
|
| 18 |
823106 |
PIN Dowel (.875)
|
2 |
superseded
|
| 19 |
43585 |
COUPLING
|
1 |
|
| 2 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
2 |
|
| 20 |
81893435 |
SCREW (M8 x 35)
|
6 |
|
| 21 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 22 |
35459 |
WASHER
|
1 |
|
| 23 |
8539682 |
SLIDE
|
1 |
disc.
|
| 24 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 25 |
8141936 |
SHIFT LINK
|
1 |
superseded
|
| 26 |
42994 |
BUSHING
|
1 |
|
| 27 |
8240701 |
SHIFT SHAFT Upper (Short/Long)
|
1 |
superseded
|
| 27 |
8240702 |
SHIFT SHAFT Upper (X-Long)
|
1 |
superseded
|
| 28 |
48237 |
BUSHING
|
1 |
|
| 29 |
8533394 |
FITTING
|
2 |
|
| 3 |
428611 |
FITTING Pipe - Brass (.750-14)
|
1 |
superseded
|
| 30 |
816311T |
TIE STRAP (8.00 Inches)
|
4 |
|
| 31 |
8404462 |
HOSE (Starboard)
|
1 |
|
| 32 |
8404461 |
HOSE (Port)
|
1 |
|
| 33 |
8552141 |
FITTING
|
2 |
superseded
|
| 4 |
81893435 |
SCREW (M8 x 35)
|
2 |
|
| 5 |
656632 |
COVER
|
1 |
superseded
|
| 6 |
65664A1 |
PLATE ASSEMBLY
|
1 |
|
| 7 |
88907 |
GASKET
|
2 |
superseded
|
| 8 |
69570 |
SCREW (#10-16 x .750)
|
1 |
|
| 9 |
76451 |
WASHER
|
1 |
|
