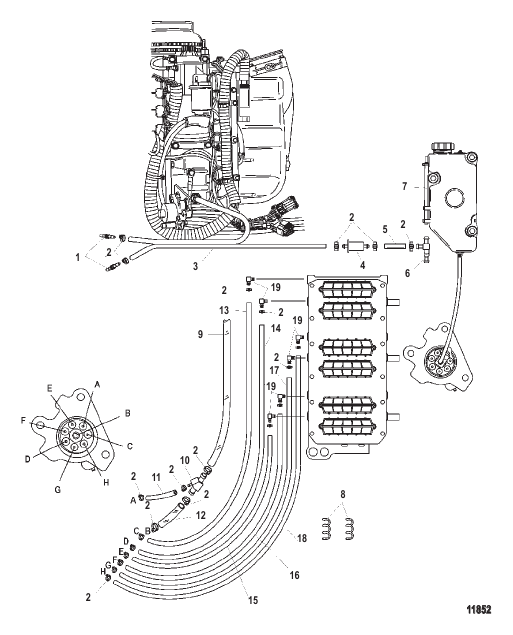

Oiling System
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 858955 |
СОЕДИНИТЕЛЬ CONNECTOR |
2 | |
| 10 | 840399 |
Y-ОБРАЗНЫЙ ФИТИНГ Y-FITTING |
1 | discontinued |
| 11 | 85583463 |
ТРУБОПРОВОД (Общая длина 33.00") (Cut to 3.50 Inch Length) TUBING (33.00 Inches Bulk) (Cut to 3.50 Inch Length) |
1 | superseded |
| 12 | 897131 |
РУКАВ (2.75") HOSE (2.75 Inches) |
1 | discontinued |
| 13 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 27.00 Inch Length) TUBING (36.00 Inches Bulk) (Cut to 27.00 Inch Length) |
1 | superseded |
| 14 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 25.00 Inch Length) TUBING (36.00 Inches Bulk) (Cut to 25.00 Inch Length) |
1 | superseded |
| 15 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 14.50 Inch Length) TUBING (36.00 Inches Bulk) (Cut to 14.50 Inch Length) |
1 | superseded |
| 16 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 16.50 Inch Length) TUBING (36.00 Inches Bulk) (Cut to 16.50 Inch Length) |
1 | superseded |
| 17 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 19.50 Inch Length) TUBING (36.00 Inches Bulk) (Cut to 19.50 Inch Length) |
1 | superseded |
| 18 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 22.00 Inch Length) TUBING (36.00 Inches Bulk) (Cut to 22.00 Inch Length) |
1 | superseded |
| 19 | 858870 |
ОБРАТНЫЙ КЛАПАН (90 Degrees) CHECK VALVE (90 Degrees) |
6 | |
| 2 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | |
| 2 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
AR | |
| 3 | 875289 |
РУКАВ HOSE |
1 | |
| 4 | 875284 |
ФИЛЬТР Однорядный FILTER In Line |
1 | superseded |
| 5 | 875283 |
РУКАВ (2.00") HOSE (2.00 Inches) |
1 | |
| 6 | 424254 |
ФИТИНГ FITTING |
1 | superseded |
| 7 | 830756109 |
РУКАВ (Общая длина 57.00") (Cut to 7.00 Inch Length) HOSE (57.00 Inches Bulk) (Cut to 7.00 Inch Length) |
1 | superseded |
| 8 | 859230 |
ФИКСАТОР RETAINER |
2 | superseded |
| 9 | 82381455 |
ТРУБОПРОВОД (Общая длина 25.00") (Cut to 15.50 Inch Length) TUBING (25.00 Inches Bulk) (Cut to 15.50 Inch Length) |
1 |
