| # | Part Number | Description | Qty | Status |
|---|
| - |
14360A71 |

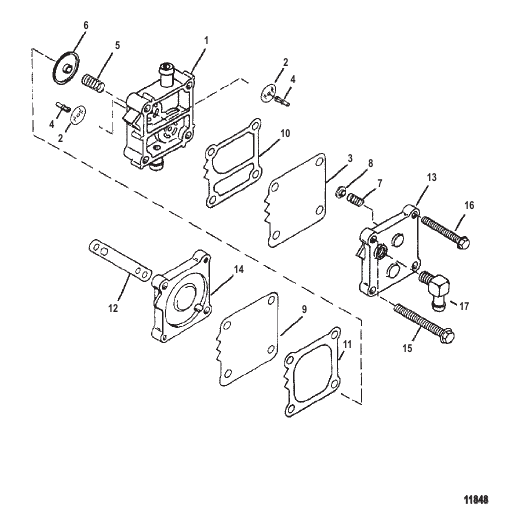

PUMP ASSEMBLY Fuel
|
1 |
superseded
|
| - |
832933A01 |
GASKET SET Powerhead
|
1 |
|
| - |
840756A01 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| 1 |
NSS |
NOT SOLD SEPARATE Fuel Pump
|
1 |
|
| 10 |
NSS |
NOT SOLD SEPARATE Gasket-Boost
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Gasket-Pulse
|
1 |
|
| 12 |
987691 |
GASKET
|
1 |
superseded
|
| 13 |
987752 |
PLATE
|
1 |
|
| 14 |
144303 |
BASE
|
1 |
|
| 15 |
82104540 |
SCREW (M5 x 40)
|
2 |
|
| 16 |
82130050 |
SCREW (M6 x 50)
|
2 |
|
| 17 |
629101 |
FITTING Elbow - 90 Degree (.125-27)
|
1 |
|
| 2 |
857005A1 |
DIAPHRAGM KIT
|
2 |
|
| 3 |
NSS |
NOT SOLD SEPARATE Diaphragm Kit
|
1 |
|
| 4 |
NSS |
NOT SOLD SEPARATE Retainer
|
2 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Spring
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Cap
|
1 |
|
| 7 |
NSS |
NOT SOLD SEPARATE Spring
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE Cap
|
1 |
|
| 9 |
NSS |
NOT SOLD SEPARATE Diaphragm
|
1 |
|
