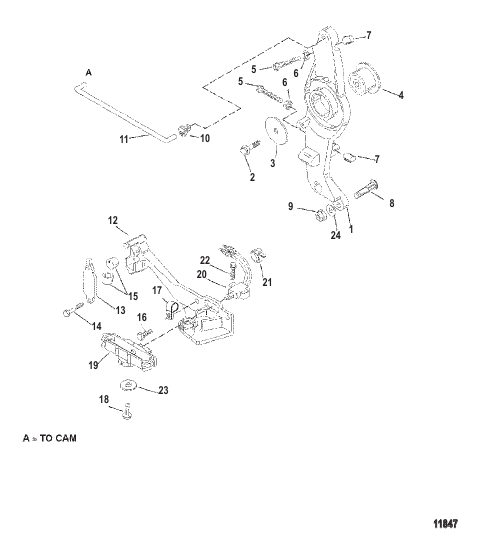

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8252681 | LEVER Throttle Control | 1 | superseded |
| 10 | 932481 | BUSHING | 1 | superseded |
| 11 | 8583542 | LINK | 1 | |
| 12 | 8240102 | BRACKET | 1 | superseded |
| 13 | 824016 | LATCH | 1 | |
| 14 | 42975 | DRIVE SCREW | 2 | |
| 15 | 824015 | CUP Barrel Retainer | 2 | |
| 16 | 82155025 | SCREW (M8 x 25 MM) Stainless Steel | 2 | |
| 17 | 859172 | CLAMP | 1 | |
| 18 | 82155025 | SCREW (M8 x 25 MM) Stainless Steel | 1 | |
| 19 | 8546531 | GUIDE Roller | 1 | superseded |
| 2 | 81893435 | SCREW (M8 x 35) | 1 | |
| 20 | 814281A2 | SWITCH | 1 | superseded |
| 21 | 816311T | TIE STRAP (8.00 Inches) | 1 | |
| 22 | 82470620 | SCREW (M3.5 x 20) | 2 | |
| 23 | 43430 | WASHER | 1 | |
| 24 | 35459 | WASHER | 1 | |
| 3 | 36042 | WASHER | 1 | |
| 4 | 821113 | BUSHING | 1 | |
| 5 | 40124 | SCREW (M6 x 55) | 2 | |
| 6 | 400212 | NUT (M6) Stainless Steel | 2 | |
| 7 | 42942 | CAP | 2 | |
| 8 | 42927 | INSERT | 1 | |
| 9 | 401386 | NUT (M6) Stainless Steel | 1 |
