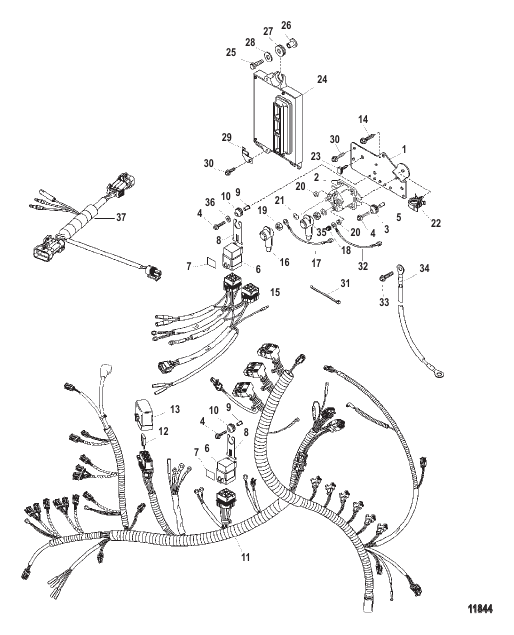

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
858366T2 |
PLATE
|
1 |
|
| 10 |
818967 |
GROMMET
|
3 |
|
| 11 |
840495T1 |
HARNESS ASSEMBLY Engine Wiring
|
1 |
|
| 12 |
83296920 |
FUSE Mini - Yellow - 20 Ampere
|
1 |
superseded
|
| 12 |
83296915 |
FUSE Mini - Blue - 15 Ampere
|
1 |
superseded
|
| 13 |
NSS |
NOT SOLD SEPARATE Fuse Cover
|
1 |
|
| 14 |
82130012 |
SCREW (M6 x 12)
|
3 |
|
| 15 |
819514T16 |
HARNESS ASSEMBLY Trim
|
1 |
|
| 16 |
8500671 |
BOOT Insulator - Red
|
1 |
|
| 17 |
880771T1 |
CABLE ASSEMBLY (24.00 Inches) Red
|
1 |
disc.
|
| 18 |
813938 |
CAP NUT (#10-32)
|
1 |
|
| 19 |
68292 |
NUT (.312-18)
|
2 |
superseded
|
| 2 |
817109A2 |
SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)
|
1 |
|
| 20 |
45076 |
NUT (#10-32) Brass
|
2 |
|
| 21 |
53166 |
LOCKWASHER (.312)
|
2 |
|
| 22 |
858755 |
CLIP (1.00)
|
1 |
|
| 23 |
828991 |
CLIP
|
1 |
superseded
|
| 24 |
85961029 |
ECM Engine Control Module
|
1 |
superseded
|
| 25 |
82130025 |
SCREW (M6 x 25)
|
3 |
|
| 26 |
856954 |
BUSHING
|
3 |
|
| 27 |
834985 |
GROMMET
|
3 |
superseded
|
| 28 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
3 |
|
| 29 |
8590881 |
CLIP
|
1 |
|
| 3 |
822179 |
GROMMET
|
2 |
|
| 30 |
82129114 |
SCREW (M6 x 14)
|
4 |
|
| 31 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 32 |
88807A16 |
CABLE ASSEMBLY (4.00 Inches) Black
|
1 |
|
| 33 |
81893420 |
SCREW (M8 x 20)
|
1 |
|
| 34 |
88439A26 |
CABLE ASSEMBLY Battery - Negative
|
1 |
|
| 35 |
8500673 |
BOOT Insulator - Yellow
|
1 |
|
| 36 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
1 |
superseded
|
| 37 |
859244T1 |
HARNESS ASSEMBLY Digital Adaptor
|
1 |
|
| 4 |
82129125 |
SCREW (M6 x 25 MM)
|
5 |
|
| 5 |
818968 |
BUSHING
|
2 |
superseded
|
| 6 |
828151A1 |
RELAY ASSEMBLY
|
3 |
superseded
|
| 7 |
NSS |
NOT SOLD SEPARATE Decal
|
3 |
|
| 8 |
828102 |
BRACKET
|
3 |
superseded
|
| 9 |
818968 |
BUSHING
|
3 |
superseded
|
