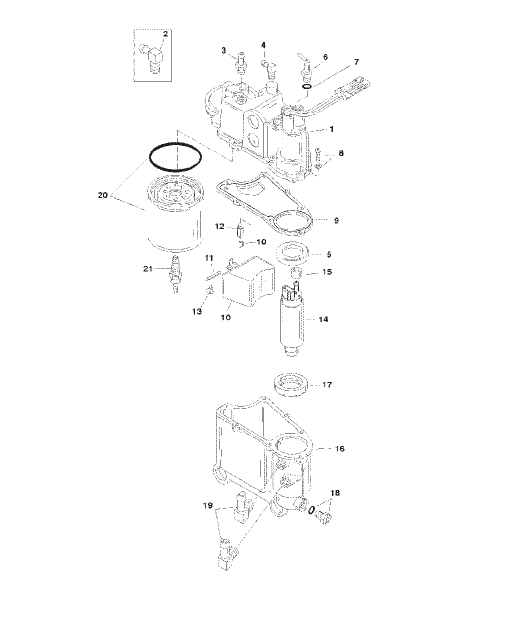

Vapor Separator Components
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 855432A1 |
КОМПЛЕКТ КРЫШЕК COVER KIT |
1 | discontinued |
| 10 | 855430A1 |
КОМПЕКТ ПОПЛАВКА FLOAT KIT |
1 | superseded |
| 11 | F10064 |
ВАЛ SHAFT |
1 | |
| 12 | 855431 |
КЛАПАН Игла VALVE Needle |
1 | superseded |
| 13 | 5902 |
ВИНТ (№6-32 x 0.187) SCREW (#6-32 x .187) |
1 | discontinued |
| 14 | 855427A1 |
КОМПЛЕКТ НАСОСА PUMP KIT |
1 | |
| 15 | 855428 |
РУКАВ SLEEVE |
1 | superseded |
| 16 | 855434A1 |
КОМПЛЕКТ КАМЕРЫ BOWL KIT |
1 | discontinued |
| 17 | 855433 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 18 | 855435A1 |
Комплект пробки PLUG KIT |
1 | |
| 19 | 8554245 |
КОЛЕНЧАТЫЙ ELBOW |
2 | discontinued |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Elbow (DESIGN I - REFER TO SERVICE BULLETIN 98-8) NOT SOLD SEPARATE Elbow (DESIGN I - REFER TO SERVICE BULLETIN 98-8) |
1 | |
| 20 | 18458A4 |
КОМПЛЕКТ ФИЛЬТРА FILTER KIT |
1 | superseded |
| 21 | 828586 |
ПРОБНИК PROBE |
1 | superseded |
| 3 | 8568431 |
ФИТИНГ Прямой STRAIGHT (DESIGN II) FITTING Straight STRAIGHT (DESIGN II) |
1 | discontinued |
| 4 | 19688 |
ФИТИНГ FITTING |
1 | discontinued |
| 5 | 803878 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Fitting Kit-Pump Outlet (DESIGN I - 3/8 IN. I.D. - REFER TO SERVICE BULLETIN 98-8) NOT SOLD SEPARATE Fitting Kit-Pump Outlet (DESIGN I - 3/8 IN. I.D. - REFER TO SERVICE BULLETIN 98-8) |
1 | |
| 6 | 855437A2 |
КОМПЛЕКТ ФИТИНГОВ Выпуск насоса (DESIGN II - 5/16 IN. I.D.) FITTING KIT Pump Outlet (DESIGN II - 5/16 IN. I.D.) |
1 | |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО O Ring NOT SOLD SEPARATE O Ring |
1 | |
| 8 | 808612 |
ВИНТ И ШАЙБА (№8-32 x .750) SCREW AND WASHER (#8-32 x .750) |
7 | |
| 9 | 855528 |
ПРОКЛАДКА GASKET |
1 | discontinued |
