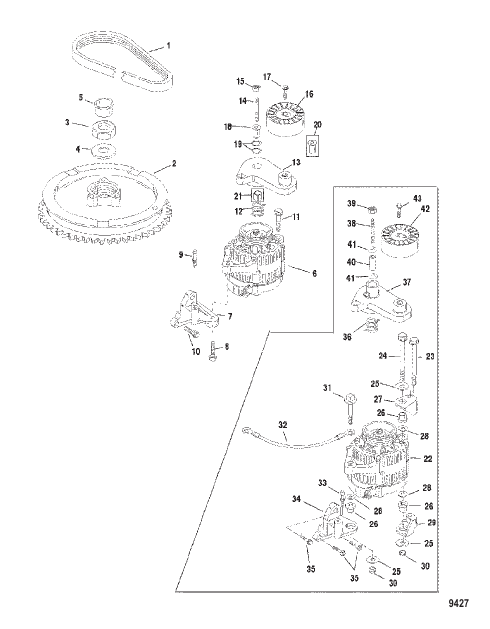

Flywheel/Alternator
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8285072 |
РЕМЕНЬ BELT |
1 | superseded |
| 10 | 812618 |
ВИНТ (0.312-18 x 1.00), нержавеющая сталь с нейлоновой накладкой (NON RUBBER MOUNT) SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch (NON RUBBER MOUNT) |
3 | |
| 11 | 82446180 |
ВИНТ (M10 x 80) (NON RUBBER MOUNT) SCREW (M10 x 80) (NON RUBBER MOUNT) |
1 | |
| 12 | 855798 |
ПРУЖИНА (NON RUBBER MOUNT) SPRING (NON RUBBER MOUNT) |
1 | superseded |
| 13 | 8502913 |
НАТЯЖНОЕ УСТРОЙСТВО РЕМНЯ (DESIGN I) BELT TENSIONER (DESIGN I) |
1 | superseded |
| 14 | 855728 |
ШПИЛЬКА (M10 X 54) (DESIGN I) STUD (M10 X 54) (DESIGN I) |
1 | superseded |
| 15 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием (DESIGN I) NUT (M10) Brass/Nickel Plated (DESIGN I) |
1 | |
| 16 | 852385A1 |
ШКИВ (DESIGN I) PULLEY (DESIGN I) |
1 | superseded |
| 17 | 4010835 |
ВИНТ Шестигранный фланец (M10 x 35), нержавеющая сталь (DESIGN I) SCREW (M10 x 35) Hex Flange - Stainless Steel (DESIGN I) |
1 | |
| 18 | 856030A2 |
КОМПЛЕКТ ВТУЛОК (DESIGN II) BUSHING KIT (DESIGN II) |
1 | discontinued |
| 19 | 85045 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.551 x 0.070) (DESIGN II) O-RING (.551 x .070) (DESIGN II) |
2 | |
| 2 | 834936A3 |
МАХОВИК FLYWHEEL |
1 | superseded |
| 20 | NLA |
Не поставляется (ORDER 23-856030A2)(DESIGN I) No Longer Available (ORDER 23-856030A2)(DESIGN I) |
1 | |
| 21 | 42139 |
ВТУЛКА (DESIGN I) BUSHING (DESIGN I) |
1 | |
| 22 | 857006T |
ГЕНЕРАТОР (RUBBER MOUNT) ALTERNATOR (RUBBER MOUNT) |
1 | discontinued |
| 23 | 40108100 |
ВИНТ Шестигранный фланец (M10 x 100), нержавеющая сталь (RUBBER MOUNT) SCREW (M10 x 100) Hex Flange - Stainless Steel (RUBBER MOUNT) |
1 | superseded |
| 24 | 40108120 |
ВИНТ Шестигранный фланец (M10 x 120), нержавеющая сталь (RUBBER MOUNT) SCREW (M10 x 120) Hex Flange - Stainless Steel (RUBBER MOUNT) |
1 | |
| 25 | 29395 |
ШАЙБА (0.390 x 1.00 x 0.06) (RUBBER MOUNT) WASHER (.390 x 1.00 x .06) (RUBBER MOUNT) |
3 | superseded |
| 26 | 856975 |
КРЕПЛЕНИЕ (RUBBER MOUNT) MOUNT (RUBBER MOUNT) |
3 | |
| 27 | 856972T |
КРОНШТЕЙН (RUBBER MOUNT) BRACKET (RUBBER MOUNT) |
1 | superseded |
| 28 | 845998 |
ШАЙБА (0.406 x 1.250 x 0.089) (RUBBER MOUNT) WASHER (.406 x 1.250 x .089) (RUBBER MOUNT) |
3 | |
| 29 | 856973T |
КРОНШТЕЙН (RUBBER MOUNT) BRACKET (RUBBER MOUNT) |
1 | superseded |
| 3 | 52901 |
ГАЙКА (.625-18) NUT (.625-18) |
1 | |
| 30 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием (RUBBER MOUNT) NUT (M10) Brass/Nickel Plated (RUBBER MOUNT) |
2 | |
| 31 | 82446155 |
ВИНТ (M10 x 55) (RUBBER MOUNT) SCREW (M10 x 55) (RUBBER MOUNT) |
1 | |
| 32 | 856583T2 |
КАБЕЛЬ В СБОРЕ (RUBBER MOUNT) CABLE ASSEMBLY (RUBBER MOUNT) |
1 | |
| 33 | 821583 |
ШТИФТ (RUBBER MOUNT) PIN (RUBBER MOUNT) |
1 | superseded |
| 34 | 856974T |
КРОНШТЕЙН (RUBBER MOUNT) BRACKET (RUBBER MOUNT) |
1 | superseded |
| 35 | 812618 |
ВИНТ (0.312-18 x 1.00), нержавеющая сталь с нейлоновой накладкой (RUBBER MOUNT) SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch (RUBBER MOUNT) |
3 | |
| 36 | 855798 |
ПРУЖИНА (DESIGN II) SPRING (DESIGN II) |
1 | superseded |
| 37 | 856815T2 |
НАТЯЖНОЕ УСТРОЙСТВО РЫЧАГА В СБОРЕ (DESIGN II) ARM TENSIONER ASSEMBLY (DESIGN II) |
1 | |
| 38 | 856900 |
ШПИЛЬКА (M10 x 85) (DESIGN II) STUD (M10 x 85) (DESIGN II) |
1 | superseded |
| 39 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием (DESIGN II) NUT (M10) Brass/Nickel Plated (DESIGN II) |
1 | |
| 4 | 68229 |
ШАЙБА (0.641 x 1.250 x 0.190) WASHER (.641 x 1.250 x .190) |
1 | superseded |
| 40 | 856894 |
ВТУЛКА (DESIGN II) BUSHING (DESIGN II) |
1 | superseded |
| 41 | 4002320 |
ШАЙБА (DESIGN II) WASHER (DESIGN II) |
2 | |
| 42 | 852385A1 |
ШКИВ (DESIGN II) PULLEY (DESIGN II) |
1 | superseded |
| 43 | 4010835 |
ВИНТ Шестигранный фланец (M10 x 35), нержавеющая сталь (DESIGN II) SCREW (M10 x 35) Hex Flange - Stainless Steel (DESIGN II) |
1 | |
| 5 | 45907 |
ПРОБКА Желтый PLUG Yellow |
1 | |
| 6 | 834832 |
ГЕНЕРАТОР (NON RUBBER MOUNT) ALTERNATOR (NON RUBBER MOUNT) |
1 | superseded |
| 7 | 832080M2 |
КРОНШТЕЙН Генератор (NON RUBBER MOUNT) BRACKET Alternator (NON RUBBER MOUNT) |
1 | discontinued |
| 8 | 81893430 |
ВИНТ (M8 x 30) (NON RUBBER MOUNT) SCREW (M8 x 30) (NON RUBBER MOUNT) |
1 | discontinued |
| 9 | 821583 |
ШТИФТ (NON RUBBER MOUNT) PIN (NON RUBBER MOUNT) |
1 | superseded |
