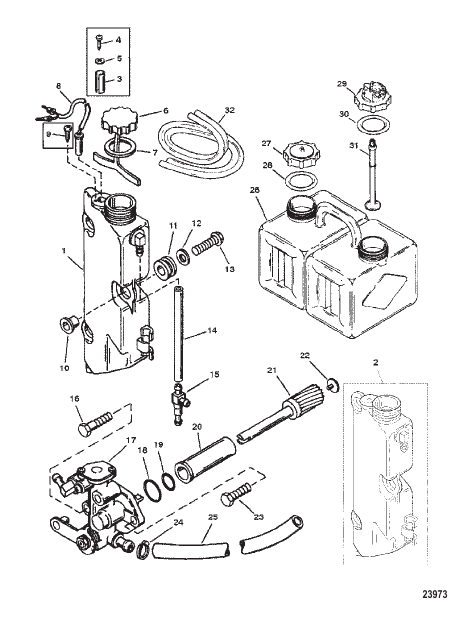

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8184561 |
TANK Oil (USE W/O SPACER - REF/ #3) [0G437999] & Below
|
1 |
superseded
|
| 1 |
818456A1 |
TANK ASSEMBLY Oil [0G437999] & Below
|
1 |
|
| 10 |
19064 |
BUSHING
|
3 |
|
| 11 |
825380 |
GROMMET
|
3 |
superseded
|
| 12 |
56720 |
WASHER (.330 x .750 x .060) Stainless Steel
|
3 |
|
| 13 |
81893435 |
SCREW (M8 x 35)
|
3 |
|
| 14 |
830756109 |
HOSE (57.00 Inches Bulk) (10 IN.) [0G437999] & Below
|
1 |
superseded
|
| 14 |
830756109 |
HOSE (57.00 Inches Bulk) (8 IN.) [0G438000] & Up
|
1 |
superseded
|
| 15 |
424254 |
FITTING
|
1 |
superseded
|
| 16 |
82104530 |
SCREW (30MM)
|
1 |
disc.
|
| 17 |
8155361 |
PUMP Oil
|
1 |
superseded
|
| 18 |
11379 |
O-RING
|
1 |
|
| 19 |
48462 |
O-RING (.614 x .070)
|
1 |
|
| 2 |
830889A1 |
TANK ASSEMBLY Oil [0G438000] & Up
|
1 |
|
| 20 |
817631 |
BEARING Driven Gear
|
1 |
disc.
|
| 21 |
430204 |
GEAR Driven
|
1 |
disc.
|
| 22 |
816974 |
BEARING Thrust
|
1 |
|
| 23 |
82104520 |
SCREW (M5 x 20) (20MM)
|
1 |
|
| 24 |
816311 |
TIE STRAP (8.00 Inches)
|
AR |
superseded
|
| 25 |
82381451 |
TUBING (8-1/2 IN.)
|
1 |
superseded
|
| 26 |
87421 |
TANK
|
1 |
|
| 27 |
43298A2 |
CAP ASSEMBLY
|
1 |
|
| 28 |
11332 |
O-RING (2.225 x .210)
|
1 |
|
| 29 |
816190A3 |
HOUSING ASSEMBLY Adapter
|
1 |
superseded
|
| 3 |
8260841 |
SPACER
|
1 |
|
| 30 |
11332 |
O-RING (2.225 x .210)
|
1 |
|
| 31 |
99802 |
TUBE
|
1 |
|
| 32 |
99439 |
HOSE (114.00 Inches)
|
1 |
|
| 4 |
58376 |
SCREW (.164-18 x .375)
|
1 |
|
| 5 |
72761 |
WASHER (.203 x .562 x .060) Stainless Steel
|
1 |
|
| 6 |
814449A2 |
CAP ASSEMBLY [0G437999] & Below
|
1 |
superseded
|
| 6 |
814449A3 |
CAP ASSEMBLY [0G438000] & Up
|
1 |
|
| 7 |
42999 |
GASKET
|
1 |
superseded
|
| 8 |
12886A6 |
SWITCH ASSEMBLY [0G437999] & Below
|
1 |
|
| 8 |
12886A7 |
SWITCH ASSEMBLY [0G438000] & Up
|
1 |
|
| 9 |
12896 |
SCREW (#8-18 x .310) (USE W/O SPACER - REF/ #3)
|
1 |
|
