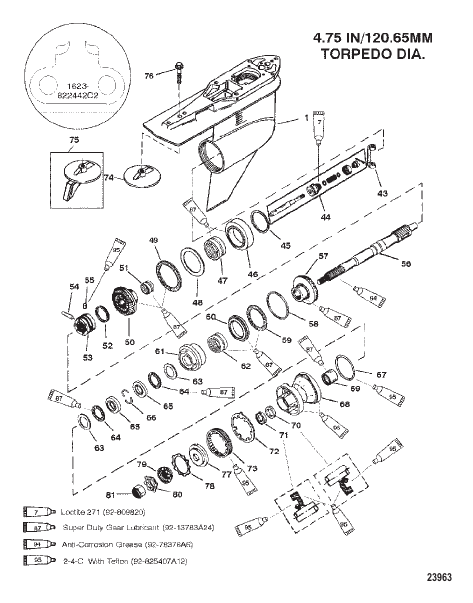

G./HSG PROP-C/R-S/N-0G437999 & BELOW-1623-822442C2 CASTING
Parts (59)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 816575A5 |
КОМПЛЕКТ УПЛОТНЕНИЙ Картер редуктора SEAL KIT Gear Housing |
1 | |
| 1 | 822442A25 |
КАРТЕР РЕДУКТОРА В СБОРЕ Базовый – черный GEAR HOUSING ASSEMBLY Basic - Black |
1 | discontinued |
| 1 | 822442A26 |
КАРТЕР РЕДУКТОРА В СБОРЕ Базовый – серый GEAR HOUSING ASSEMBLY Basic - Gray |
1 | discontinued |
| 43 | 823903 |
РУЧКА ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHIFT CRANK |
1 | superseded |
| 44 | 818349A1 |
КОМПЛЕКТ ЗОЛОТНИКА SPOOL KIT |
1 | superseded |
| 45 | 47397A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | |
| 46 | 815362A1 |
ПЕРЕХОДНИК В СБОРЕ Подшипник (1623-822442C2 CASTING) ADAPTER ASSEMBLY Bearing (1623-822442C2 CASTING) |
1 | superseded |
| 46 | 828830A2 |
(1623-822442C3 CASTING) ADAPTER ASSEMBLY Bearing (1623-822442C3 CASTING) |
1 | discontinued |
| 47 | 814653 |
БЛОК ПОДШИПНИКА Игольчатые ролики BEARING ASSEMBLY Needle Rollers |
1 | superseded |
| 48 | 815481 |
УПОРНАЯ ШАЙБА THRUST WASHER |
1 | |
| 49 | 815480 |
ПОДШИПНИК Упор BEARING Thrust |
1 | |
| 50 | 826288A1 |
РЕДУКТОР В СБОРЕ Задняя (1.75:1 GEAR RATIO - 12/21) GEAR ASSEMBLY Reverse (1.75:1 GEAR RATIO - 12/21) |
1 | superseded |
| 50 | 824700A1 |
РЕДУКТОР В СБОРЕ Задняя (1.64:1 GEAR RATIO - 17/28) GEAR ASSEMBLY Reverse (1.64:1 GEAR RATIO - 17/28) |
1 | superseded |
| 50 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО (1.62:1 GEAR RATIO - 13/21) NOT SOLD SEPARATE (1.62:1 GEAR RATIO - 13/21) |
1 | |
| 51 | 815482 |
ПОДШИПНИК Ролик BEARING Roller |
1 | |
| 52 | 30893 |
ПРУЖИНА SPRING |
1 | |
| 53 | 824112 |
СКОЛЬЗЯЩАЯ МУФТА SLIDING CLUTCH |
1 | superseded |
| 54 | 30632 |
ШТИФТ Разрез PIN Cross |
1 | superseded |
| 55 | 78909 |
ШТИФТ Фиксатор PIN Detent |
1 | |
| 56 | 824111 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | superseded |
| 57 | 826287A1 |
РЕДУКТОР В СБОРЕ Передняя (INCLUDES PINION) (1.75:1 GEAR RATIO - 12/21) GEAR ASSEMBLY Forward (INCLUDES PINION) (1.75:1 GEAR RATIO - 12/21) |
1 | discontinued |
| 57 | 828289A3 |
РЕДУКТОР В СБОРЕ Передняя (INCLUDES PINION) (NOTE: THIS COMPLETE GEAR SET IS A 1.62:1 GEAR RATIO - 13/21 REPLACING A 1.64:1 GEAR RATIO - 17/28) GEAR ASSEMBLY Forward (INCLUDES PINION) (NOTE: THIS COMPLETE GEAR SET IS A 1.62:1 GEAR RATIO - 13/21 REPLACING A 1.64:1 GEAR RATIO - 17/28) |
1 | discontinued |
| 58 | 1761514 |
РЕГУЛИРОВОЧНАЯ ПРОСТАВКА (0.206) SPACER SHIM (.206) |
AR | |
| 58 | 1761515 |
РЕГУЛИРОВОЧНАЯ ПРОСТАВКА (0.208) SPACER SHIM (.208) |
AR | |
| 58 | 1761516 |
РЕГУЛИРОВОЧНАЯ ПРОСТАВКА (0.210) SPACER SHIM (.210) |
AR | |
| 58 | 1761517 |
РЕГУЛИРОВОЧНАЯ ПРОСТАВКА (0.212) SPACER SHIM (.212) |
AR | |
| 58 | 1761518 |
РЕГУЛИРОВОЧНАЯ ПРОСТАВКА (0.214) SPACER SHIM (.214) |
AR | |
| 58 | 1761519 |
РЕГУЛИРОВОЧНАЯ ПРОСТАВКА (0.216) SPACER SHIM (.216) |
AR | |
| 58 | 1761520 |
РЕГУЛИРОВОЧНАЯ ПРОСТАВКА (0.218) SPACER SHIM (.218) |
AR | |
| 58 | 1761521 |
РЕГУЛИРОВОЧНАЯ ПРОСТАВКА (0.220) SPACER SHIM (.220) |
AR | |
| 58 | 1761522 |
РЕГУЛИРОВОЧНАЯ ПРОСТАВКА (0.222) SPACER SHIM (.222) |
AR | |
| 58 | 1761523 |
РЕГУЛИРОВОЧНАЯ ПРОСТАВКА (0.224) SPACER SHIM (.224) |
AR | |
| 58 | 1761524 |
РЕГУЛИРОВОЧНАЯ ПРОСТАВКА (0.226) SPACER SHIM (.226) |
AR | |
| 58 | 1761525 |
РЕГУЛИРОВОЧНАЯ ПРОСТАВКА (0.228) SPACER SHIM (.228) |
AR | |
| 58 | 1761526 |
РЕГУЛИРОВОЧНАЯ ПРОСТАВКА (0.230) SPACER SHIM (.230) |
AR | |
| 59 | 15841 |
ПОДШИПНИК Ролик BEARING Roller |
1 | |
| 60 | 17616 |
УПОРНОЕ КОЛЬЦО THRUST RING |
1 | |
| 61 | 818292A1 |
ПЕРЕХОДНИК В СБОРЕ Подшипник ADAPTER ASSEMBLY Bearing |
1 | discontinued |
| 62 | 814653 |
БЛОК ПОДШИПНИКА Игольчатые ролики BEARING ASSEMBLY Needle Rollers |
1 | superseded |
| 63 | 18448 |
УПОРНАЯ ШАЙБА THRUST WASHER |
2 | |
| 64 | 15842 |
ПОДШИПНИК Упор BEARING Thrust |
2 | |
| 65 | 8182911 |
ГОНОЧНЫЙ Упор RACE Thrust |
2 | |
| 66 | 814605 |
КОНТРГАЙКА KEEPER |
2 | |
| 67 | 31534 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 68 | 818290A1 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 69 | 30956 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 70 | 14077 |
УПЛОТНЕНИЕ Масло (INSIDE) SEAL Oil (INSIDE) |
1 | |
| 71 | 76868 |
УПЛОТНЕНИЕ (OUTSIDE) SEAL (OUTSIDE) |
1 | superseded |
| 72 | 18323 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 73 | 79448 |
ФИКСАТОР RETAINER |
1 | superseded |
| 74 | 76214A5 |
КОМПЛЕКТ АНОДОВ (These replacement parts are not included with complete gear housing replacement) ANODE KIT (These replacement parts are not included with complete gear housing replacement) |
1 | superseded |
| 75 | 822777A1 |
ТРАНЦЕВАЯ ПЛИТА (Anodic)(These replacement parts are not included with complete gear housing replacement)GEAR THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH HOUSING REPLACEMENT TRIM TAB (Anodic)(These replacement parts are not included with complete gear housing replacement)GEAR THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH HOUSING REPLACEMENT |
1 | superseded |
| 75 | 8227773 |
ТРАНЦЕВАЯ ПЛИТА (Black Aluminum)(These replacement parts are not included with complete gear housing replacement) TRIM TAB (Black Aluminum)(These replacement parts are not included with complete gear housing replacement) |
1 | discontinued |
| 76 | 806327 |
ВИНТ (0.437-14 x 1.750) (These replacement parts are not included with complete gear housing replacement) SCREW (.437-14 x 1.750) (These replacement parts are not included with complete gear housing replacement) |
1 | superseded |
| 77 | 835467 |
УПОРНАЯ ВТУЛКА (These replacement parts are not included with complete gear housing replacement) THRUST HUB (These replacement parts are not included with complete gear housing replacement) |
1 | superseded |
| 78 | 423511 |
СТОПОРНАЯ ШАЙБА Зубчатая (These replacement parts are not included with complete gear housing replacement) LOCKWASHER Toothed (These replacement parts are not included with complete gear housing replacement) |
1 | |
| 79 | 31211A2 |
ШАЙБА Шлицевый (These replacement parts are not included with complete gear housing replacement) WASHER Splined (These replacement parts are not included with complete gear housing replacement) |
1 | superseded |
| 80 | 816629 |
ЛЕПЕСТКОВАЯ ШАЙБА (These replacement parts are not included with complete gear housing replacement) TAB WASHER (These replacement parts are not included with complete gear housing replacement) |
1 | superseded |
| 81 | 52707A1 |
КОМПЛЕКТ ГАЙКИ ГРЕБНОГО ВИНТА (.750-16) (These replacement parts are not included with complete gear housing replacement) PROP NUT KIT (.750-16) (These replacement parts are not included with complete gear housing replacement) |
1 | superseded |
