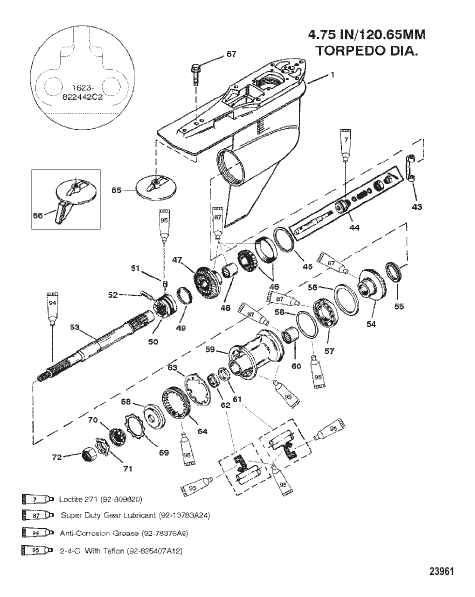

G./HSG (PROP-STD-S/N-0G437999 & BELOW-1623-822442C2
Parts (38)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 816575A5 |
КОМПЛЕКТ УПЛОТНЕНИЙ Картер редуктора SEAL KIT Gear Housing |
1 | |
| 1 | 822442A25 |
КАРТЕР РЕДУКТОРА В СБОРЕ Базовый – черный GEAR HOUSING ASSEMBLY Basic - Black |
1 | discontinued |
| 1 | 822442A26 |
КАРТЕР РЕДУКТОРА В СБОРЕ Базовый – серый GEAR HOUSING ASSEMBLY Basic - Gray |
1 | discontinued |
| 43 | 823903 |
РУЧКА ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHIFT CRANK |
1 | superseded |
| 44 | 818349A1 |
КОМПЛЕКТ ЗОЛОТНИКА SPOOL KIT |
1 | superseded |
| 45 | 47397A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | |
| 46 | 35928A1 |
БЛОК ПОДШИПНИКА Конический ролик (USE WITH 1623-822442C2 CASTING) BEARING ASSEMBLY Taper Roller (USE WITH 1623-822442C2 CASTING) |
1 | superseded |
| 46 | 828439A2 |
БЛОК ПОДШИПНИКА Конический ролик (USE WITH 1623-822442C3 CASTING) BEARING ASSEMBLY Taper Roller (USE WITH 1623-822442C3 CASTING) |
1 | |
| 47 | 826181A2 |
НАБОР ШЕСТЕРЕН Передняя (INCLUDES PINION GEAR) (1.75:1 - 12/21) GEAR SET Forward (INCLUDES PINION GEAR) (1.75:1 - 12/21) |
1 | |
| 47 | 828072A2 |
РЕДУКТОР В СБОРЕ Передняя (NOTE: THIS COMPLETE GEAR SET IS A 1.62:1- 13/21 REPLACING A 1.64:1- 17/28) GEAR ASSEMBLY Forward (NOTE: THIS COMPLETE GEAR SET IS A 1.62:1- 13/21 REPLACING A 1.64:1- 17/28) |
1 | superseded |
| 48 | 30895 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 49 | 30893 |
ПРУЖИНА SPRING |
1 | |
| 50 | 824112 |
СКОЛЬЗЯЩАЯ МУФТА SLIDING CLUTCH |
1 | superseded |
| 51 | 78909 |
ШТИФТ Фиксатор PIN Detent |
1 | |
| 52 | 30632 |
ШТИФТ Разрез PIN Cross |
1 | superseded |
| 53 | 824110 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | superseded |
| 54 | 826182A1 |
РЕДУКТОР В СБОРЕ Задняя (1.75:1 GEAR RATIO - 12/21) GEAR ASSEMBLY Reverse (1.75:1 GEAR RATIO - 12/21) |
1 | |
| 54 | 824109A1 |
РЕДУКТОР В СБОРЕ Задняя (1.64:1 GEAR RATIO - 17/28) GEAR ASSEMBLY Reverse (1.64:1 GEAR RATIO - 17/28) |
1 | discontinued |
| 54 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Reverse Gear (1.62:1 - 13/21)(PART OF 43-828072A2) NOT SOLD SEPARATE Reverse Gear (1.62:1 - 13/21)(PART OF 43-828072A2) |
1 | |
| 55 | 824108 |
ПРОСТАВКА SPACER |
1 | |
| 56 | 681001 |
КОЛЬЦО Упор RING Thrust |
1 | |
| 57 | 88957 |
БЛОК ПОДШИПНИКА Шарик BEARING ASSEMBLY Ball |
1 | superseded |
| 58 | 31534 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 59 | 818763A11 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 60 | 30956 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 61 | 14077 |
УПЛОТНЕНИЕ Масло (INSIDE) SEAL Oil (INSIDE) |
1 | |
| 62 | 76868 |
УПЛОТНЕНИЕ (OUTSIDE) SEAL (OUTSIDE) |
1 | superseded |
| 63 | 18323 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 64 | 79448 |
ФИКСАТОР RETAINER |
1 | superseded |
| 65 | 76214A5 |
КОМПЛЕКТ АНОДОВ (These replacement parts are not included with complete gear housing replacement) ANODE KIT (These replacement parts are not included with complete gear housing replacement) |
1 | superseded |
| 66 | 8227773 |
ТРАНЦЕВАЯ ПЛИТА (Black Aluminum)(These replacement parts are not included with complete gear housing replacement) TRIM TAB (Black Aluminum)(These replacement parts are not included with complete gear housing replacement) |
1 | discontinued |
| 66 | 822777A1 |
ТРАНЦЕВАЯ ПЛИТА (Anodic)(These replacement parts are not included with complete gear housing replacement)GEAR THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH HOUSING REPLACEMENT TRIM TAB (Anodic)(These replacement parts are not included with complete gear housing replacement)GEAR THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH HOUSING REPLACEMENT |
1 | superseded |
| 67 | 806327 |
ВИНТ (0.437-14 x 1.750) (These replacement parts are not included with complete gear housing replacement) SCREW (.437-14 x 1.750) (These replacement parts are not included with complete gear housing replacement) |
1 | superseded |
| 68 | 835467 |
УПОРНАЯ ВТУЛКА (These replacement parts are not included with complete gear housing replacement) THRUST HUB (These replacement parts are not included with complete gear housing replacement) |
1 | superseded |
| 69 | 423511 |
СТОПОРНАЯ ШАЙБА Зубчатая (These replacement parts are not included with complete gear housing replacement) LOCKWASHER Toothed (These replacement parts are not included with complete gear housing replacement) |
1 | |
| 70 | 31211A2 |
ШАЙБА Шлицевый (These replacement parts are not included with complete gear housing replacement) WASHER Splined (These replacement parts are not included with complete gear housing replacement) |
1 | superseded |
| 71 | 816629 |
ЛЕПЕСТКОВАЯ ШАЙБА (These replacement parts are not included with complete gear housing replacement) TAB WASHER (These replacement parts are not included with complete gear housing replacement) |
1 | superseded |
| 72 | 52707A1 |
КОМПЛЕКТ ГАЙКИ ГРЕБНОГО ВИНТА (.750-16) (These replacement parts are not included with complete gear housing replacement) PROP NUT KIT (.750-16) (These replacement parts are not included with complete gear housing replacement) |
1 | superseded |
