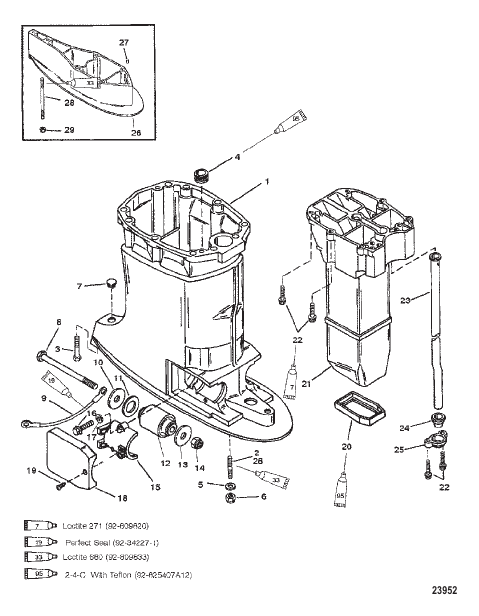

DRIVESHAFT HOUSING (S/N-0G437999 AND BELOW)
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 818452A1 |
КОРПУС В СБОРЕ Карданный вал (BLACK-LONG) HOUSING ASSEMBLY Driveshaft (BLACK-LONG) |
1 | discontinued |
| 1 | 818452A2 |
КОРПУС В СБОРЕ Карданный вал (GRAY-LONG) HOUSING ASSEMBLY Driveshaft (GRAY-LONG) |
1 | superseded |
| 1 | 818453A1 |
КОРПУС В СБОРЕ Карданный вал (BLACK-X/XX-LONG) HOUSING ASSEMBLY Driveshaft (BLACK-X/XX-LONG) |
1 | discontinued |
| 1 | 818453A2 |
КОРПУС В СБОРЕ Карданный вал (GRAY-X/XX-LONG) HOUSING ASSEMBLY Driveshaft (GRAY-X/XX-LONG) |
1 | superseded |
| 10 | 815432 |
ШАЙБА (0.562 x 2.00 x 0.125) WASHER (.562 x 2.00 x .125) |
2 | |
| 11 | 815433 |
ШАЙБА WASHER |
2 | superseded |
| 12 | 8137711 |
КРЕПЛЕНИЕ MOUNT |
2 | |
| 13 | 825190 |
ШАЙБА WASHER |
1 | |
| 14 | 815434 |
ГАЙКА NUT |
2 | superseded |
| 15 | 8186441 |
ЗАЖИМ CLAMP |
2 | superseded |
| 16 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
4 | |
| 17 | 72521 |
СТОПОРНАЯ ШАЙБА Внутренние зубья LOCKWASHER Internal Tooth |
1 | |
| 18 | 818645F1 |
КРЫШКА Черный (BLACK) COVER Black (BLACK) |
2 | superseded |
| 18 | 818645F2 |
КРЫШКА (GRAY) COVER (GRAY) |
2 | discontinued |
| 19 | 69079 |
ВИНТ (№10-16 x 0.440) SCREW (#10-16 x .440) |
2 | |
| 2 | 822257 |
ШПИЛЬКА (M12 X 1.75 X 50) (L/X-LONG) STUD (M12 X 1.75 X 50) (L/X-LONG) |
4 | superseded |
| 20 | 816503 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 21 | 8263841 |
ТРУБА Выхлоп TUBE Exhaust |
1 | superseded |
| 22 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
8 | |
| 23 | 8141964 |
ТРУБА Вода (LONG) TUBE Water (LONG) |
1 | discontinued |
| 23 | 8141965 |
ТРУБА Вода (X-LONG) TUBE Water (X-LONG) |
1 | discontinued |
| 23 | 8141966 |
ТРУБА Вода (XX-LONG) TUBE Water (XX-LONG) |
1 | discontinued |
| 24 | 814080 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 25 | 814081 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 26 | 823979F1 |
ПРОСТАВКА (BLACK) XX-LONG SPACER (BLACK) XX-LONG |
1 | superseded |
| 26 | 823979F2 |
ПРОСТАВКА (GRAY) XX-LONG SPACER (GRAY) XX-LONG |
1 | superseded |
| 27 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) XX-LONG PIN Dowel - Without Hole (.375 x .625) XX-LONG |
2 | |
| 28 | 824117 |
ШПИЛЬКА (M12 X 1.75 X 183) XX-LONG STUD (M12 X 1.75 X 183) XX-LONG |
4 | superseded |
| 28 | 824118 |
ШПИЛЬКА (M10 X 1.5 X 173) XX-LONG STUD (M10 X 1.5 X 173) XX-LONG |
1 | discontinued |
| 29 | 400636 |
ГАЙКА (M10 X 1.5) XX-LONG NUT (M10 X 1.5) XX-LONG |
1 | |
| 3 | 82130130 |
ВИНТ (M10 x 30) (L/X-LONG) SCREW (M10 x 30) (L/X-LONG) |
1 | |
| 4 | 89417 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 5 | 4002321 |
ШАЙБА (12.80 мм x 24.0 мм x 2.4 мм), нержавеющая сталь WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel |
4 | |
| 6 | 821280 |
ГАЙКА (M12 X 1.75) NUT (M12 X 1.75) |
4 | superseded |
| 7 | 64649 |
ПРОБКА PLUG |
1 | |
| 8 | 815431 |
ВИНТ (M14 x 178) SCREW (M14 x 178) |
2 | superseded |
| 9 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 |
