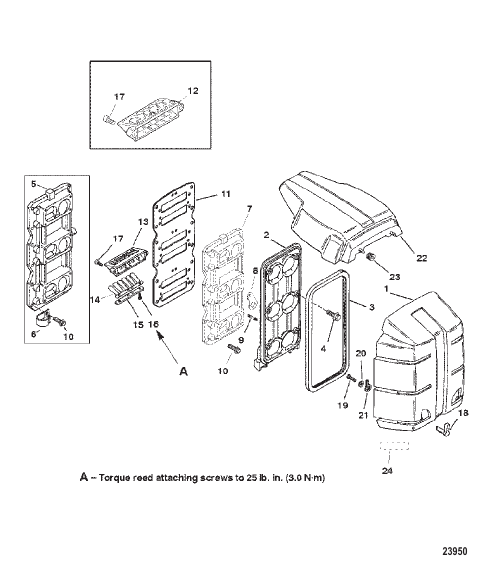

REED BLOCK/SOUND ATTENUATOR
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 814195A93 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| - | 823291A94 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (8 TOOTH SPLINES) [0G129221] & Below POWERHEAD ASSEMBLY (8 TOOTH SPLINES) [0G129221] & Below |
1 | discontinued |
| - | 809794A97 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (13 TOOTH SPLINES) [0G129222] & Up POWERHEAD ASSEMBLY (13 TOOTH SPLINES) [0G129222] & Up |
1 | discontinued |
| - | 809793A97 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (SEAPRO/MARATHON) POWERHEAD ASSEMBLY (SEAPRO/MARATHON) |
1 | superseded |
| 1 | 8184441 |
АТТЕНЮАТОР Звук ATTENUATOR Sound |
1 | discontinued |
| 10 | 82130025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
12 | |
| 11 | 8141951 |
ПРОКЛАДКА GASKET |
1 | |
| 12 | 828623 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ (1 PIECE) [0G438000] & Up REED BLOCK (1 PIECE) [0G438000] & Up |
1 | superseded |
| 12 | 816032A1 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ [0G338134] THRU [0G437999] REED BLOCK [0G338134] THRU [0G437999] |
6 | superseded |
| 13 | 8160321 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ (NOT TAPPED) [0G338133] & Below REED BLOCK (NOT TAPPED) [0G338133] & Below |
6 | superseded |
| 13 | 816107A1 |
НАБОР ПЛАСТИНЧАТЫХ КЛАПАНОВ [0G338134] THRU [0G437999] REED SET [0G338134] THRU [0G437999] |
6 | |
| 14 | 816107A1 |
НАБОР ПЛАСТИНЧАТЫХ КЛАПАНОВ [0G338133] & Below REED SET [0G338133] & Below |
6 | |
| 15 | 8161081 |
ЗАЖИМ Пластинчатый клапан [0G338133] & Below CLAMP Reed [0G338133] & Below |
12 | discontinued |
| 15 | 8161082 |
ЗАЖИМ Пластинчатый клапан [0G338134] THRU [0G437999] CLAMP Reed [0G338134] THRU [0G437999] |
12 | discontinued |
| 16 | 8211108 |
ВИНТ (M4 X .7)(SELF-TAPPING) [0G338133] & Below SCREW (M4 X .7)(SELF-TAPPING) [0G338133] & Below |
48 | discontinued |
| 16 | 8211108 |
ВИНТ (M4 X .7) [0G338134] THRU [0G437999] SCREW (M4 X .7) [0G338134] THRU [0G437999] |
72 | discontinued |
| 17 | 4007420 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
12 | |
| 18 | 822520 |
РУЧКА ЗАЩЕЛКИ LATCH HANDLE |
2 | discontinued |
| 19 | 48408 |
ВИНТ (№10-16 x 0.500) SCREW (#10-16 x .500) |
2 | |
| 2 | 8215542 |
ПЛАСТИНА Шумопоглотитель PLATE Sound Attenuator |
1 | discontinued |
| 20 | 56681 |
ШАЙБА (0.203 x 0.500 x 0.032) WASHER (.203 x .500 x .032) |
2 | superseded |
| 21 | 822527 |
СТОПОР PAWL |
2 | discontinued |
| 22 | 818446 |
КРЫШКА МАХОВИКА FLYWHEEL COVER |
1 | discontinued |
| 23 | 821555 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | superseded |
| 24 | 85557714 |
НАКЛЕЙКА Данные сертификата EPA (1998) DECAL EPA Label Information (1998) |
1 | superseded |
| 3 | 8266151 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 4 | 82130020 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
6 | |
| 5 | 8161842 |
ПЛАСТИНА Переходник карбюратора [0G303045] & Below PLATE Carburetor Adaptor [0G303045] & Below |
1 | discontinued |
| 6 | 67015 |
ЗАЖИМ [0G303045] & Below CLAMP [0G303045] & Below |
1 | discontinued |
| 7 | 8161843 |
ПЛАСТИНА Переходник карбюратора [0G303046] & Up PLATE Carburetor Adaptor [0G303046] & Up |
1 | discontinued |
| 8 | 827507 |
ФИКСАТОР [0G303046] & Up RETAINER [0G303046] & Up |
1 | discontinued |
| 9 | 8165712 |
ШПИЛЬКА (M6 X 29.50) STUD (M6 X 29.50) |
6 | discontinued |
