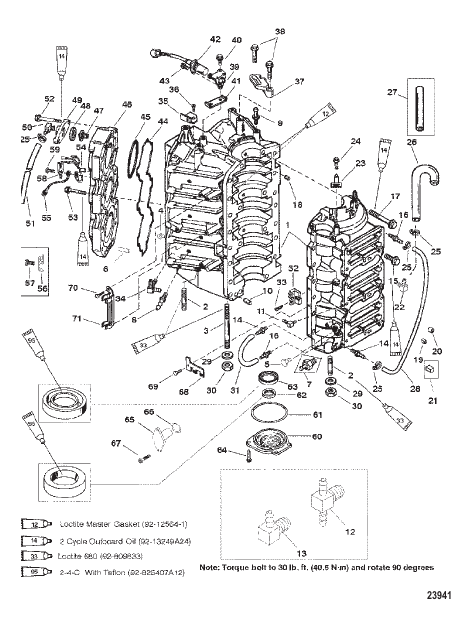

CYLINDER BLOCK AND END CAP
Parts (90)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 814195A93 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| - | 823291A94 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (8 TOOTH SPLINES) [0G129221] & Below POWERHEAD ASSEMBLY (8 TOOTH SPLINES) [0G129221] & Below |
1 | discontinued |
| - | 809794A97 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (13 TOOTH SPLINES) [0G129222] & Up POWERHEAD ASSEMBLY (13 TOOTH SPLINES) [0G129222] & Up |
1 | discontinued |
| - | 809793A97 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (SEAPRO/MARATHON) POWERHEAD ASSEMBLY (SEAPRO/MARATHON) |
1 | superseded |
| 1 | 9811A7 |
БЛОК ЦИЛИНДРА [0G129221 ] & Below CYLINDER BLOCK [0G129221 ] & Below |
1 | discontinued |
| 1 | 9811A10 |
БЛОК ЦИЛИНДРА [0G129222] THRU [0G437999] CYLINDER BLOCK [0G129222] THRU [0G437999] |
1 | superseded |
| 1 | 9811A19 |
БЛОК ЦИЛИНДРА [0G438000] & Up CYLINDER BLOCK [0G438000] & Up |
1 | discontinued |
| 10 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
1 | |
| 11 | 76843 |
ФИТИНГ [0G437999] & Below FITTING [0G437999] & Below |
6 | superseded |
| 11 | 76843 |
ФИТИНГ [0G438000] THRU [0G485988] FITTING [0G438000] THRU [0G485988] |
12 | superseded |
| 12 | 8348041 |
ОБРАТНЫЙ КЛАПАН [0G485989] & Up CHECK VALVE [0G485989] & Up |
6 | |
| 13 | 8282182 |
ОБРАТНЫЙ КЛАПАН [0G485989] & Up CHECK VALVE [0G485989] & Up |
6 | |
| 14 | 426585 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | |
| 15 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
14 | |
| 16 | 8159234 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | |
| 17 | 82446180 |
ВИНТ (M10 x 80) SCREW (M10 x 80) |
8 | |
| 18 | 67296 |
ШТИФТ PIN |
3 | superseded |
| 19 | 825367A1 |
СТАКАН В СБОРЕ (INCLUDES 6 CARRIERS) (13 Tooth Splines) [0G129222] THRU [0G437999] CARRIER ASSEMBLY (INCLUDES 6 CARRIERS) (13 Tooth Splines) [0G129222] THRU [0G437999] |
1 | discontinued |
| 2 | 903509 |
ШПИЛЬКА (M10 x 1.5 x 64) STUD (M10 x 1.5 x 64) |
4 | |
| 20 | 42657A3 |
ОБРАТНЫЙ КЛАПАН (13 Tooth Splines) [0G129222] THRU [0G437999] CHECK VALVE (13 Tooth Splines) [0G129222] THRU [0G437999] |
6 | |
| 21 | 850309 |
ПРОБКА [0G438000] & Up PLUG [0G438000] & Up |
6 | superseded |
| 22 | 68727 |
ФИТИНГ (0.250-18), 90 градусов – латунь (Included with Reference #26) [0G129222] & Up FITTING (.250-18) 90 Degree - Brass (Included with Reference #26) [0G129222] & Up |
1 | superseded |
| 22 | 8167811 |
КОЛЕНЧАТЫЙ (45 DEGREES) [0G129221] & Below ELBOW (45 DEGREES) [0G129221] & Below |
1 | |
| 23 | 8217621 |
УКАЗАТЕЛЬ РАСПРЕДЕЛИТЕЛЬНЫХ ФАЗ TIMING POINTER |
1 | discontinued |
| 24 | 82130012 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
1 | |
| 25 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | superseded |
| 26 | 826544A1 |
КОМПЛЕКТ ТРУБОПРОВОДА [0G129222] & Up TUBING KIT [0G129222] & Up |
1 | discontinued |
| 27 | 81493034 |
ТРУБОПРОВОД (9-1/4 IN.) [0G129221] & Below TUBING (9-1/4 IN.) [0G129221] & Below |
1 | superseded |
| 28 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (22-1/2 IN.) TUBING (20.00 Feet Bulk) (22-1/2 IN.) |
1 | superseded |
| 29 | 45175 |
ШАЙБА (0.406 x 0.750 x 0.104) WASHER (.406 x .750 x .104) |
10 | superseded |
| 3 | 8154431 |
ШПИЛЬКА (M10 x 1.5 x 155) STUD (M10 x 1.5 x 155) |
6 | |
| 30 | 400266 |
ГАЙКА (M10) NUT (M10) |
10 | superseded |
| 31 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (4 IN.) [0G437999] & Below TUBING (20.00 Feet Bulk) (4 IN.) [0G437999] & Below |
1 | superseded |
| 31 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (3-3/4 IN.) [0G438000] & Up TUBING (20.00 Feet Bulk) (3-3/4 IN.) [0G438000] & Up |
1 | superseded |
| 32 | 821556 |
ФИКСАТОР Обратный клапан RETAINER Check Valve |
2 | discontinued |
| 33 | 48408 |
ВИНТ (№10-16 x 0.500) SCREW (#10-16 x .500) |
2 | |
| 34 | 8243561 |
ФИТИНГ FITTING |
6 | |
| 35 | 8256751 |
КРОНШТЕЙН (SEAPRO/MARATHON) [0G129222] & Up BRACKET (SEAPRO/MARATHON) [0G129222] & Up |
1 | discontinued |
| 35 | 822283 |
КРОНШТЕЙН [0G129221] & Below BRACKET [0G129221] & Below |
1 | discontinued |
| 36 | 82130012 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
1 | |
| 37 | 8211051 |
КРОНШТЕЙН Генератор BRACKET Alternator |
1 | |
| 38 | 81893450 |
ВИНТ (M8 x 50) SCREW (M8 x 50) |
2 | |
| 39 | 8212251 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 4 | 328021 |
ПРОБКА Труба (0.125-27) PLUG Pipe (.125-27) |
1 | superseded |
| 40 | 82130012 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
2 | |
| 41 | 822486 |
КРОНШТЕЙН Направляющая BRACKET Guide |
1 | discontinued |
| 42 | 821909 |
ДАТЧИК SENSOR |
1 | |
| 43 | 82104510 |
ВИНТ (M5 x 10) SCREW (M5 x 10) |
1 | |
| 44 | 818574 |
УПЛОТНЕНИЕ SEAL |
2 | |
| 45 | 818573 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
6 | |
| 46 | 812851A3 |
ГОЛОВКА ЦИЛИНДРА (SEAPRO/MARATHON) CYLINDER HEAD (SEAPRO/MARATHON) |
2 | superseded |
| 46 | 812851A2 |
ГОЛОВКА ЦИЛИНДРА CYLINDER HEAD |
2 | discontinued |
| 47 | 833072 |
ТЕРМОСТАТ 62° Цельсия (143° Фаренгейта) [0G438000] & Up THERMOSTAT 62° Celsius (143° Fahrenheit) [0G438000] & Up |
2 | superseded |
| 47 | 75692 |
ТЕРМОСТАТ (143 DEGREES) [0G437999] & Below THERMOSTAT (143 DEGREES) [0G437999] & Below |
2 | |
| 48 | 62386 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 49 | 19801A1 |
КРЫШКА ТЕРМОСТАТА USE WITH 45 DEGREE ELBOW THERMOSTAT COVER USE WITH 45 DEGREE ELBOW |
2 | |
| 49 | 198012 |
КРЫШКА Термостат USE WITH 90 DEGREE ELBOW COVER Thermostat USE WITH 90 DEGREE ELBOW |
2 | superseded |
| 5 | 36382 |
ФИТИНГ (0.250-18 x 0.62), латунь (SEAPRO/MARATHON) FITTING (.250-18 x .62) Brass (SEAPRO/MARATHON) |
1 | |
| 50 | 8167811 |
КОЛЕНЧАТЫЙ (45 DEGREES) USE WITH 45 DEGREE ELBOW ELBOW (45 DEGREES) USE WITH 45 DEGREE ELBOW |
2 | |
| 50 | 68727 |
ФИТИНГ (0.250-18), 90 градусов – латунь (90 DEGREES) USE WITH 90 DEGREE ELBOW FITTING (.250-18) 90 Degree - Brass (90 DEGREES) USE WITH 90 DEGREE ELBOW |
2 | superseded |
| 51 | 77653112 |
РУКАВ (Общая длина 59.00") (19 IN.)(20-1/2 IN.) USE WITH 45 DEGREE ELBOW HOSE (59.00 Inches Bulk) (19 IN.)(20-1/2 IN.) USE WITH 45 DEGREE ELBOW |
2 | superseded |
| 51 | 77653112 |
РУКАВ (Общая длина 59.00") (20 IN.)(21-1/2 IN.) USE WITH 90 DEGREE ELBOW HOSE (59.00 Inches Bulk) (20 IN.)(21-1/2 IN.) USE WITH 90 DEGREE ELBOW |
2 | superseded |
| 52 | 82446090 |
ВИНТ (M8 x 90) SCREW (M8 x 90) |
4 | |
| 53 | 82446050 |
ВИНТ (M8 x 50) SCREW (M8 x 50) |
36 | superseded |
| 54 | 13536A11 |
ДАТЧИК В СБОРЕ Температура SEAPRO/MARATHON [0G217420] & Up SENSOR ASSEMBLY Temperature SEAPRO/MARATHON [0G217420] & Up |
1 | superseded |
| 54 | 13536A2 |
ДАТЧИК В СБОРЕ [0G217419] & Below SENSOR ASSEMBLY [0G217419] & Below |
1 | superseded |
| 55 | 88807A42 |
КАБЕЛЬ В СБОРЕ (USE WHERE APPLICABLE) SEAPRO/MARATHON [0G217420] & Up CABLE ASSEMBLY (USE WHERE APPLICABLE) SEAPRO/MARATHON [0G217420] & Up |
1 | discontinued |
| 55 | 88807A37 |
КАБЕЛЬ В СБОРЕ [0G217419] & Below CABLE ASSEMBLY [0G217419] & Below |
1 | discontinued |
| 56 | 828523 |
ФИКСАТОР Датчик DESIGN I RETAINER Sensor DESIGN I |
1 | discontinued |
| 57 | 828552 |
ВИНТ (0.375-16 x 0.500) DESIGN I SCREW (.375-16 x .500) DESIGN I |
1 | |
| 58 | 137151 |
ФИКСАТОР DESIGN II RETAINER DESIGN II |
1 | |
| 59 | 81893412 |
ВИНТ (M8 x 12) DESIGN II SCREW (M8 x 12) DESIGN II |
1 | |
| 6 | 8248572 |
ОТРАЖАТЕЛЬ Вода [0G438000] & Up DEFLECTOR Water [0G438000] & Up |
4 | superseded |
| 60 | 9787A3 |
ТОРЦЕВАЯ КРЫШКА В СБОРЕ Нижняя часть SEE SERVICE BULLETIN 95-4 [0G303045] & Below END CAP ASSEMBLY Lower SEE SERVICE BULLETIN 95-4 [0G303045] & Below |
1 | superseded |
| 60 | 9787A4 |
ТОРЦЕВАЯ КРЫШКА В СБОРЕ [0G303046] & Up END CAP ASSEMBLY [0G303046] & Up |
1 | |
| 61 | 62700 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (3.237 x 0.103) O-RING (3.237 x .103) |
1 | |
| 62 | 8185711 |
УПЛОТНЕНИЕ Масло SEE SERVICE BULLETIN 95-4 [0G303045] & Below SEAL Oil SEE SERVICE BULLETIN 95-4 [0G303045] & Below |
2 | discontinued |
| 62 | 830898 |
УПЛОТНЕНИЕ Масло [0G303046] & Up SEAL Oil [0G303046] & Up |
2 | superseded |
| 63 | 815449 |
УПЛОТНЕНИЕ Масло SEE SERVICE BULLETIN 95-4 [0G303045] & Below SEAL Oil SEE SERVICE BULLETIN 95-4 [0G303045] & Below |
1 | superseded |
| 64 | 82130020 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
4 | |
| 65 | 434531 |
ПРОБКА SEAPRO/MARATHON PLUG SEAPRO/MARATHON |
1 | |
| 66 | 62705 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО SEAPRO/MARATHON O-RING SEAPRO/MARATHON |
1 | superseded |
| 67 | 82104520 |
ВИНТ (M5 x 20) (M5 X 20) SEAPRO/MARATHON SCREW (M5 x 20) (M5 X 20) SEAPRO/MARATHON |
2 | |
| 68 | 8261211 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 69 | 48408 |
ВИНТ (№10-16 x 0.500) SCREW (#10-16 x .500) |
1 | |
| 7 | 43278 |
ФИТИНГ FITTING |
1 | superseded |
| 70 | 82130012 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
2 | |
| 71 | 8266241 |
ЗАЖИМ CLAMP |
1 | |
| 8 | 8245021 |
СОЕДИНИТЕЛЬ CONNECTOR |
6 | |
| 9 | 821583 |
ШТИФТ PIN |
2 | superseded |
