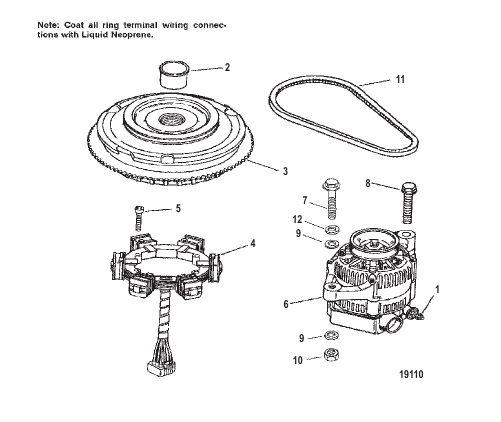

FLYWHEEL/STATOR
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8268336 |
ГАЙКА (M6) NUT (M6) |
1 | superseded |
| 10 | 400266 |
ГАЙКА (M10) DESIGN II NUT (M10) DESIGN II |
1 | superseded |
| 11 | 497561 |
КЛИНОВОЙ РЕМЕНЬ V BELT |
1 | superseded |
| 12 | 17457 |
ШАЙБА WASHER |
1 | discontinued |
| 2 | 45907 |
ПРОБКА Желтый PLUG Yellow |
1 | |
| 3 | 821033A2 |
МАХОВИК FLYWHEEL |
1 | superseded |
| 4 | 821935A3 |
СТАТОР [0G129221] & Below STATOR [0G129221] & Below |
1 | discontinued |
| 4 | 821935A5 |
СТАТОР (SeaPro/Marathon) [0G129222] & Up STATOR (SeaPro/Marathon) [0G129222] & Up |
1 | |
| 5 | 82494830 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
4 | |
| 6 | 821663 |
ГЕНЕРАТОР DESIGN I ALTERNATOR DESIGN I |
1 | superseded |
| 6 | 821663A1 |
ГЕНЕРАТОР DESIGN II ALTERNATOR DESIGN II |
1 | discontinued |
| 7 | 82446155 |
ВИНТ (M10 x 55) DESIGN II SCREW (M10 x 55) DESIGN II |
1 | |
| 7/8 | 82130140 |
ВИНТ (M10 x 40) (M10 X 40) DESIGN I SCREW (M10 x 40) (M10 X 40) DESIGN I |
2 | |
| 8 | 82130140 |
ВИНТ (M10 x 40) (M10 X 40) DESIGN II SCREW (M10 x 40) (M10 X 40) DESIGN II |
1 | |
| 9 | 796431 |
ШАЙБА DESIGN II WASHER DESIGN II |
2 |
