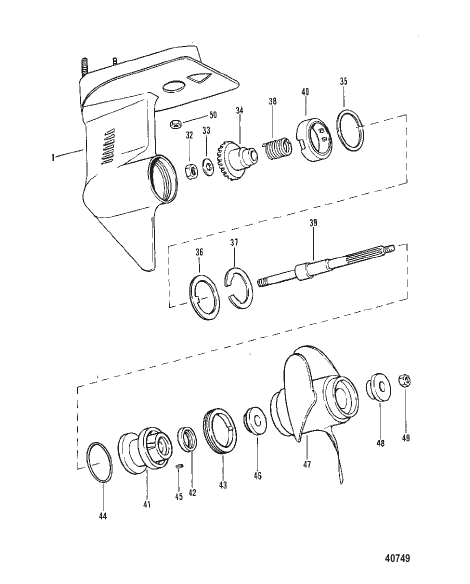

| # | Part Number | Description | Qty | Status |
|---|
| - |
7811A22 |
GEAR HOUSING ASSEMBLY Complete (SHORT SHAFT)
|
1 |
disc.
|
| - |
7811A23 |
GEAR HOUSING ASSEMBLY Complete (LONG SHAFT)
|
1 |
disc.
|
| - |
98540A83 |
GASKET SET
|
1 |
disc.
|
| 1 |
7811A9 |
GEAR HOUSING ASSEMBLY (BASIC)
|
1 |
disc.
|
| 32 |
20696 |
NUT PROPELLER SHAFT
|
1 |
disc.
|
| 33 |
73672 |
WASHER PROPELLER SHAFT
|
1 |
disc.
|
| 34 |
90795 |
GEAR Drive
|
1 |
superseded
|
| 35 |
79603 |
WASHER SPECIAL - PROPELLER SHAFT
|
1 |
disc.
|
| 36 |
79602A1 |
SHIM SET PROPELLER SHAFT (.002-3-5-10-20)
|
AR |
disc.
|
| 37 |
79601 |
RING Retaining
|
1 |
disc.
|
| 38 |
91813 |
SPRING CLUTCH
|
1 |
disc.
|
| 39 |
93358 |
PROPELLER SHAFT
|
1 |
disc.
|
| 40 |
77424 |
SPACER PROPELER SHAFT
|
1 |
disc.
|
| 41 |
99210A1 |
CARRIER ASSEMBLY Bearing
|
1 |
disc.
|
| 42 |
98309 |
SEAL Oil
|
1 |
disc.
|
| 43 |
75812 |
COVER GEAR HOUSING
|
1 |
disc.
|
| 44 |
68935 |
O-RING (1.799 x .103) BEARING CARRIER
|
1 |
|
| 45 |
32003 |
KEY BEARING CARRIER
|
1 |
disc.
|
| 46 |
70588 |
THRUST HUB FORWARD
|
1 |
disc.
|
| 47 |
93357A10 |
PROPELLER ASSEMBLY
|
1 |
disc.
|
| 48 |
93356 |
THRUST HUB AFT
|
1 |
disc.
|
| 49 |
35814 |
NUT (.312-24) Stainless Steel NUT
|
1 |
superseded
|
| 50 |
35814 |
NUT (.312-24) Stainless Steel DRIVESHAFT HOUSING STUD
|
1 |
superseded
|
