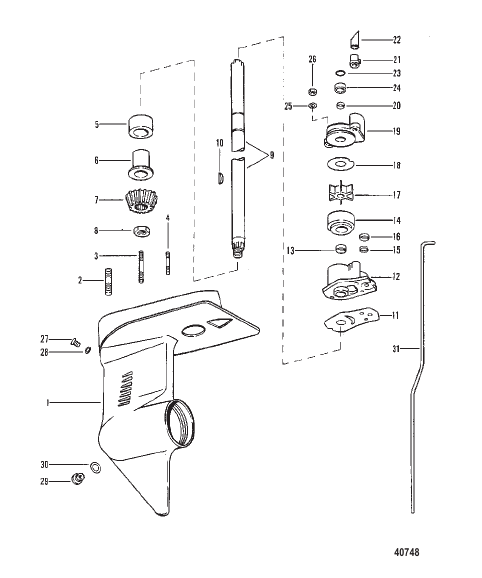

| # | Part Number | Description | Qty | Status |
|---|
| - |
7811A22 |
GEAR HOUSING ASSEMBLY Complete (SHORT SHAFT)
|
1 |
disc.
|
| - |
7811A23 |
GEAR HOUSING ASSEMBLY Complete (LONG SHAFT)
|
1 |
disc.
|
| - |
90844A2 |
REPAIR KIT Water Pump
|
1 |
disc.
|
| - |
71140A1 |
SEAL KIT Gear Housing
|
1 |
disc.
|
| 1 |
7811A9 |
GEAR HOUSING ASSEMBLY (BASIC)
|
1 |
disc.
|
| 10 |
56655 |
KEY IMPELLER DRIVE
|
1 |
superseded
|
| 11 |
68939 |
GASKET WATER PUMP - LOWER
|
1 |
disc.
|
| 12 |
90844A1 |
HOUSING ASSEMBLY Water Pump
|
1 |
disc.
|
| 13 |
96063 |
SEAL Oil WATER PUMP
|
1 |
superseded
|
| 14 |
70977 |
INSERT WATER PUMP
|
1 |
superseded
|
| 15 |
56681 |
WASHER (.203 x .500 x .032) WATER PUMP
|
1 |
superseded
|
| 16 |
74138 |
O-RING WATER PUMP
|
1 |
disc.
|
| 17 |
89980 |
IMPELLER
|
1 |
|
| 18 |
68955 |
FACE PLATE WATER PUMP
|
1 |
disc.
|
| 19 |
95965A2 |
COVER ASSEMBLY Water Pump
|
1 |
disc.
|
| 2 |
68927 |
STUD GEAR HOUSING (2-1/8") (SHORT SHAFT)
|
1 |
disc.
|
| 2 |
75321 |
STUD GEAR HOUSING (7-1/4") (LONG SHAFT)
|
1 |
disc.
|
| 20 |
30913 |
SEAL Oil WATER PUMP COVER
|
1 |
|
| 21 |
36558 |
SEAL WATER TUBE
|
1 |
|
| 22 |
31792 |
SLEEVE WATER TUBE GUIDE
|
1 |
superseded
|
| 23 |
62704 |
O-RING (.362 x .103) DRIVESHAFT
|
1 |
|
| 24 |
30526 |
RING RUBBER - DRIVESHAFT
|
1 |
|
| 25 |
30164 |
WASHER (.192 x .375 x .0312) Stainless Steel WATER PUMP STUDS
|
3 |
|
| 26 |
45812 |
NUT (#10-32) Stainless Steel WATER PUMP STUDS
|
3 |
superseded
|
| 27 |
28653 |
SCREW (#10-32 x 0.25) VENT - GEAR HOUSING
|
1 |
|
| 28 |
20262 |
WASHER VENT SCREW
|
1 |
superseded
|
| 29 |
79953 |
SCREW (.375-16 x .250) GREASE FILLER
|
1 |
superseded
|
| 3 |
68928 |
STUD WATER PUMP (2-1/8")
|
2 |
disc.
|
| 30 |
20260 |
WASHER GREASE FILLER SCREW
|
1 |
superseded
|
| 31 |
72418 |
SHIFT SHAFT (SHORT SHAFT)
|
1 |
superseded
|
| 31 |
75307 |
SHIFT SHAFT (LONG SHAFT)
|
1 |
disc.
|
| 4 |
70741 |
STUD WATER PUMP (1-1/8")
|
1 |
disc.
|
| 5 |
77428 |
BEARING GEAR HOUSING
|
1 |
disc.
|
| 6 |
90770 |
BUSHING FLANGED - GEAR HOUSING
|
1 |
disc.
|
| 7 |
90796 |
GEAR Pinion
|
1 |
disc.
|
| 8 |
20922 |
NUT PINION GEAR
|
1 |
disc.
|
| 9 |
87617 |
DRIVESHAFT (SHORT SHAFT)
|
1 |
disc.
|
| 9 |
87663 |
DRIVESHAFT (LONG SHAFT)
|
1 |
disc.
|
