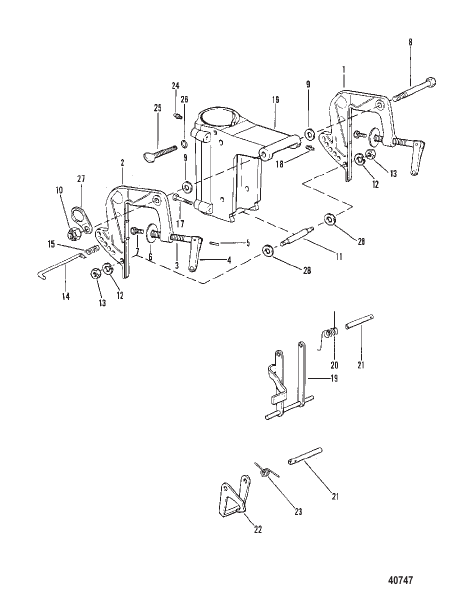

CLAMP AND SWIVEL BRACKET
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 7291A1 |
КРОНШТЕЙН ФИКСАТОРА (PORT) CLAMP BRACKET (PORT) |
1 | discontinued |
| 10 | 34863 |
ГАЙКА (.375-24) CLAMP BRACKET SCREW NUT (.375-24) CLAMP BRACKET SCREW |
1 | superseded |
| 11 | 68925 |
ШПИЛЬКА CLAMP BRACKET STUD CLAMP BRACKET |
1 | discontinued |
| 12 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь CLAMP BRACKET STUD LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD |
2 | |
| 13 | 29598 |
ГАЙКА (0.250-28), нержавеющая сталь CLAMP BRACKET STUD NUT (.250-28) Stainless Steel CLAMP BRACKET STUD |
2 | |
| 14 | 68929A2 |
ПАЛЕЦ В СБОРЕ Наклон PIN ASSEMBLY Tilt |
1 | discontinued |
| 15 | 62143 |
ПРУЖИНА TILT PIN SPRING TILT PIN |
1 | discontinued |
| 16 | 7400A2 |
ПОВОРОТНЫЙ КРОНШТЕЙН В СБОРЕ SWIVEL BRACKET ASSEMBLY |
1 | discontinued |
| 17 | 69067 |
ВИНТ (0.250-20 x 1.375) SWIVEL BRACKET SCREW (.250-20 x 1.375) SWIVEL BRACKET |
4 | |
| 18 | 74036 |
ФИТИНГ Смазка SWIVEL BRACKET FITTING Grease SWIVEL BRACKET |
1 | superseded |
| 19 | 76110A1 |
РЫЧАГ В СБОРЕ Наклон LEVER ASSEMBLY Tilt |
1 | discontinued |
| 2 | 7289A1 |
КРОНШТЕЙН ФИКСАТОРА (STARBOARD) CLAMP BRACKET (STARBOARD) |
1 | discontinued |
| 20 | 68932 |
ПРУЖИНА TORSION - PORT SPRING TORSION - PORT |
1 | discontinued |
| 21 | 68968 |
ШТОК REVERSE LOCK ROD REVERSE LOCK |
2 | discontinued |
| 22 | 68972 |
РЫЧАГ REVERSE LOCK LEVER REVERSE LOCK |
1 | discontinued |
| 23 | 73124 |
ПРУЖИНА TORSION - STARBOARD SPRING TORSION - STARBOARD |
1 | discontinued |
| 24 | 74036 |
ФИТИНГ Смазка FITTING Grease |
2 | superseded |
| 25 | 79793A1 |
ВИНТ В СБОРЕ Регулировка SCREW ASSEBMLY Adjustment |
1 | discontinued |
| 26 | 20385 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.239 x 0.070) ADJUSTMENT SCREW O-RING (.239 x .070) ADJUSTMENT SCREW |
1 | |
| 27 | 30954 |
ЗАЖИМ SAFETY CHAIN CLIP SAFETY CHAIN |
1 | superseded |
| 28 | 37998 |
ШАЙБА CLAMP BRACKET STUD WASHER CLAMP BRACKET STUD |
2 | |
| 3 | 77190A4 |
ВИНТ С НАКАТАННОЙ ГОЛОВКОЙ В СБОРЕ THUMB SCREW ASSEMBLY |
2 | discontinued |
| 4 | 78971 |
РУКОЯТКА THUMB SCREW HANDLE THUMB SCREW |
2 | discontinued |
| 5 | 78970 |
ШТИФТ Желоб THUMB SCREW PIN Groove THUMB SCREW |
2 | discontinued |
| 6 | 73719 |
ШАЙБА THUMB SCREW WASHER THUMB SCREW |
2 | discontinued |
| 7 | 76804 |
ВИНТ THUMB SCREW WASHER SCREW THUMB SCREW WASHER |
2 | superseded |
| 8 | 96917 |
ВИНТ CLAMP BRACKET SCREW CLAMP BRACKET |
1 | discontinued |
| 9 | 34931 |
ШАЙБА (0.406 x 0.734 x 0.063), нержавеющая сталь CLAMP BRACKET SCREW WASHER (.406 x .734 x .063) Stainless Steel CLAMP BRACKET SCREW |
2 |
