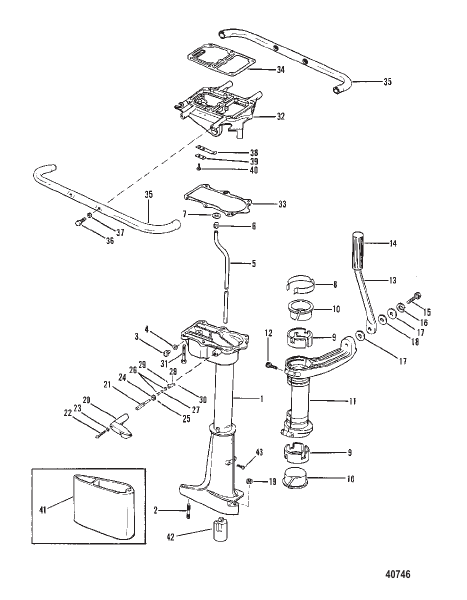

| # | Part Number | Description | Qty | Status |
|---|
| - |
98540A83 |
GASKET SET
|
1 |
disc.
|
| 1 |
8526A1 |
HOUSING ASSEMBLY Driveshaft
|
1 |
disc.
|
| 10 |
74308 |
BUSHING RUBBER MOUNT
|
2 |
disc.
|
| 11 |
98168A1 |
BRACKET ASSEMBLY STEERING ARM
|
1 |
disc.
|
| 12 |
75840 |
SCREW (#10-24 x .880) STEERING ARM BRACKET
|
4 |
|
| 13 |
98288 |
HANDLE STEERING
|
1 |
disc.
|
| 14 |
87668 |
GRIP STEERING HANDLE
|
1 |
disc.
|
| 15 |
98292 |
SCREW STEERING HANDLE TO BRACKET
|
1 |
disc.
|
| 16 |
98289 |
WASHER STEERING HANDLE SCREW
|
1 |
disc.
|
| 17 |
98290 |
WASHER STEERING HANDLE SCREW
|
2 |
disc.
|
| 18 |
98291 |
WASHER STEERING HANDLE SCREW
|
1 |
disc.
|
| 19 |
35814 |
NUT (.312-24) Stainless Steel GEAR HOUSING STUD
|
1 |
superseded
|
| 2 |
68927 |
STUD DRIVESHAFT HOUSING (SHORT SHAFT)
|
1 |
disc.
|
| 2 |
75321 |
STUD DRIVESHAFT HOUSING (LONG SHAFT)
|
1 |
disc.
|
| 20 |
86055 |
HANDLE SHIFT
|
1 |
superseded
|
| 21 |
86056A1 |
SHAFT SHIFT
|
1 |
disc.
|
| 22 |
69560 |
SCREW (.190-32 x 1.250) SHIFT HANDLE TO SHAFT
|
1 |
|
| 23 |
26996 |
LOCKWASHER (#10) Stainless Steel SHIFT HANDLE SCREW
|
1 |
|
| 24 |
66414 |
CAM SHIFT DETENT
|
1 |
disc.
|
| 25 |
25905 |
PIN CAM TO SHIFT SHAFT
|
1 |
disc.
|
| 26 |
26856 |
BUSHING SHIFT SHAFT
|
2 |
|
| 27 |
20415 |
O-RING SHIFT SHAFT
|
1 |
superseded
|
| 28 |
72733 |
ARM SHIFT
|
1 |
disc.
|
| 29 |
72734 |
SET SCREW (#10-32 x .310)
|
1 |
|
| 3 |
79953 |
SCREW (.375-16 x .250) GREASE FILLER
|
1 |
superseded
|
| 30 |
21071 |
COTTER PIN SHIFT SHAFT
|
1 |
superseded
|
| 31 |
69067 |
SCREW (.250-20 x 1.375) DRIVESHAFT HOUSING TO POWERHEAD
|
6 |
|
| 32 |
98319 |
PLATE ADAPTOR
|
1 |
disc.
|
| 33 |
41631 |
GASKET PLATE
|
1 |
disc.
|
| 34 |
98541 |
GASKET POWERHEAD
|
1 |
superseded
|
| 35 |
87664 |
HANDLE CARRING
|
2 |
disc.
|
| 36 |
28635 |
SCREW (.250-20 x .620) Stainless Steel HANDLE TO ADAPTOR PALTE
|
4 |
|
| 37 |
21249 |
WASHER HANDLE SCREW
|
4 |
|
| 38 |
39627 |
SPRING DETENT
|
1 |
|
| 39 |
39601 |
PLATE DETENT SPRING
|
1 |
disc.
|
| 4 |
20260 |
WASHER GREASE FILLER SCREW
|
1 |
superseded
|
| 40 |
25764 |
SCREW (.190-32 x .50) DETENT SPRING
|
2 |
|
| 41 |
75311 |
ADAPTER DRIVESHAFT HOUSING (5") (LONG SHAFT)
|
1 |
superseded
|
| 42 |
94909 |
BLOCK Bearing DRIVESHAFT (LONG SHAFT)
|
1 |
disc.
|
| 43 |
69570 |
SCREW (#10-16 x .750) SUPPORT BLOCK (LONG SHAFT)
|
2 |
|
| 5 |
88996 |
TUBE Water (SHORT SHAFT)
|
1 |
disc.
|
| 5 |
88997 |
TUBE Water (LONG SHAFT)
|
1 |
disc.
|
| 6 |
36556 |
SEAL (.500 Inch Outside Diameter) WATER TUBE
|
1 |
|
| 7 |
86214 |
BEARING WATER TUBE SEAL
|
1 |
superseded
|
| 8 |
79791 |
CLAMP CO-PILOT
|
1 |
disc.
|
| 9 |
88669 |
MOUNT RUBBER - DRIVESHAFT HOUSING
|
2 |
disc.
|
