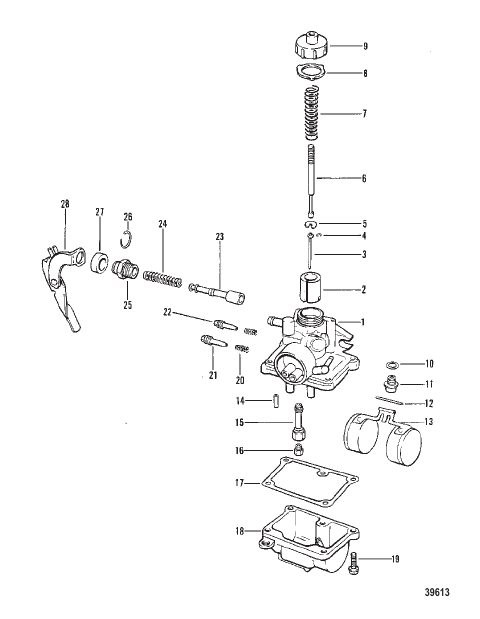

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
7568 |
CARBURETOR
|
1 |
disc.
|
| 10 |
7767 |
GASKET INLET NEEDLE
|
1 |
disc.
|
| 11 |
7768 |
NEEDLE AND SEAT Inlet
|
1 |
|
| 12 |
7769 |
PIN FLOAT
|
1 |
disc.
|
| 13 |
7762 |
FLOAT
|
1 |
disc.
|
| 14 |
7766 |
PILOT JET (#15)
|
1 |
disc.
|
| 15 |
7771 |
NEEDLE JET
|
1 |
disc.
|
| 16 |
7773 |
MAIN JET (#150)
|
1 |
disc.
|
| 16 |
9201 |
MAIN JET (#140)
|
OPT. |
disc.
|
| 16 |
9202 |
MAIN JET (#130)
|
OPT. |
disc.
|
| 16 |
9203 |
MAIN JET (#120)
|
OPT. |
disc.
|
| 17 |
7763 |
GASKET FLOAT BOWL
|
1 |
disc.
|
| 18 |
N.S.S. |
Not Sold Separate FLOAT BOWL
|
1 |
|
| 19 |
7765 |
SCREW FLOAT BOWL
|
4 |
disc.
|
| 2 |
7759 |
VALVE Throttle
|
1 |
disc.
|
| 20 |
6158 |
SPRING ADJUSTING SCREW
|
2 |
disc.
|
| 21 |
7750 |
SCREW ADJUSTING - LOW SPEED
|
1 |
disc.
|
| 22 |
7761 |
SCREW ADJUSTING - IDLE SPEED
|
1 |
disc.
|
| 23 |
7751 |
PLUNGER
|
1 |
disc.
|
| 24 |
7752 |
SPRING PLUNGER
|
1 |
disc.
|
| 25 |
7753 |
CAP PLUNGER
|
1 |
disc.
|
| 26 |
7754 |
CLIP PLUNGER CAP
|
1 |
disc.
|
| 27 |
7755 |
CAP
|
1 |
disc.
|
| 28 |
7764 |
LEVER
|
1 |
disc.
|
| 3 |
7772 |
JET NEEDLE
|
1 |
disc.
|
| 4 |
7770 |
E RING NEEDLE JET
|
1 |
disc.
|
| 5 |
7774 |
RETAINER
|
1 |
disc.
|
| 6 |
7760 |
ROD
|
1 |
disc.
|
| 7 |
7758 |
SPRING ROD
|
1 |
disc.
|
| 8 |
7757 |
GASKET COVER
|
1 |
disc.
|
| 9 |
7756 |
COVER MIXING CHAMBER
|
1 |
disc.
|
