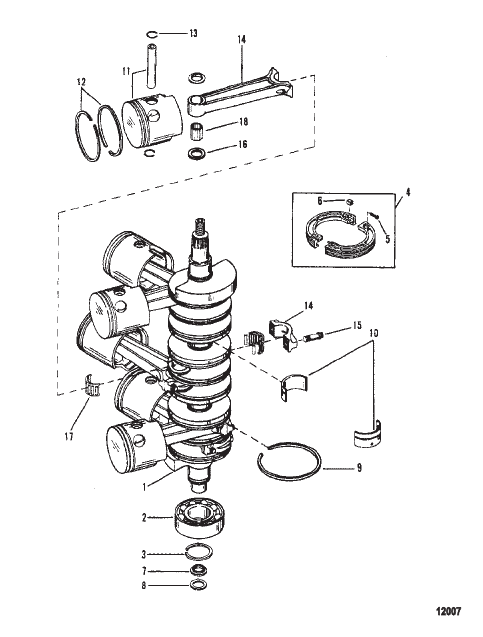

Crankshaft Pistons And Connecting Rods
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 815791A92 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель GASKET SET Engine |
1 | discontinued |
| 1 | 9536A4 |
КОЛЕНЧАТЫЙ ВАЛ В СБОРЕ CRANKSHAFT ASSEMBLY |
1 | superseded |
| 10 | 16756A6 |
КОМПЛЕКТ ПОДШИПНИКОВ Crankshaft BEARING KIT Crankshaft |
2 | |
| 11 | 9738A7 |
ПОРШЕНЬ В СБОРЕ Starboard - Standard [0G052594] & Below PISTON ASSEMBLY Starboard - Standard [0G052594] & Below |
AR | superseded |
| 11 | 9738A8 |
ПОРШЕНЬ В СБОРЕ Starboard (.015 O.S.) [0G052594] & Below PISTON ASSEMBLY Starboard (.015 O.S.) [0G052594] & Below |
AR | superseded |
| 11 | 9737A7 |
ПОРШЕНЬ В СБОРЕ Port - Standard [0G052594] & Below PISTON ASSEMBLY Port - Standard [0G052594] & Below |
3 | superseded |
| 11 | 9737A8 |
ПОРШЕНЬ В СБОРЕ Port (.015 O.S.) [0G052594] & Below PISTON ASSEMBLY Port (.015 O.S.) [0G052594] & Below |
AR | superseded |
| 11 | 9738A9 |
ПОРШЕНЬ В СБОРЕ Стандартн. Starboard - Standard [0G052595] & Up PISTON ASSEMBLY Standard Starboard - Standard [0G052595] & Up |
3 | superseded |
| 11 | 9738A10 |
ПОРШЕНЬ В СБОРЕ Большой размер 0.015 Starboard (.015 O.S.) [0G052595] & Up PISTON ASSEMBLY .015 Oversize Starboard (.015 O.S.) [0G052595] & Up |
AR | superseded |
| 11 | 9737A9 |
ПОРШЕНЬ В СБОРЕ Стандартн. Port Standard [0G052595] & Up PISTON ASSEMBLY Standard Port Standard [0G052595] & Up |
3 | superseded |
| 11 | 9737A10 |
ПОРШЕНЬ В СБОРЕ Большой размер 0.015 Port (.015 O.S.) [0G052595] & Up PISTON ASSEMBLY .015 Oversize Port (.015 O.S.) [0G052595] & Up |
AR | discontinued |
| 12 | 815515A12 |
НАБОР КОЛЕЦ Поршень Standard (1.50 MM) [0G052594] & Below RING SET Piston Standard (1.50 MM) [0G052594] & Below |
1 | discontinued |
| 12 | 815268A4 |
НАБОР КОЛЕЦ Поршень (.015 O.S.) (1.50 MM) [0G052594] & Below RING SET Piston (.015 O.S.) (1.50 MM) [0G052594] & Below |
AR | discontinued |
| 12 | 822321A12 |
КОМПЛЕКТ КОЛЬЦА Поршень – стандартный Standard (2MM) [0G052595] & Up RING KIT Piston - Standard Standard (2MM) [0G052595] & Up |
1 | |
| 12 | 822321A1 |
КОМПЛЕКТ КОЛЬЦА Поршень – большой размер 0.015 (.015 O.S.) (2MM) [0G052595] & Up RING KIT Piston - .015 Oversize (.015 O.S.) (2MM) [0G052595] & Up |
2 | |
| 13 | 52035 |
КОЛЬЦО Замок [0G052594] & Below RING Lock [0G052594] & Below |
12 | superseded |
| 13 | 52035 |
КОЛЬЦО Замок [0G052595] & Up RING Lock [0G052595] & Up |
12 | superseded |
| 14 | 818141A2 |
КОМПЛЕКТ ШАТУНА CONNECTING ROD KIT |
6 | superseded |
| 15 | 763491 |
ВИНТ (0.312-24 x 0.875) Connecting Rod SCREW (.312-24 x .875) Connecting Rod |
12 | |
| 16 | 812876 |
ШАЙБА Needle Locating WASHER Needle Locating |
12 | superseded |
| 17 | 17514A2 |
КОМПЛЕКТ ПОДШИПНИКОВ BEARING KIT |
6 | superseded |
| 18 | 822553 |
ПОДШИПНИК Игла Piston End BEARING Needle Piston End |
174 | superseded |
| 2 | 67923 |
ПОДШИПНИК Шарик Lower BEARING Ball Lower |
1 | superseded |
| 3 | 67446 |
КОЛЬЦО RING |
1 | |
| 4 | 14513A2 |
КОМПЛЕКТ СЕГМЕНТА РЕДУКТОРА Привод GEAR SEGMENT KIT Drive |
1 | superseded |
| 5 | 813073 |
ВИНТ (№6-32 x 0.620), с головкой под торцевой ключ SCREW (#6-32 x .620) Socket Head |
2 | discontinued |
| 6 | 813134 |
ГАЙКА (№6-32), специальный NUT (#6-32) Special |
2 | discontinued |
| 7 | 54196A6 |
СТАКАН В СБОРЕ CARRIER ASSEMBLY |
1 | |
| 8 | 65800 |
УПАКОВКА PACKING |
1 | |
| 9 | 67377 |
КОЛЬЦО Уплотнение Sealing - Crankshaft RING Sealing Sealing - Crankshaft |
7 | superseded |
