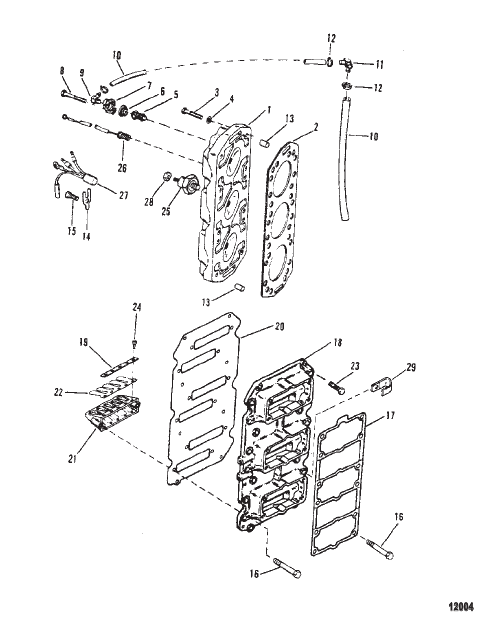

Reed Block And Cylinder Head
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 815791A92 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель GASKET SET Engine |
1 | discontinued |
| - | 815791A92 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель GASKET SET Engine |
1 | discontinued |
| 1 | 184888 |
ГОЛОВКА ЦИЛИНДРА (Casting #18488C3) (150) [0D262673] & Below CYLINDER HEAD (Casting #18488C3) (150) [0D262673] & Below |
2 | superseded |
| 1 | 184888 |
ГОЛОВКА ЦИЛИНДРА (Casting #18488C3) (175) [0D262673] & Below CYLINDER HEAD (Casting #18488C3) (175) [0D262673] & Below |
2 | superseded |
| 1 | 184888 |
ГОЛОВКА ЦИЛИНДРА (Casting #18488C3) (200) [0D262673] & Below CYLINDER HEAD (Casting #18488C3) (200) [0D262673] & Below |
2 | superseded |
| 1 | 184889 |
ГОЛОВКА (Casting #18488C2) (200XL/CXL) [0D246107] THRU [0G052594] HEAD (Casting #18488C2) (200XL/CXL) [0D246107] THRU [0G052594] |
2 | superseded |
| 1 | 18488F1 |
ГОЛОВКА ЦИЛИНДРА (Casting #18488C4) (150/175) [D262674] & Up CYLINDER HEAD (Casting #18488C4) (150/175) [D262674] & Up |
2 | superseded |
| 1 | 18488F1 |
ГОЛОВКА ЦИЛИНДРА (Cast #18488C4) (200) [D26674] THRU [G052594] CYLINDER HEAD (Cast #18488C4) (200) [D26674] THRU [G052594] |
2 | superseded |
| 1 | 18488F2 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ (Casting #18488C5) (200) [G052595] & Up CYLINDER HEAD ASSEMBLY (Casting #18488C5) (200) [G052595] & Up |
2 | discontinued |
| 10 | 7765377 |
РУКАВ (Общая длина 24.500") HOSE (24.500 Inches Bulk) |
1 | superseded |
| 11 | 68728 |
ФИТИНГ FITTING |
1 | discontinued |
| 12 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | superseded |
| 13 | 63779 |
ШТИФТ Штифт (0.250 x 0.625) PIN Dowel (.250 x .625) |
4 | |
| 14 | 137151 |
ФИКСАТОР RETAINER |
2 | |
| 15 | 98257 |
ВИНТ (0.312-18 x 0.500) SCREW (.312-18 x .500) |
2 | |
| 16 | 55715 |
ВИНТ (0.250-20 x 0.880) SCREW (.250-20 x .880) |
6 | |
| 16 | 90197 |
ВИНТ (0.250-20 x 1.125) SCREW (.250-20 x 1.125) |
6 | discontinued |
| 17 | 167371 |
ПРОКЛАДКА GASKET |
1 | |
| 18 | 17735A2 |
ПЕРЕХОДНАЯ ПЛАСТИНА В СБОРЕ ADAPTER PLATE ASSEMBLY |
1 | discontinued |
| 19 | 961832 |
ЗАЖИМ Пластинчатый клапан CLAMP Reed |
12 | |
| 2 | 8228441 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 20 | 146972 |
ПРОКЛАДКА GASKET |
1 | |
| 21 | 75953 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ REED BLOCK |
6 | |
| 22 | 75362A1 |
ПЛАСТИНЫ В СБОРЕ REED ASSEMBLY |
6 | discontinued |
| 23 | 28668 |
ВИНТ (0.250-20 x 0.875), нержавеющая сталь SCREW (.250-20 x .875) Stainless Steel |
8 | |
| 24 | 823588 |
ВИНТ (№8-32 x .250) SCREW (#8-32 x .250) |
60 | |
| 25 | 825164A1 |
ДАТЧИК В СБОРЕ Детонация Black (200) [D239647] & Below SENSOR ASSEMBLY Detonation Black (200) [D239647] & Below |
1 | discontinued |
| 25 | 825164 |
ДАТЧИК Детонация Gray (200) [D239648] THRU [G146482] SENSOR Detonation Gray (200) [D239648] THRU [G146482] |
1 | discontinued |
| 25 | 826858 |
ДАТЧИК Детонационное сгорание (200) [G146483] & Up SENSOR Knock (200) [G146483] & Up |
1 | |
| 26 | 97465 |
ДАТЧИК Температура Starboard SENDER Temperature Starboard |
1 | |
| 27 | 13536A6 |
ДАТЧИК В СБОРЕ Температура Port (4-Wire) SENSOR ASSEMBLY Temperature Port (4-Wire) |
1 | |
| 28 | 45076 |
ГАЙКА (№10-32), латунь NUT (#10-32) Brass |
1 | |
| 29 | 55098 |
J-ЗАЖИМ J CLIP |
1 | superseded |
| 3 | 98534 |
ВИНТ (0.375-16 x 2.30) (QTY. OF 24 ON 150/175) SCREW (.375-16 x 2.30) (QTY. OF 24 ON 150/175) |
23 | discontinued |
| 3 | 13450 |
ВИНТ (0.375-16 x 2.30) (200) [G146482] & Below SCREW (.375-16 x 2.30) (200) [G146482] & Below |
1 | discontinued |
| 3 | 827426 |
ВИНТ (200) [G146483] & Up SCREW (200) [G146483] & Up |
1 | discontinued |
| 4 | 25909 |
ШАЙБА (0.406 x 0.812 x 0.065) Use Where Applicable WASHER (.406 x .812 x .065) Use Where Applicable |
24 | |
| 5 | 75692 |
ТЕРМОСТАТ THERMOSTAT |
2 | |
| 6 | 62386 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 7 | 90390A1 |
КОМПЛЕКТ КРЫШЕК COVER KIT |
2 | |
| 8 | 35386 |
ВИНТ (0.312-18 x 1.00) SCREW (.312-18 x 1.00) |
4 | |
| 9 | 68727 |
ФИТИНГ (0.250-18), 90 градусов – латунь FITTING (.250-18) 90 Degree - Brass |
1 | superseded |
