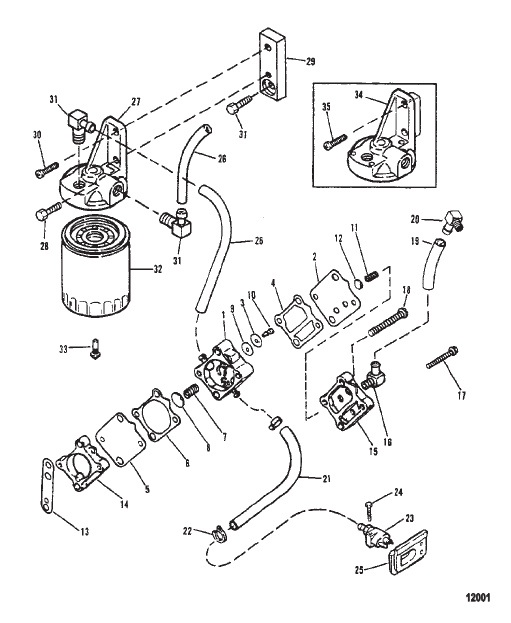

Fuel Pump And Fuel Filter
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 815791A92 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель GASKET SET Engine |
1 | discontinued |
| - | 42990A10 |
КОМПЛЕКТ ДИАФРАГМЫ DIAPHAGM KIT |
superseded | |
| 1 | 14360A43 |
НАСОС В СБОРЕ Топливо PUMP ASSEMBLY Fuel |
1 | superseded |
| 10 | NA |
NOT AVAILABLE Retainer NOT AVAILABLE Retainer |
2 | |
| 11 | NA |
NOT AVAILABLE Spring NOT AVAILABLE Spring |
1 | |
| 12 | NA |
NOT AVAILABLE Cap NOT AVAILABLE Cap |
1 | |
| 13 | 987691 |
ПРОКЛАДКА Base GASKET Base |
1 | superseded |
| 14 | 144303 |
БАЗА Fuel Pump BASE Fuel Pump |
1 | |
| 15 | 987752 |
ПЛАСТИНА Fuel Pump PLATE Fuel Pump |
1 | |
| 16 | 99664 |
КОЛЕНЧАТЫЙ ELBOW |
1 | superseded |
| 17 | 82104540 |
ВИНТ (M5 x 40) Fuel Pump SCREW (M5 x 40) Fuel Pump |
2 | |
| 18 | 82130050 |
ВИНТ (M6 x 50) Fuel Pump To Crankcase SCREW (M6 x 50) Fuel Pump To Crankcase |
2 | |
| 19 | 9912980 |
РУКАВ Pulse HOSE Pulse |
1 | superseded |
| 2 | 42990A10 |
КОМПЛЕКТ ДИАФРАГМЫ DIAPHAGM KIT |
1 | superseded |
| 20 | 99664 |
КОЛЕНЧАТЫЙ ELBOW |
1 | superseded |
| 21 | 9912980 |
РУКАВ HOSE |
1 | superseded |
| 22 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") Fuel Tubing TIE STRAP (8.00 Inches) Fuel Tubing |
AR | superseded |
| 23 | 816856A3 |
СОЕДИНИТЕЛЬ В СБОРЕ Топливо – пластмассовый CONNECTOR ASSEMBLY Fuel - Plastic |
1 | superseded |
| 24 | 69067 |
ВИНТ (0.250-20 x 1.375) SCREW (.250-20 x 1.375) |
1 | |
| 25 | 812782 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 26 | 1350382 |
ТРУБОПРОВОД (Общая длина 30.00") TUBING (30.00 Inches Bulk) |
2 | superseded |
| 27 | 13170A1 |
БАЗА Fuel Filter (Design I) BASE Fuel Filter (Design I) |
1 | superseded |
| 28 | 28668 |
ВИНТ (0.250-20 x 0.875), нержавеющая сталь Fuel Filter Base (Design I) SCREW (.250-20 x .875) Stainless Steel Fuel Filter Base (Design I) |
2 | |
| 29 | NLA |
Не поставляется Bracket (Order 13170A3) (Design I) No Longer Available Bracket (Order 13170A3) (Design I) |
1 | |
| 3 | NA |
NOT AVAILABLE Rubber NOT AVAILABLE Rubber |
2 | |
| 30 | 69067 |
ВИНТ (0.250-20 x 1.375) (Design I) SCREW (.250-20 x 1.375) (Design I) |
1 | |
| 31 | 13607 |
ФИТИНГ Base (Included With Ref. #34) FITTING Base (Included With Ref. #34) |
2 | superseded |
| 32 | 18458A1 |
ФИЛЬТР В СБОРЕ Топливо FILTER ASSEMBLY Fuel |
1 | superseded |
| 33 | 14570 |
ПРОБНИК Water Sensing PROBE Water Sensing |
1 | |
| 34 | 13170A3 |
БАЗА (Design II) BASE (Design II) |
1 | discontinued |
| 35 | 45561 |
ВИНТ (0.250-20 x 1.12) (Design II) SCREW (.250-20 x 1.12) (Design II) |
2 | superseded |
| 4 | NA |
NOT AVAILABLE Gasket, Boost NOT AVAILABLE Gasket, Boost |
1 | |
| 5 | NA |
NOT AVAILABLE Diaphragm NOT AVAILABLE Diaphragm |
2 | |
| 6 | NA |
NOT AVAILABLE Gasket, Pulse NOT AVAILABLE Gasket, Pulse |
1 | |
| 7 | NA |
NOT AVAILABLE Spring NOT AVAILABLE Spring |
1 | |
| 8 | NA |
NOT AVAILABLE Cap NOT AVAILABLE Cap |
1 | |
| 9 | NA |
NOT AVAILABLE Check Valve NOT AVAILABLE Check Valve |
2 |
