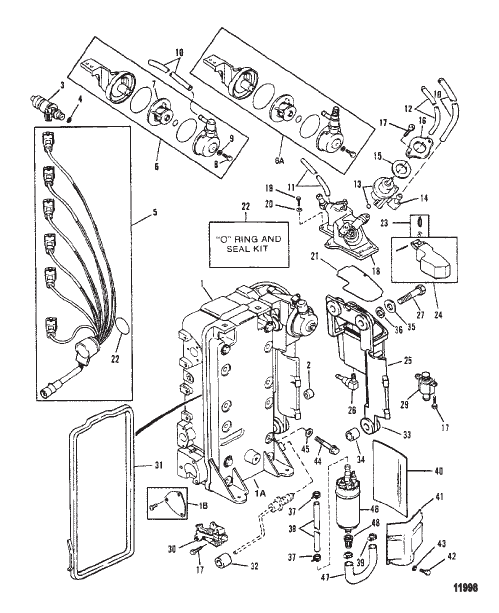

Fuel Management System (Breakdown)
Parts (50)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 14817A19 |
УЗЕЛ УПРАВЛЕНИЯ Топливо MANAGEMENT ASSEMBLY Fuel |
1 | discontinued |
| 1 | 827693 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ THROTTLE BODY |
1 | discontinued |
| 10 | 1350382 |
ТРУБОПРОВОД (Общая длина 30.00") (.50" O.D.) TUBING (30.00 Inches Bulk) (.50" O.D.) |
1 | superseded |
| 11 | 9912688 |
ТРУБОПРОВОД (Общая длина 36.00") (.125" I.D.) TUBING (36.00 Inches Bulk) (.125" I.D.) |
1 | |
| 12 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (.0937" I.D.) TUBING (20.00 Feet Bulk) (.0937" I.D.) |
1 | superseded |
| 13 | 15027 |
РЕГУЛЯТОР Pressure REGULATOR Pressure |
1 | |
| 14 | 814233 |
КОМПЛЕКТ КОЛЕНЧАТОГО ПАТРУБКА ELBOW KIT |
1 | discontinued |
| 15 | 18791 |
ПРОКЛАДКА Pressure Regulator GASKET Pressure Regulator |
1 | discontinued |
| 16 | 814012 |
ПЛАСТИНА Pressure Regulator PLATE Pressure Regulator |
1 | discontinued |
| 17 | 814076 |
ВИНТ SCREW |
AR | discontinued |
| 18 | 814010 |
КОМПЛЕКТ КРЫШЕК COVER KIT |
1 | discontinued |
| 19 | 4001987 |
ВИНТ (M4 x 16) Cover To Seperator SCREW (M4 x 16) Cover To Seperator |
6 | |
| 1A | 827692 |
КРЫШКА COVER |
1 | discontinued |
| 1B | 827696 |
КОМПЛЕКТ ФИКСАТОРОВ RETAINER KIT |
1 | discontinued |
| 2 | 67748 |
РОЛИК CAM ROLLER CAM |
1 | |
| 20 | 26995 |
СТОПОРНАЯ ШАЙБА (№8), нержавеющая сталь Cover Screw LOCKWASHER (#8) Stainless Steel Cover Screw |
6 | |
| 21 | 18790 |
УПЛОТНЕНИЕ Vapor Seperator SEAL Vapor Seperator |
1 | |
| 22 | 15029 |
КОМПЛЕКТ УПЛОТНИТЕЛЬНЫХ КОЛЕЦ И УПЛОТНИТЕЛЕЙ O-RING AND SEAL KIT |
1 | discontinued |
| 23 | 15446 |
КОМПЛЕКТ КЛАПАНА Поплавок VALVE KIT Float |
1 | |
| 24 | 15445 |
КОМПЕКТ ПОПЛАВКА FLOAT KIT |
1 | discontinued |
| 25 | 814011 |
КОМПЛЕКТ КОРПУСА BODY KIT |
1 | discontinued |
| 26 | 42481 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | superseded |
| 27 | 4000332 |
ВИНТ (M6 x 35) Separator SCREW (M6 x 35) Separator |
3 | |
| 29 | 18241 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | discontinued |
| 3 | 18715 |
ФОРСУНКА Топливо INJECTOR Fuel |
6 | superseded |
| 30 | 814077 |
КЛАПАН Выключение VALVE Shut-Off |
1 | discontinued |
| 31 | 18792 |
УПЛОТНЕНИЕ Injector Manifold SEAL Injector Manifold |
1 | |
| 32 | 19275 |
ПРОСТАВКА SPACER |
3 | discontinued |
| 34 | 814913 |
ПРОСТАВКА SPACER |
3 | discontinued |
| 35 | 35280 |
ШАЙБА (0.255 x 0.620 x 0.030), нержавеющая сталь Large WASHER (.255 x .620 x .030) Stainless Steel Large |
3 | |
| 36 | 69057 |
ШАЙБА (0.281 x 0.734 x 0.063) Small WASHER (.281 x .734 x .063) Small |
3 | |
| 37 | 13791 |
ЗАЖИМ (15.7) Hose CLAMP (15.7) Hose |
2 | superseded |
| 38 | 1350382 |
ТРУБОПРОВОД (Общая длина 30.00") (Cut to 1.75 Inch Length) TUBING (30.00 Inches Bulk) (Cut to 1.75 Inch Length) |
1 | superseded |
| 39 | F698772 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 4 | 17422 |
ФИЛЬТР INJECTOR FILTER INJECTOR |
1 | |
| 40 | 14639 |
ПОКРЫТИЕ Fuel Pump BLANKET Fuel Pump |
1 | discontinued |
| 41 | 14640T |
КРЫШКА Fuel Pump COVER Fuel Pump |
1 | discontinued |
| 42 | 32228 |
ВИНТ (№10-32 x 0.625) SCREW (#10-32 x .625) |
4 | |
| 43 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
4 | |
| 44 | 90088 |
ВИНТ (0.250-20 x 4) SCREW (.250-20 x 4) |
12 | superseded |
| 45 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
10 | superseded |
| 46 | 14307A1 |
НАСОС В СБОРЕ Топливо PUMP ASSEMBLY Fuel |
1 | superseded |
| 47 | 146332 |
РУКАВ HOSE |
1 | |
| 48 | 823501 |
ФИЛЬТР Топливо FILTER Fuel |
1 | superseded |
| 5 | 15443 |
КОМПЛЕКТ ПРОВОДОВ HARNESS KIT |
1 | discontinued |
| 6 | 15442 |
КОМПЛЕКТ ФИЛЬТРА Топливо (Design I) FILTER KIT Fuel (Design I) |
1 | discontinued |
| 6A | 154421 |
КОМПЛЕКТ ФИЛЬТРА Топливо (Design II) FILTER KIT Fuel (Design II) |
1 | superseded |
| 7 | 150282 |
ФИЛЬТР Топливо FILTER Fuel |
1 | |
| 8 | 400034 |
ВИНТ (M5 x 14) Filter Cover SCREW (M5 x 14) Filter Cover |
1 | discontinued |
| 9 | 400255 |
СТОПОРНАЯ ШАЙБА (M5) Cover Screw LOCKWASHER (M5) Cover Screw |
1 |
