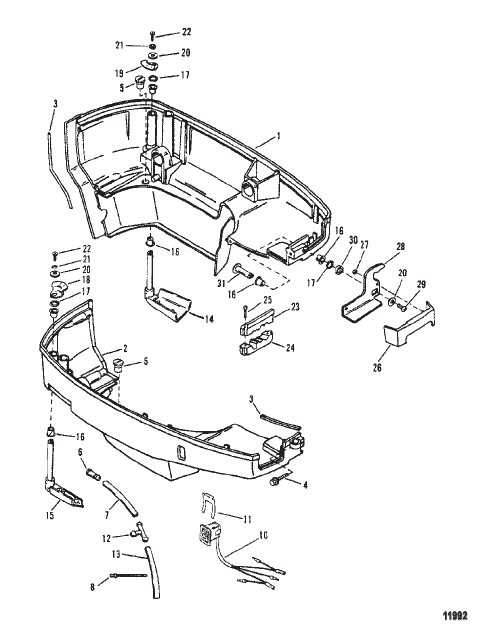

Bottom Cowl
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9744A16 |
НИЖНИЙ КОЖУХ В СБОРЕ Black (Port) BOTTOM COWL ASSEMBLY Black (Port) |
1 | discontinued |
| 1 | 9744A17 |
НИЖНИЙ КОЖУХ В СБОРЕ Серый (Port) BOTTOM COWL ASSEMBLY Gray (Port) |
1 | superseded |
| 1 | 9744A18 |
НИЖНИЙ КОЖУХ В СБОРЕ Tracker (Port) BOTTOM COWL ASSEMBLY Tracker (Port) |
1 | superseded |
| 10 | 18286A40 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ SWITCH ASSEMBLY |
1 | superseded |
| 11 | 8124431 |
ФИКСАТОР RETAINER |
1 | superseded |
| 12 | 815914 |
ТРОЙНИК Tell Tale T-FITTING Tell Tale |
1 | |
| 13 | 7765377 |
РУКАВ (Общая длина 24.500") HOSE (24.500 Inches Bulk) |
1 | superseded |
| 14 | 19648A3 |
РУКОЯТКА В СБОРЕ Black (Port) HANDLE ASSEMBLY Black (Port) |
1 | superseded |
| 14 | 19648A4 |
РУКОЯТКА В СБОРЕ Gray (Port) HANDLE ASSEMBLY Gray (Port) |
1 | superseded |
| 14 | 19648A7 |
РУКОЯТКА В СБОРЕ Tracker (Port) HANDLE ASSEMBLY Tracker (Port) |
1 | discontinued |
| 15 | 19647A3 |
РУКОЯТКА В СБОРЕ Black (Starboard) HANDLE ASSEMBLY Black (Starboard) |
1 | discontinued |
| 15 | 19647A4 |
РУКОЯТКА В СБОРЕ Gray (Starboard) HANDLE ASSEMBLY Gray (Starboard) |
1 | superseded |
| 15 | 19647A7 |
РУКОЯТКА В СБОРЕ Tracker (Starboard) HANDLE ASSEMBLY Tracker (Starboard) |
1 | discontinued |
| 16 | 65830 |
NYLINER NYLINER |
6 | |
| 17 | 99611 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
3 | |
| 18 | 19369 |
СТОПОР (Starboard) PAWL (Starboard) |
1 | discontinued |
| 19 | 19370 |
СТОПОР (Port) PAWL (Port) |
1 | discontinued |
| 2 | 9745A5 |
НИЖНИЙ КОЖУХ В СБОРЕ Black (Starboard) BOTTOM COWL ASSEMBLY Black (Starboard) |
1 | discontinued |
| 2 | 9745A6 |
НИЖНИЙ КОЖУХ В СБОРЕ Gray (Starboard) BOTTOM COWL ASSEMBLY Gray (Starboard) |
1 | discontinued |
| 2 | 9745A7 |
НИЖНИЙ КОЖУХ В СБОРЕ Tracker (Starboard) BOTTOM COWL ASSEMBLY Tracker (Starboard) |
1 | discontinued |
| 20 | 69057 |
ШАЙБА (0.281 x 0.734 x 0.063) WASHER (.281 x .734 x .063) |
3 | |
| 21 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
2 | |
| 22 | 73286 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
2 | |
| 23 | 19749 |
ЗАЖИМ Upper CLAMP Upper |
1 | discontinued |
| 24 | 197481 |
ЗАЖИМ Lower CLAMP Lower |
1 | discontinued |
| 25 | 92799 |
ВИНТ (№10-16 x 1.12) SCREW (#10-16 x 1.12) |
2 | |
| 26 | 18872A1 |
КРЫШКА В СБОРЕ Black COVER ASSEMBLY Black |
1 | discontinued |
| 26 | 18872A2 |
КРЫШКА В СБОРЕ Gray COVER ASSEMBLY Gray |
1 | discontinued |
| 26 | 18872A4 |
КРЫШКА В СБОРЕ Tracker COVER ASSEMBLY Tracker |
1 | discontinued |
| 27 | 8136921 |
КОНТРГАЙКА LOCKNUT |
2 | discontinued |
| 28 | 8130764 |
ПЕРЕДНЯЯ РУКОЯТКА FRONT HANDLE |
1 | |
| 29 | 181921 |
ВИНТ (0.250-20 x 0.875) SCREW (.250-20 x .875) |
1 | discontinued |
| 3 | 18701A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ Bottom Cowls SEAL KIT Bottom Cowls |
1 | discontinued |
| 30 | 19666 |
ВТУЛКА BUSHING |
1 | discontinued |
| 31 | 18727 |
ШТОК ROD |
1 | discontinued |
| 4 | 18699 |
ВИНТ (0.250-20 x 1.320) Cowl (Starboard) SCREW (.250-20 x 1.320) Cowl (Starboard) |
4 | |
| 5 | 817519A1 |
ОБРАТНЫЙ КЛАПАН В СБОРЕ Слив CHECK VALVE ASSEMBLY Drain |
2 | |
| 6 | 813613 |
ФИТИНГ Tell Tale FITTING Tell Tale |
1 | |
| 7 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") Tell Tale LINE (57.00 Inches Bulk) Tell Tale |
1 | superseded |
| 8 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | superseded |
