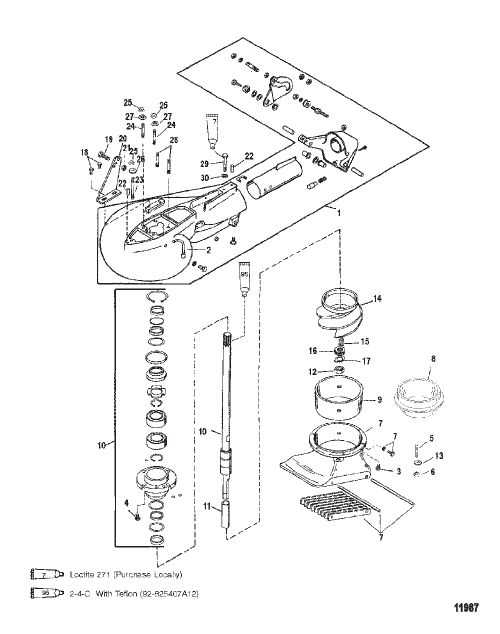

Jet Pump Assembly
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 801400150 |
ВОДОМЕТНЫЙ НАСОС (Black) [0G605661] & Below JET PUMP (Black) [0G605661] & Below |
1 | superseded |
| - | 801401150 |
ВОДОМЕТНЫЙ НАСОС (Gray) [0G605661] & Below JET PUMP (Gray) [0G605661] & Below |
1 | superseded |
| - | 855766150 |
ВОДОМЕТНЫЙ НАСОС (With Aluminum Impeller) [0G605662] & Up JET PUMP (With Aluminum Impeller) [0G605662] & Up |
1 | discontinued |
| - | 856143A2 |
ВОДОМЕТНЫЙ НАСОС В СБОРЕ (Jet 105 - With Stainless Steel Impeller) JET PUMP ASSEMBLY (Jet 105 - With Stainless Steel Impeller) |
1 | discontinued |
| - | 856143A3 |
ВОДОМЕТНЫЙ НАСОС В СБОРЕ (Jet 140 - With Stainless Steel Impeller) JET PUMP ASSEMBLY (Jet 140 - With Stainless Steel Impeller) |
1 | discontinued |
| 1 | 855767150 |
КОРПУС Насос [0G605662] & Up HOUSING Pump [0G605662] & Up |
1 | superseded |
| 1 | 801411150 |
КОРПУС Насос [0G605661] & Below HOUSING Pump [0G605661] & Below |
1 | discontinued |
| 10 | 855769150 |
ВАЛ Привод [0G605662] & Up SHAFT Drive [0G605662] & Up |
1 | superseded |
| 10 | 801413150 |
ВАЛ Привод [0G605661] & Below SHAFT Drive [0G605661] & Below |
1 | discontinued |
| 11 | 8271891 |
РУКАВ SLEEVE |
1 | |
| 12 | 8271901 |
ГАЙКА NUT |
1 | |
| 13 | 36001 |
ШАЙБА WASHER |
6 | |
| 14 | 855770150 |
КРЫЛЬЧАТКА (Aluminum) [0G605662] & Up IMPELLER (Aluminum) [0G605662] & Up |
1 | discontinued |
| 14 | 855708150 |
КРЫЛЬЧАТКА (Jet 105 - Stainless Steel) IMPELLER (Jet 105 - Stainless Steel) |
1 | superseded |
| 14 | 855708200 |
КРЫЛЬЧАТКА (Jet 140 - Stainless Steel) IMPELLER (Jet 140 - Stainless Steel) |
1 | superseded |
| 14 | 801414150 |
КРЫЛЬЧАТКА [0G605661] & Below IMPELLER [0G605661] & Below |
1 | superseded |
| 15 | 801405875 |
КЛЮЧ KEY |
1 | |
| 16 | 801404875 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА Крыльчатка SHIM Impeller |
8 | |
| 17 | 801403875 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 18 | 19923062 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
2 | |
| 19 | 60411 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
1 | |
| 2 | 827490 |
РУКАВ Смазка HOSE Lube |
1 | |
| 20 | 801410 |
КРОНШТЕЙН Опора кабеля BRACKET Cable Support |
1 | |
| 21 | 67980 |
ГАЙКА (0.312-18) NUT (.312-18) |
1 | superseded |
| 22 | 801407 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 23 | 786382 |
ШПИЛЬКА (0.437-14/0.437-20 x 3.120) STUD (.437-14/.437-20 x 3.120) |
1 | |
| 24 | 579203 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.060) STUD (.437-14/.437-20 x 2.060) |
2 | superseded |
| 25 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
3 | superseded |
| 26 | 48926 |
ШАЙБА WASHER |
1 | |
| 27 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь WASHER (.453 x .812 x .105) Stainless Steel |
2 | |
| 28 | 30667 |
ШПИЛЬКА (0.250-20/0.250-28 x 3.125) STUD (.250-20/.250-28 x 3.125) |
2 | superseded |
| 29 | 68299 |
ВИНТ (0.375-16 x 3.00), нержавеющая сталь SCREW (.375-16 x 3.00) Stainless Steel |
1 | |
| 3 | 848497 |
ВИНТ (0.312-18 x 1.00) [0G605661] & Below SCREW (.312-18 x 1.00) [0G605661] & Below |
6 | |
| 30 | 45175 |
ШАЙБА (0.406 x 0.750 x 0.104) WASHER (.406 x .750 x .104) |
1 | superseded |
| 4 | 19923088 |
ВИНТ (0.250-20 x 0.875) SCREW (.250-20 x .875) |
4 | |
| 4 | 848497 |
ВИНТ (0.312-18 x 1.00) SCREW (.312-18 x 1.00) |
4 | |
| 5 | 855840 |
ШПИЛЬКА (0.312-18 x 1.81) [0G605662] & Up STUD (.312-18 x 1.81) [0G605662] & Up |
6 | |
| 6 | 67980 |
ГАЙКА (0.312-18) NUT (.312-18) |
6 | superseded |
| 7 | 85576890 |
КОРПУС Впуск [0G605662] & Up HOUSING Intake [0G605662] & Up |
1 | |
| 7 | 80141290 |
КОРПУС Впуск [0G605661] & Below HOUSING Intake [0G605661] & Below |
1 | discontinued |
| 8 | 855771 |
ОТДЕЛКА [0G605662] & Up LINER [0G605662] & Up |
1 | |
| 9 | 8271883 |
ОТДЕЛКА [0G605661] & Below LINER [0G605661] & Below |
1 |
