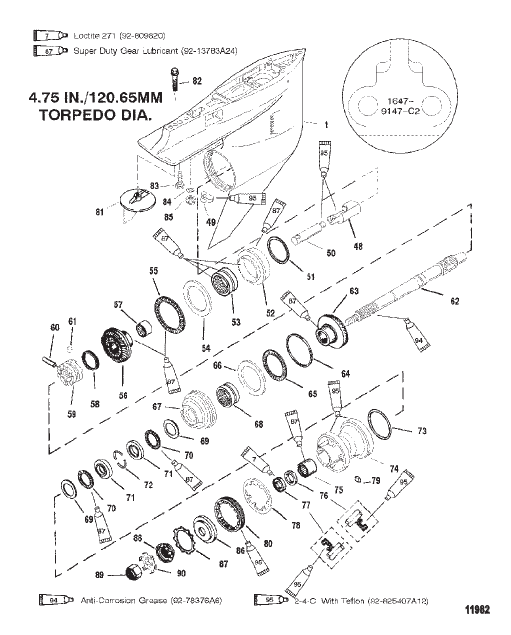

Gear Housing (Propshaft-Counter-S/N-0G438000 & Up)
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 89238A2 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| 1 | 9148A93 |
КАРТЕР РЕДУКТОРА В СБОРЕ (Basic - Black) GEAR HOUSING ASSEMBLY (Basic - Black) |
1 | superseded |
| 1 | 9148A94 |
КАРТЕР РЕДУКТОРА В СБОРЕ (Basic - Gray) GEAR HOUSING ASSEMBLY (Basic - Gray) |
1 | superseded |
| 65 | 815480 |
ПОДШИПНИК Упор BEARING Thrust |
1 | |
| 66 | 815481 |
УПОРНАЯ ШАЙБА THRUST WASHER |
1 | |
| 67 | 828831A1 |
АДАПТЕР В СБОРЕ Подшипник ADAPTER ASSEMBLY Bearing |
1 | superseded |
| 68 | 814653 |
БЛОК ПОДШИПНИКА Игольчатые ролики BEARING ASSEMBLY Needle Rollers |
1 | superseded |
| 69 | 18448 |
УПОРНАЯ ШАЙБА THRUST WASHER |
2 | |
| 70 | 15842 |
ПОДШИПНИК Упор BEARING Thrust |
2 | |
| 71 | 8182911 |
ГОНОЧНЫЙ Упор RACE Thrust |
2 | |
| 72 | 814605 |
КОНТРГАЙКА KEEPER |
2 | |
| 73 | 31534 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 74 | 818290A4 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | |
| 75 | 30956 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 76 | 14077 |
УПЛОТНЕНИЕ Масло Inside SEAL Oil Inside |
1 | |
| 77 | 76868 |
УПЛОТНЕНИЕ Outside SEAL Outside |
1 | superseded |
| 78 | 183231 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 79 | 30281 |
КЛЮЧ KEY |
1 | |
| 80 | 79448 |
ФИКСАТОР RETAINER |
1 | superseded |
| 81 | 316405 |
ТРАНЦЕВАЯ ПЛИТА TRIM TAB |
1 | superseded |
| 81 | 76214A5 |
КОМПЛЕКТ АНОДОВ (Tracker) ANODE KIT (Tracker) |
1 | superseded |
| 82 | 806327 |
ВИНТ (0.437-14 x 1.750) SCREW (.437-14 x 1.750) |
1 | superseded |
| 83 | 65210 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
1 | |
| 84 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь WASHER (.453 x .812 x .105) Stainless Steel |
2 | |
| 85 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
2 | superseded |
| 86 | 8354671 |
УПОРНАЯ ВТУЛКА (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) THRUST HUB (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) |
1 | superseded |
| 87 | 423511 |
СТОПОРНАЯ ШАЙБА Зубчатая (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) LOCKWASHER Toothed (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) |
1 | |
| 88 | 31211A2 |
ШАЙБА Шлицевый (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) WASHER Splined (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) |
1 | superseded |
| 89 | 52707A1 |
КОМПЛЕКТ ГАЙКИ ГРЕБНОГО ВИНТА (.750-16) (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) PROP NUT KIT (.750-16) (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) |
1 | superseded |
| 90 | 816629 |
ЛЕПЕСТКОВАЯ ШАЙБА (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) TAB WASHER (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) |
1 | superseded |
