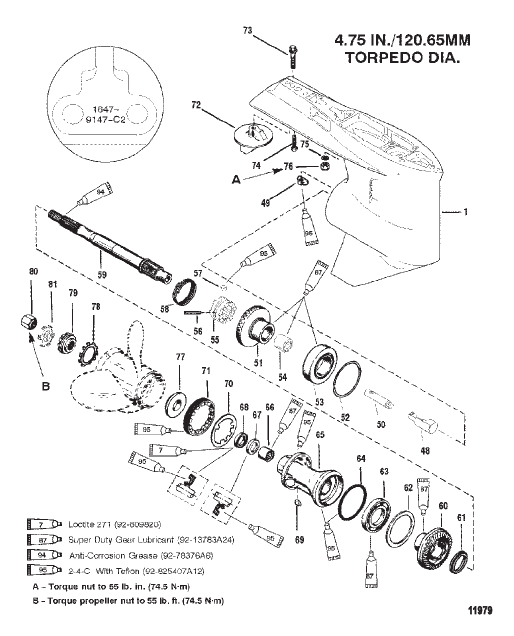

Gear Housing (Propshaft-Standard-S/N-0G438000 & Up)
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 815791A92 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель GASKET SET Engine |
1 | discontinued |
| - | 89238A2 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| 1 | 9148A93 |
КАРТЕР РЕДУКТОРА В СБОРЕ (Black) (Basic) GEAR HOUSING ASSEMBLY (Black) (Basic) |
1 | superseded |
| 1 | 9148A94 |
КАРТЕР РЕДУКТОРА В СБОРЕ (Gray) (Basic) GEAR HOUSING ASSEMBLY (Gray) (Basic) |
1 | superseded |
| 48 | 89594A1 |
ТОЛКАТЕЛЬ В СБОРЕ FOLLOWER ASSEMBLY |
1 | |
| 49 | 789562 |
ЭКСЦЕНТРИК ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ SHIFT CAM |
1 | |
| 50 | 828287 |
ШТОК ROD |
1 | |
| 51 | 828174A2 |
НАБОР ШЕСТЕРЕН (XR6/Magnum III/175/200) (1.87:1 - 15/28) GEAR SET (XR6/Magnum III/175/200) (1.87:1 - 15/28) |
1 | superseded |
| 51 | 828176A2 |
РЕДУКТОР В СБОРЕ Передняя (135/150) (2.0:1 - 14/28) GEAR ASSEMBLY Forward (135/150) (2.0:1 - 14/28) |
1 | superseded |
| 52 | 44491A1 |
НАБОР ПРОКЛАДОК (.006-7-9-10-20) SHIM SET (.006-7-9-10-20) |
AR | discontinued |
| 53 | 30894A1 |
НАБОР ПОДШИПНИКОВ Колпачок и конус BEARING SET Cup And Cone |
1 | |
| 54 | 30895 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 55 | 828288 |
СКОЛЬЗЯЩАЯ МУФТА SLIDING CLUTCH |
1 | superseded |
| 56 | 30632 |
ШТИФТ Разрез PIN Cross |
1 | superseded |
| 57 | 828356 |
ШТИФТ Фиксатор PIN Detent |
1 | |
| 58 | 30893 |
ПРУЖИНА SPRING |
1 | |
| 59 | 94148 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | |
| 60 | 828175A1 |
РЕДУКТОР В СБОРЕ Задняя передача – 15/28 (XR6/Magnum III/175/200) GEAR ASSEMBLY Reverse - 15/28 (XR6/Magnum III/175/200) |
1 | |
| 60 | 828177A1 |
РЕДУКТОР В СБОРЕ Задняя передача – 14/28 (135/150) GEAR ASSEMBLY Reverse - 14/28 (135/150) |
1 | |
| 61 | 824108 |
ПРОСТАВКА SPACER |
1 | |
| 62 | 681001 |
КОЛЬЦО Упор RING Thrust |
1 | |
| 63 | 88957 |
БЛОК ПОДШИПНИКА Шарик BEARING ASSEMBLY Ball |
1 | superseded |
| 64 | 31534 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 65 | 43567A1 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 66 | 30956 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 67 | 14077 |
УПЛОТНЕНИЕ Масло Inside SEAL Oil Inside |
1 | |
| 68 | 76868 |
УПЛОТНЕНИЕ Outside SEAL Outside |
1 | superseded |
| 69 | 30281 |
КЛЮЧ KEY |
1 | |
| 70 | 79447 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 71 | 79448 |
ФИКСАТОР RETAINER |
1 | superseded |
| 72 | 316405 |
ТРАНЦЕВАЯ ПЛИТА TRIM TAB |
1 | superseded |
| 72 | 76214A5 |
КОМПЛЕКТ АНОДОВ (Tracker) ANODE KIT (Tracker) |
1 | superseded |
| 73 | 806327 |
ВИНТ (0.437-14 x 1.750) SCREW (.437-14 x 1.750) |
1 | superseded |
| 74 | 65210 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
1 | |
| 75 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) WASHER (.453 x .812 x .105) Stainless Steel (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) |
2 | |
| 76 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) NUT (.437-20) Stainless Steel (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) |
2 | superseded |
| 77 | 8354671 |
УПОРНАЯ ВТУЛКА (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) THRUST HUB (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) |
1 | superseded |
| 78 | 423511 |
СТОПОРНАЯ ШАЙБА Зубчатая (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) LOCKWASHER Toothed (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) |
1 | |
| 79 | 31211A2 |
ШАЙБА Шлицевый (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) WASHER Splined (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) |
1 | superseded |
| 80 | 52707A1 |
КОМПЛЕКТ ГАЙКИ ГРЕБНОГО ВИНТА (.750-16) (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) PROP NUT KIT (.750-16) (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) |
1 | superseded |
| 81 | 816629 |
ЛЕПЕСТКОВАЯ ШАЙБА (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) TAB WASHER (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) |
1 | superseded |
