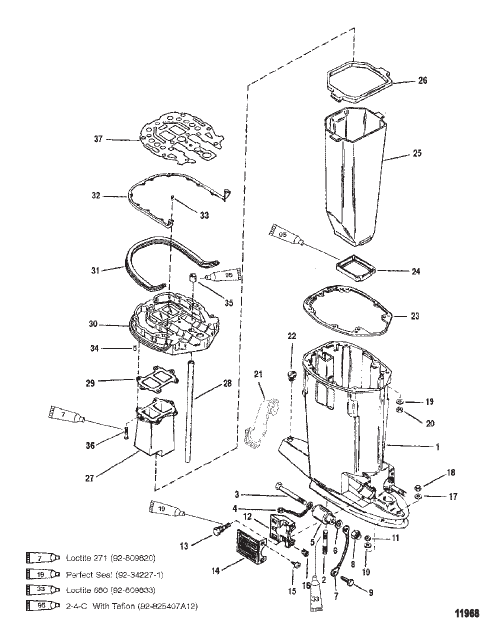

Drive Shaft Housing And Exhaust Tube
Parts (47)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 815791A92 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель GASKET SET Engine |
1 | discontinued |
| 1 | 8343A10 |
КОРПУС В СБОРЕ Карданный вал (Black, Long) HOUSING ASSEMBLY Driveshaft (Black, Long) |
1 | superseded |
| 1 | 8343A11 |
КОРПУС В СБОРЕ Карданный вал (Gray, Long) HOUSING ASSEMBLY Driveshaft (Gray, Long) |
1 | superseded |
| 1 | 813563A1 |
КОРПУС В СБОРЕ Карданный вал (Black X-Long) HOUSING ASSEMBLY Driveshaft (Black X-Long) |
1 | superseded |
| 1 | 813563A2 |
КОРПУС В СБОРЕ Карданный вал (Gray X-Long) HOUSING ASSEMBLY Driveshaft (Gray X-Long) |
1 | superseded |
| 1 | 8343A13 |
КОРПУС В СБОРЕ Карданный вал (Black - Jet) HOUSING ASSEMBLY Driveshaft (Black - Jet) |
1 | discontinued |
| 1 | 8343A14 |
КОРПУС В СБОРЕ Карданный вал (Gray - Jet) HOUSING ASSEMBLY Driveshaft (Gray - Jet) |
1 | discontinued |
| 10 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь WASHER (.453 x .812 x .105) Stainless Steel |
2 | |
| 11 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
2 | superseded |
| 12 | 67076 |
ЗАЖИМ CLAMP |
2 | superseded |
| 13 | 66727 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
4 | |
| 14 | 67077T |
КРЫШКА Черный (Black) COVER Black (Black) |
2 | superseded |
| 14 | 67077F1 |
КРЫШКА Серый (Gray) COVER Gray (Gray) |
2 | discontinued |
| 15 | 88417 |
ВИНТ (№12-24 x 0.620) SCREW (#12-24 x .620) |
4 | |
| 16 | 35521 |
ГАЙКА NUT |
4 | |
| 17 | 48926 |
ШАЙБА WASHER |
1 | |
| 18 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
1 | superseded |
| 19 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) WASHER (.406 x .734 x .063) |
4 | |
| 2 | 56295 |
ШПИЛЬКА (0.437 x 2.69) STUD (.437 x 2.69) |
2 | |
| 20 | 69254 |
ГАЙКА NUT |
4 | |
| 21 | 828212 |
ЧЕХОЛ Выхлоп холостого хода BOOT Idle Exhaust |
1 | superseded |
| 22 | 64649 |
ПРОБКА PLUG |
1 | |
| 23 | 991732 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 24 | 66350 |
УПЛОТНЕНИЕ Lower SEAL Lower |
1 | superseded |
| 25 | 18276 |
ТРУБА Выхлоп TUBE Exhaust |
1 | superseded |
| 26 | 177261 |
УПЛОТНЕНИЕ Upper SEAL Upper |
1 | superseded |
| 27 | 812834 |
УДЛИНИТЕЛЬ Выхлоп (135/175/XR6/Magnum III) EXTENSION Exhaust (135/175/XR6/Magnum III) |
1 | superseded |
| 27 | 41942F3 |
УДЛИНИТЕЛЬ Выхлоп (150/200) (Jet) EXTENSION Exhaust (150/200) (Jet) |
1 | superseded |
| 28 | 67295 |
ТРУБА Вода (LONG) (Jet) TUBE Water (LONG) (Jet) |
1 | superseded |
| 28 | 74729 |
ТРУБА (X-Long) TUBE (X-Long) |
1 | superseded |
| 29 | 78246 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 3 | 63474 |
ВИНТ (0.500-20 x 6.00) SCREW (.500-20 x 6.00) |
2 | superseded |
| 30 | 18233A3 |
ПЛАСТИНА В СБОРЕ PLATE ASSEMBLY |
1 | superseded |
| 31 | 8147012 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 32 | 68011 |
КРОНШТЕЙН BRACKET |
1 | |
| 33 | 812832 |
ВИНТ (№10-16 x 0.500) SCREW (#10-16 x .500) |
12 | superseded |
| 34 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
2 | |
| 35 | 38970 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 36 | 90192 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь SCREW (.250-20 x .750) Stainless Steel |
6 | |
| 37 | 183071 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 4 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | |
| 5 | 78249 |
КРЕПЛЕНИЕ (135/150/175 Long) (Jet) MOUNT (135/150/175 Long) (Jet) |
2 | discontinued |
| 5 | 77327 |
КРЕПЛЕНИЕ (All Other Models) MOUNT (All Other Models) |
2 | |
| 6 | 49339 |
ШАЙБА (0.8125) WASHER (.8125) |
2 | |
| 7 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | |
| 8 | 28040 |
ГАЙКА (.500-20) NUT (.500-20) |
2 | superseded |
| 9 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
1 |
