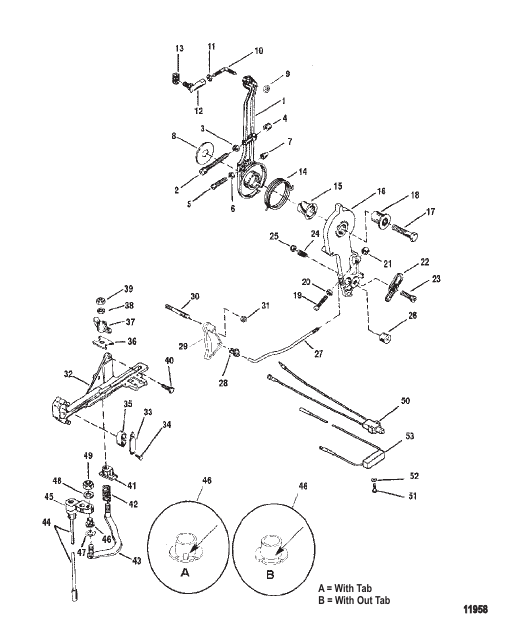

| # | Part Number | Description | Qty | Status |
|---|
| 32 |
814283A2 |
BRACKET ASSEMBLY
|
1 |
|
| 33 |
98889 |
LATCH
|
1 |
|
| 34 |
42975 |
DRIVE SCREW
|
2 |
|
| 35 |
39519 |
CUP
|
1 |
|
| 36 |
52100 |
WEAR PLATE
|
1 |
|
| 37 |
38279 |
LATCH
|
1 |
superseded
|
| 38 |
35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel
|
1 |
|
| 39 |
35045 |
NUT (.250-28)
|
1 |
superseded
|
| 40 |
53167 |
SCREW (.312-18 x .880)
|
3 |
superseded
|
| 41 |
814284 |
GUIDE BLOCK
|
1 |
|
| 42 |
20099 |
SPRING
|
1 |
|
| 43 |
67073A1 |
LINK ROD ASSEMBLY
|
1 |
|
| 44 |
79932A11 |
SHIFT SHAFT ASSEMBLY (Long) (Use With Reference #46; With Tab; See Bubble A)
|
1 |
superseded
|
| 44 |
79932A12 |
SHIFT SHAFT ASSEMBLY (X-Long) Use With Reference #46;With Tab; SSee Bubble A)
|
1 |
superseded
|
| 44 |
79932A16 |
SHIFT SHAFT ASSEMBLY (Long) (Use With Refference #46 Without Tab; See Bubble B)
|
1 |
|
| 44 |
79932A17 |
SHIFT SHAFT ASSEMBLY (X-Long) Use With Refference #46;Without Tab;See Bubble B)
|
1 |
|
| 45 |
NSS |
NOT SOLD SEPARATE Shift Lever (Upper) (Use With Refference #46; With Tab; See Bubble A)
|
1 |
|
| 45 |
NSS |
NOT SOLD SEPARATE Shift Shaft Lever (Upper) (Use With Refference #46;Without Tab;See Bubble B)
|
1 |
|
| 46 |
26600 |
BUSHING (Use With Refference #46; With Tab; See Bubble A)
|
1 |
disc.
|
| 46 |
26856 |
BUSHING (Use With Refference #46;Without Tab;See Bubble B)
|
1 |
|
| 47 |
29720 |
WAVE WASHER
|
1 |
|
| 48 |
35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel
|
1 |
|
| 49 |
35045 |
NUT (.250-28)
|
1 |
superseded
|
| 50 |
814281A1 |
IDLE STABILIZING SHIFT KIT (XR6/175 Magnum III)
|
1 |
disc.
|
| 51 |
77478 |
SCREW (#6-32 x .875) (XR6/175 Magnum III)
|
2 |
|
| 52 |
27882 |
WASHER (XR6/175 Magnum III)
|
2 |
|
| 53 |
17461A3 |
RESISTOR MODULE (XR6/175 Magnum III)
|
1 |
|
