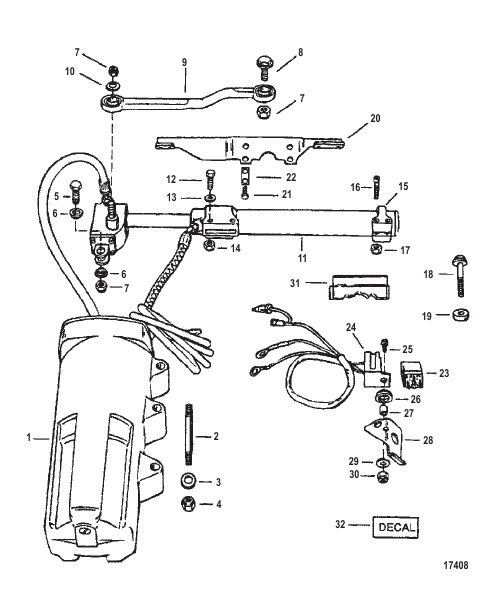

TRANSOM MOUNT POWER STEERING KIT
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 17443A11 |
КОМПЛЕКТ РУЛЕВОГО МЕХАНИЗМА С УСИЛИТЕЛЕМ POWER STEERING KIT |
1 | superseded |
| - | 811632 |
РЕМОНТНЫЙ КОМПЛЕКТ REPAIR KIT |
1 | superseded |
| 1 | 811290 |
АККУМУЛЯТОР ACCUMULATOR |
1 | discontinued |
| 10 | 68300 |
ШАЙБА (0.88 x 0.39 x 0.06) WASHER (..88 x .39 x .06) |
1 | discontinued |
| 11 | 8112891 |
РУЛЕВОЙ ПРИВОД ACTUATOR |
1 | superseded |
| 12 | 4000330 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | superseded |
| 13 | 43450 |
ШАЙБА WASHER |
2 | superseded |
| 14 | 8268336 |
ГАЙКА (M6) NUT (M6) |
2 | superseded |
| 15 | 811292 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 16 | 818182 |
ВИНТ SCREW |
2 | discontinued |
| 17 | 400263 |
ГАЙКА (M5) NUT (M5) |
2 | discontinued |
| 18 | 81742755 |
ВИНТ (M8 x 55) SCREW (M8 x 55) |
1 | |
| 19 | 66751 |
ПРОСТАВКА (0.250 x 0.390 x 0.630), нержавеющая сталь SPACER (.250 x .390 x .630) Stainless Steel |
1 | |
| 2 | 17772 |
ШПИЛЬКА STUD |
3 | discontinued |
| 20 | 811291 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 21 | 38601 |
ВИНТ (0.250-28 x 1.250) SCREW (.250-28 x 1.250) |
4 | |
| 22 | 88404 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
6 | |
| 23 | 18211 |
ПЕРЕКЛЮЧАТЕЛЬ РЕЛЕ RELAY SWITCH |
1 | discontinued |
| 24 | 18244A1 |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | discontinued |
| 25 | 18124 |
ВИНТ (№10-32 x 0.750) SCREW (#10-32 x .750) |
1 | discontinued |
| 26 | 90329 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 27 | 309772 |
ПРОСТАВКА SPACER |
1 | |
| 28 | 816994 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 29 | 42118 |
ШАЙБА WASHER |
1 | |
| 3 | 4002319 |
ШАЙБА WASHER |
3 | |
| 30 | 29488 |
ГАЙКА (№10-32) NUT (#10-32) |
1 | superseded |
| 31 | 197491 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 32 | 81563024 |
НАКЛЕЙКА DECAL |
1 | discontinued |
| 4 | 13914 |
ГАЙКА (M10) NUT (M10) |
3 | superseded |
| 5 | 94319 |
ВИНТ (0.375-24 x 1.5) SCREW (.375-24 x 1.5) |
1 | |
| 6 | 17405 |
ПРОСТАВКА SPACER |
2 | discontinued |
| 7 | 34863 |
ГАЙКА (.375-24) NUT (.375-24) |
3 | superseded |
| 8 | 14000 |
ВИНТ (0.375-24 x 1.25) SCREW (.375-24 x 1.25) |
1 | superseded |
| 9 | 92876A4 |
СТЕРЖЕНЬ ТЯГИ В СБОРЕ LINK ROD ASSEMBLY |
1 | discontinued |
