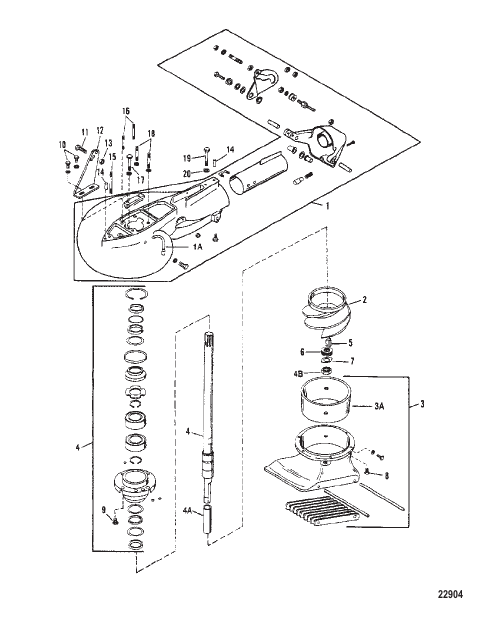

JET PUMP ASSEMBLY
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 801400150 |
ВОДОМЕТНЫЙ НАСОС (BLACK) JET PUMP (BLACK) |
1 | superseded |
| - | 801401150 |
ВОДОМЕТНЫЙ НАСОС (GRAY) JET PUMP (GRAY) |
1 | superseded |
| 1 | 801411150 |
КОРПУС Насос HOUSING Pump |
1 | discontinued |
| 10 | 19923062 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
2 | |
| 11 | 60411 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
1 | |
| 12 | 801410 |
КРОНШТЕЙН Опора кабеля BRACKET Cable Support |
1 | |
| 13 | 67980 |
ГАЙКА (0.312-18) NUT (.312-18) |
1 | superseded |
| 14 | 801407 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 15 | 78638 |
ШПИЛЬКА (0.438 x 3.12) STUD (.438 x 3.12) |
1 | superseded |
| 16 | 579201 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.060) STUD (.437-14/.437-20 x 2.060) |
2 | superseded |
| 17 | 69064 |
БОЛТ (0.312-18 x 2.750) BOLT (.312-18 x 2.750) |
1 | discontinued |
| 18 | 30667 |
ШПИЛЬКА (0.250-20/0.250-28 x 3.125) STUD (.250-20/.250-28 x 3.125) |
2 | superseded |
| 19 | 68299 |
ВИНТ (0.375-16 x 3.00), нержавеющая сталь SCREW (.375-16 x 3.00) Stainless Steel |
1 | |
| 1A | 827490 |
РУКАВ Смазка HOSE Lube |
1 | |
| 2 | 801414150 |
КРЫЛЬЧАТКА IMPELLER |
1 | superseded |
| 20 | 45175 |
ШАЙБА (0.406 x 0.750 x 0.104) WASHER (.406 x .750 x .104) |
1 | superseded |
| 3 | 80141290 |
КОРПУС Впуск HOUSING Intake |
1 | discontinued |
| 3A | 8271883 |
ОТДЕЛКА LINER |
1 | |
| 4 | 801413150 |
ВАЛ Привод SHAFT Drive |
1 | discontinued |
| 4A | 8271891 |
РУКАВ SLEEVE |
1 | |
| 4B | 8271901 |
ГАЙКА NUT |
1 | |
| 5 | 801405875 |
КЛЮЧ KEY |
1 | |
| 6 | 801404875 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА Крыльчатка SHIM Impeller |
8 | |
| 7 | 801403875 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 8 | 847568 |
ВИНТ (0.312-18 x 1.00) SCREW (.312-18 x 1.00) |
6 | superseded |
| 9 | 19923088 |
ВИНТ (0.250-20 x 0.875) SCREW (.250-20 x .875) |
4 |
