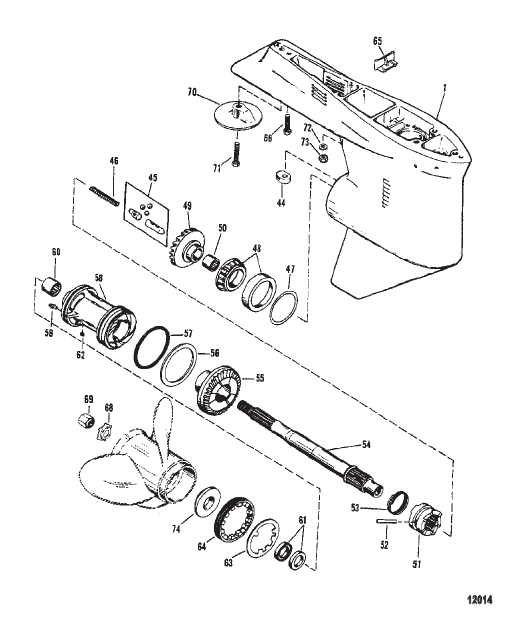

GEAR HSG (PROP SHAFT)(XR6/MAG III - 1.78:1 RATIO)
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 815791A92 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT GASKET SET Engine THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | discontinued |
| - | 89238A2 |
КОМПЛЕКТ УПЛОТНЕНИЙ THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT SEAL KIT THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | |
| 1 | 814247A1 |
КАРТЕР РЕДУКТОРА В СБОРЕ Базовый – черный GEAR HOUSING ASSEMBLY Basic - Black |
1 | superseded |
| 1 | 814247A2 |
КАРТЕР РЕДУКТОРА В СБОРЕ Базовый – серый GEAR HOUSING ASSEMBLY Basic - Gray |
1 | superseded |
| 44 | 76039 |
КУЛАЧОК Управление реверсом CAM Shift Control |
1 | superseded |
| 45 | 12239A1 |
КОМПЛЕКТ ТОЛКАТЕЛЯ Кулачок FOLLOWER KIT Cam |
1 | superseded |
| 46 | 30622 |
ПРУЖИНА SPRING |
1 | |
| 47 | 44491A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | discontinued |
| 48 | 30894A1 |
НАБОР ПОДШИПНИКОВ Колпачок и конус BEARING SET Cup And Cone |
1 | |
| 49 | 16279A2 |
РЕДУКТОР В СБОРЕ Передняя GEAR ASSEMBLY Forward |
1 | discontinued |
| 50 | 30895 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 51 | 822539 |
МУФТА СЦЕПЛЕНИЯ CLUTCH |
1 | superseded |
| 52 | 30632 |
ШТИФТ Разрез PIN Cross |
1 | superseded |
| 53 | 30893 |
ПРУЖИНА SPRING |
1 | |
| 54 | 12238T |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | |
| 55 | N.S.S. |
Не продается отдельно Reverse Gear (PART OF 43-16279A2) Not Sold Separate Reverse Gear (PART OF 43-16279A2) |
1 | |
| 56 | 76358 |
УПОРНАЯ ШАЙБА THRUST WASHER |
1 | discontinued |
| 57 | 29976 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 58 | 41529A2 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 59 | 98727 |
ФИТИНГ Смазка FITTING Grease |
2 | superseded |
| 60 | 30956 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 61 | 76868 |
УПЛОТНЕНИЕ SEAL |
2 | superseded |
| 62 | 30281 |
КЛЮЧ KEY |
1 | |
| 63 | 52700 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 64 | 52699 |
КРЫШКА COVER |
1 | discontinued |
| 65 | 67891 |
БЛОК ЗАЛИВКИ FILLER BLOCK |
1 | superseded |
| 66 | 65210 |
ВИНТ (0.375-16 x 1.00) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT SCREW (.375-16 x 1.00) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | |
| 68 | 816629 |
ЛЕПЕСТКОВАЯ ШАЙБА THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT TAB WASHER THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 69 | 52707A1 |
КОМПЛЕКТ ГАЙКИ ГРЕБНОГО ВИНТА (.750-16) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT PROP NUT KIT (.750-16) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 70 | 316404 |
ТРАНЦЕВАЯ ПЛИТА THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT TRIM TAB THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 71 | 806327 |
ВИНТ (0.437-14 x 1.750) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT SCREW (.437-14 x 1.750) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 72 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT WASHER (.453 x .812 x .105) Stainless Steel THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
2 | |
| 73 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT NUT (.437-20) Stainless Steel THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
2 | superseded |
| 74 | 13191A1 |
УПОРНАЯ ШАЙБА THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT THRUST WASHER THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
