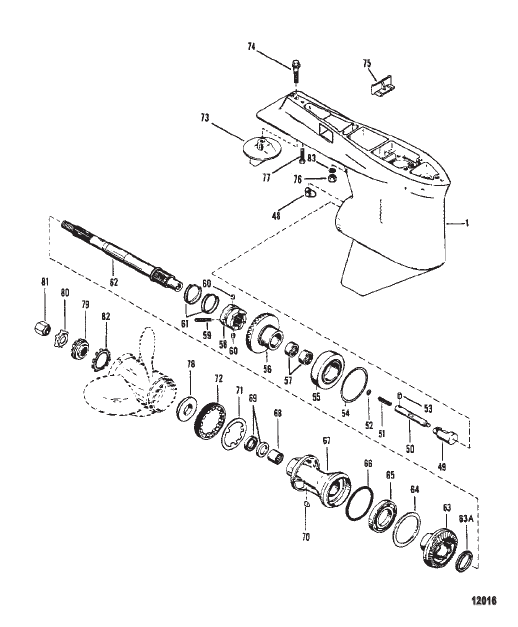

GEAR HOUSING (PROPSHAFT)
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 815791A92 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT GASKET SET Engine THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | discontinued |
| - | 89238A2 |
КОМПЛЕКТ УПЛОТНЕНИЙ THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT SEAL KIT THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | |
| 1 | 9148A47 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC) (BLACK) GEAR HOUSING ASSEMBLY (BASIC) (BLACK) |
1 | superseded |
| 1 | 9148A48 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC) (GRAY) GEAR HOUSING ASSEMBLY (BASIC) (GRAY) |
1 | superseded |
| 1 | 9148A49 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC) (TRACKER) GEAR HOUSING ASSEMBLY (BASIC) (TRACKER) |
1 | superseded |
| 48 | 78956 |
ЭКСЦЕНТРИК ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ SHIFT CAM |
1 | superseded |
| 49 | 89594A1 |
ТОЛКАТЕЛЬ В СБОРЕ FOLLOWER ASSEMBLY |
1 | |
| 50 | 79911A1 |
ШТОК ROD |
1 | |
| 51 | 79910 |
ПРУЖИНА SPRING |
1 | |
| 52 | 78910 |
ШАЙБА WASHER |
AR | |
| 53 | 78906 |
ШТИФТ PIN |
1 | superseded |
| 54 | 47397A1 |
НАБОР ПРОКЛАДОК (.002-3-5-10) SHIM SET (.002-3-5-10) |
AR | |
| 55 | 78172A1 |
БЛОК ПОДШИПНИКА Конический ролик BEARING ASSEMBLY Taper Roller |
1 | |
| 56 | 44102A2 |
РЕДУКТОР В СБОРЕ Передняя (135/150) (INCLS. REVERSE GEAR) [0G052417] & Below GEAR ASSEMBLY Forward (135/150) (INCLS. REVERSE GEAR) [0G052417] & Below |
1 | discontinued |
| 56 | 44102A7 |
НАБОР ШЕСТЕРЕН (135/150) (DOES NOT INCL. REVERSE GEAR) [0G052418] & Up GEAR SET (135/150) (DOES NOT INCL. REVERSE GEAR) [0G052418] & Up |
1 | |
| 56 | 16294A2 |
НАБОР ШЕСТЕРЕН HIGH ALTITUDE - 2.3:1 GEAR RATIO GEAR SET HIGH ALTITUDE - 2.3:1 GEAR RATIO |
1 | superseded |
| 56 | 44104A2 |
РЕДУКТОР В СБОРЕ Передняя (175/200/XR6/MAGNUM III) (INCLS. REVERSE GEAR) [0G052417] & Below GEAR ASSEMBLY Forward (175/200/XR6/MAGNUM III) (INCLS. REVERSE GEAR) [0G052417] & Below |
1 | superseded |
| 56 | 44104A8 |
НАБОР ШЕСТЕРЕН (175/200/XR6/MAGNUM III) (DEOS NOT INCLUDE REVERSE GEAR) [0G052418] & Up GEAR SET (175/200/XR6/MAGNUM III) (DEOS NOT INCLUDE REVERSE GEAR) [0G052418] & Up |
1 | |
| 57 | 549281 |
ПОДШИПНИК Ролик BEARING Roller |
1 | |
| 58 | 823174 |
МУФТА СЦЕПЛЕНИЯ CLUTCH |
1 | superseded |
| 59 | 78905 |
ШТИФТ Разрез PIN Cross |
1 | superseded |
| 60 | 78909 |
ШТИФТ Фиксатор PIN Detent |
2 | |
| 61 | 78962 |
ПРУЖИНА SPRING |
2 | |
| 62 | 94148 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | |
| 63 | N.S.S. |
Не продается отдельно Reverse Gear (Part of Forward Gear Set [0G052417] & Below Not Sold Separate Reverse Gear (Part of Forward Gear Set [0G052417] & Below |
1 | |
| 63 | 824987A2 |
РЕДУКТОР В СБОРЕ Задняя (135/150) [0G052418] & Up GEAR ASSEMBLY Reverse (135/150) [0G052418] & Up |
1 | |
| 63 | 824986A2 |
РЕДУКТОР В СБОРЕ Задняя (175/200/XR6/MAG. III) [0G052418] & Up GEAR ASSEMBLY Reverse (175/200/XR6/MAG. III) [0G052418] & Up |
1 | |
| 63A | 824108 |
ПРОСТАВКА [0G052418] & Up SPACER [0G052418] & Up |
1 | |
| 64 | 681001 |
КОЛЬЦО Упор RING Thrust |
1 | |
| 65 | 88957A1 |
ПОДШИПНИК Шарик BEARING Ball |
1 | superseded |
| 66 | 31534 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 67 | 43567A1 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 68 | 30956 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 69 | 76868 |
УПЛОТНЕНИЕ SEAL |
2 | superseded |
| 70 | 30281 |
КЛЮЧ KEY |
1 | |
| 71 | 79447 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 72 | 79448 |
ФИКСАТОР RETAINER |
1 | superseded |
| 73 | 316404 |
ТРАНЦЕВАЯ ПЛИТА (USE WITH GEAR HOUSING W/O ANODES) TRIM TAB (USE WITH GEAR HOUSING W/O ANODES) |
1 | superseded |
| 73 | 316405 |
ТРАНЦЕВАЯ ПЛИТА (USE WITH GEAR HOUSING W/ANODES) TRIM TAB (USE WITH GEAR HOUSING W/ANODES) |
1 | superseded |
| 74 | 806327 |
ВИНТ (0.437-14 x 1.750) (1-5/8") SCREW (.437-14 x 1.750) (1-5/8") |
1 | superseded |
| 75 | 67891 |
БЛОК ЗАЛИВКИ FILLER BLOCK |
1 | superseded |
| 76 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT NUT (.437-20) Stainless Steel THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
2 | superseded |
| 77 | 65210 |
ВИНТ (0.375-16 x 1.00) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT SCREW (.375-16 x 1.00) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | |
| 78 | 13171 |
УПОРНАЯ ВТУЛКА THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT THRUST HUB THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 79 | 31211A2 |
ШАЙБА Шлицевый THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT WASHER Splined THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 80 | 816629 |
ЛЕПЕСТКОВАЯ ШАЙБА THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT TAB WASHER THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 81 | 52707A1 |
КОМПЛЕКТ ГАЙКИ ГРЕБНОГО ВИНТА (.750-16) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT PROP NUT KIT (.750-16) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 82 | 423511 |
СТОПОРНАЯ ШАЙБА Зубчатая THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT LOCKWASHER Toothed THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | |
| 83 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT WASHER (.453 x .812 x .105) Stainless Steel THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
2 |
