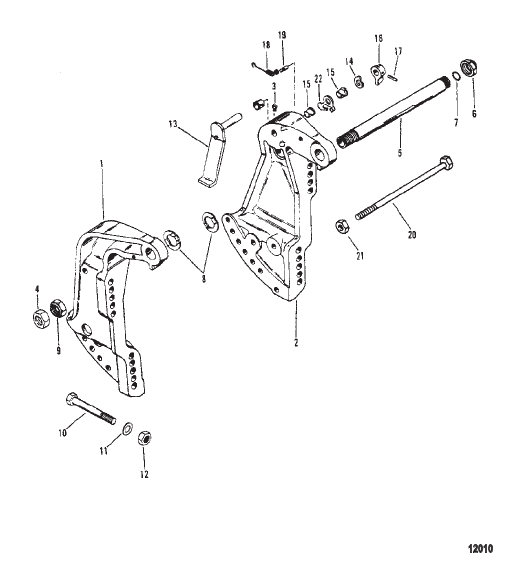

TRANSOM BRACKETS
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 815791A92 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель GASKET SET Engine |
1 | discontinued |
| 1 | 8718F7 |
КРОНШТЕЙН Транец (STARBOARD) (BLACK) BRACKET Transom (STARBOARD) (BLACK) |
1 | discontinued |
| 1 | 8718F8 |
КРОНШТЕЙН Транец (STARBOARD) (GRAY) BRACKET Transom (STARBOARD) (GRAY) |
1 | discontinued |
| 1 | 8718F10 |
КРОНШТЕЙН Транец (STARBOARD) (TRACKER) BRACKET Transom (STARBOARD) (TRACKER) |
1 | discontinued |
| 10 | 677551 |
ВИНТ (0.500-20 x 4.500) SCREW (.500-20 x 4.500) |
4 | superseded |
| 11 | 28421 |
ШАЙБА (1.5 × 3.05 × 0.13), нержавеющая сталь WASHER (1.5 x 3.05 x 0.13) Stainless Steel |
4 | superseded |
| 12 | 8M0027784 |
ГАЙКА NUT |
4 | superseded |
| 13 | 99629A2 |
РЫЧАГ В СБОРЕ LEVER ASSEMBLY |
1 | superseded |
| 14 | 99611 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 15 | 65830 |
NYLINER NYLINER |
2 | |
| 16 | 99633 |
РУЧКА KNOB |
1 | |
| 17 | 99615 |
ШТИФТ Желоб PIN Groove |
1 | |
| 18 | 99622 |
ПРУЖИНА SPRING |
1 | |
| 19 | 99604 |
ШТИФТ Желоб PIN Groove |
1 | |
| 2 | 8716A8 |
КРОНШТЕЙН В СБОРЕ Транец (PORT) (BLACK) BRACKET ASSEMBLY Transom (PORT) (BLACK) |
1 | discontinued |
| 2 | 8716A9 |
КРОНШТЕЙН В СБОРЕ Транец (PORT) (GRAY) BRACKET ASSEMBLY Transom (PORT) (GRAY) |
1 | discontinued |
| 2 | 8716A10 |
КРОНШТЕЙН В СБОРЕ Транец (PORT) (TRACKER) BRACKET ASSEMBLY Transom (PORT) (TRACKER) |
1 | discontinued |
| 20 | 96930A1 |
БОЛТ В СБОРЕ BOLT ASSEMBLY |
1 | |
| 21 | 23161 |
ГАЙКА (.375-24) NUT (.375-24) |
1 | |
| 22 | 814207 |
СТОП STOP |
1 | discontinued |
| 3 | 98727 |
ФИТИНГ Смазка (PORT) FITTING Grease (PORT) |
1 | superseded |
| 4 | 37984 |
ГАЙКА (0.875-14) NUT (.875-14) |
1 | superseded |
| 5 | 99170A2 |
КОМПЛЕКТ ТРУБЫ Наклон (CARBON STEEL) TUBE KIT Tilt (CARBON STEEL) |
AR | discontinued |
| 5 | 826125A1 |
ТРУБА НАКЛОНА (STAINLESS STEEL) TILT TUBE (STAINLESS STEEL) |
AR | |
| 6 | 826135 |
ГАЙКА (1.00-14), нейлоновая вставка (BLACK) NUT Lock (1.00-14) Nylon Insert (BLACK) |
1 | |
| 6 | 90068F3 |
ГАЙКА (1.00-14) (GRAY) NUT (1.00-14) (GRAY) |
1 | superseded |
| 6 | 90068F4 |
ГАЙКА (1.00-14) (TRACKER) NUT (1.00-14) (TRACKER) |
1 | superseded |
| 7 | 45711 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.612 x 0.103) O-RING (.612 x .103) |
1 | |
| 8 | 88750 |
ШАЙБА WASHER Wave (1.62 x 1.05) |
2 | |
| 9 | 826164 |
ГАЙКА (0.875-14) NUT (.875-14) |
1 | superseded |
