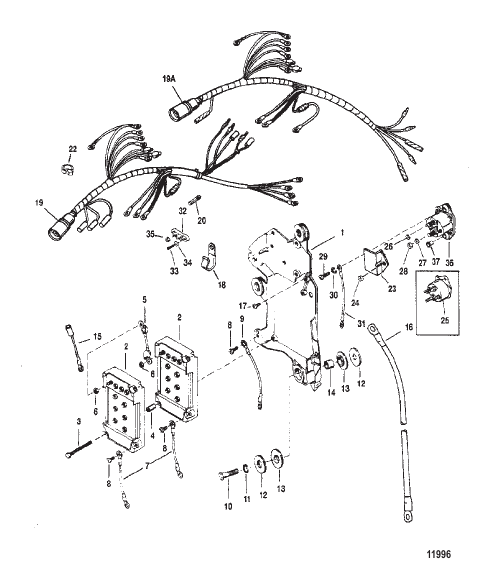

WIRING HARNESS/STARTER SOLENOID

Parts (40)

#Part NumberDescriptionQtyStatus
1 434292 IGNITION PLATE 1 disc.
10 69092 SCREW (1.25) 3 superseded
11 26993 LOCKWASHER (.312) 3 superseded
12 36042 WASHER 6
13 67264 WASHER (Rubber) 6
14 67268 BUSHING 3 disc.
15 91865A1 CABLE ASSEMBLY (3" - WHITE/BLACK) 1 disc.
15 88528A2 CABLE ASSEMBLY (6" - RED/WHITE) 1 disc.
16 88439A3 CABLE ASSEMBLY Positive - Battery 1
16 88439A4 CABLE ASSEMBLY Battery - Negative 1
17 87926 SCREW (#10-32 x .500) 1 disc.
18 814634 CLAMP (OLD DESIGN) 1
19 96220A16 HARNESS ASSEMBLY Engine Wiring [0G201874] & Below 1
19A 826730A4 HARNESS ASSEMBLY Engine Wiring [0G201875] & Up 1
2 7778A12 SWITCHBOX ASSEMBLY 2
20 79091   FUSE 20 Ampere 1 superseded
22 816311 TIE STRAP (8.00 Inches) AR superseded
23 78866 INSULATOR 1 disc.
24 45076 NUT (#10-32) Brass 4
25 68258A4 SOLENOID ASSEMBLY Starter (DESIGN I) 1 superseded
26 45076 NUT (#10-32) Brass 2
27 53166 LOCKWASHER (.312) 2
28 68292 NUT (.312-18) 2 superseded
29 45561 SCREW (.250-20 x 1.12) (USE With Reference 36) 2 superseded
29 31716 SCREW (.250-20 x .620) (Use with Reference 25) 2 disc.
3 13669 SCREW (#12-24 x 2.00) 2 disc.
30 26992 LOCKWASHER (.250) Stainless Steel (Use with Reference 25) 2
31 65999A2 CABLE ASSEMBLY Black 1 disc.
32 194372 TERMINAL BLOCK 1 disc.
33 38055 SCREW (.190-32 x .620) 2 disc.
34 89302 WASHER (.203 x .406 x .040) 2
35 45076 NUT (#10-32) Brass 2
36 817109A2 SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals) DESIGN II 1
37 818968 BUSHING DESIGN II 2 superseded
4 94453 BUSHING 2 disc.
5 62310A2 CABLE ASSEMBLY 1
6 45076 NUT (#10-32) Brass 20
7 60871A10 WIRE ASSEMBLY 2
8 817626 SCREW (#10-16 x .380) 3 superseded
9 65999A3 CABLE ASSEMBLY Black 1 disc.
