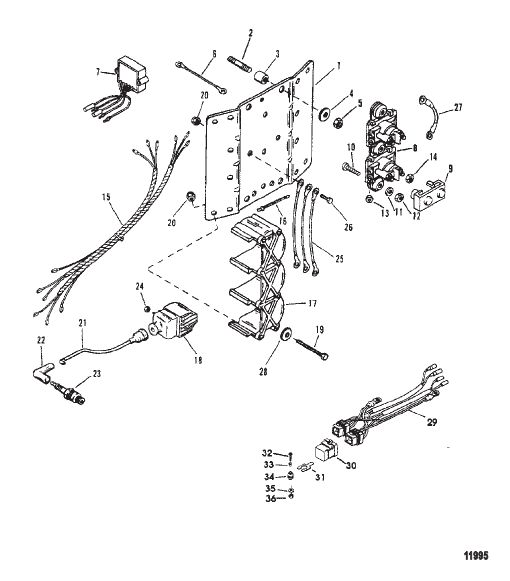

IGNITION COIL/VOLTAGE REGULATOR
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 195872 |
УСТАНОВОЧНАЯ ПЛАСТИНА MOUNTING PLATE |
1 | discontinued |
| 10 | 45561 |
ВИНТ (0.250-20 x 1.12) [0G201874] & Below SCREW (.250-20 x 1.12) [0G201874] & Below |
3 | superseded |
| 11 | 35950 |
ШАЙБА (0.273 x 0.437 x 0.031), нержавеющая сталь [0G201874] & Below WASHER (.273 x .437 x .031) Stainless Steel [0G201874] & Below |
3 | |
| 12 | 814101 |
ГАЙКА (0.250-20), нержавеющая сталь [0G201874] & Below NUT (.250-20) Stainless Steel [0G201874] & Below |
3 | superseded |
| 13 | 26419 |
ГАЙКА (№8-32), латунь [0G201874] & Below NUT (#8-32) Brass [0G201874] & Below |
4 | |
| 14 | 94330 |
ГАЙКА (0.250-20), латунь [0G201874] & Below NUT (.250-20) Brass [0G201874] & Below |
4 | |
| 15 | 69738A9 |
ЖГУТ ПРОВОДОВ В СБОРЕ (2,4,6) HARNESS ASSEMBLY (2,4,6) |
1 | |
| 15 | 69739A6 |
ЖГУТ ПРОВОДОВ В СБОРЕ (1,3,5) HARNESS ASSEMBLY (1,3,5) |
1 | |
| 16 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | superseded |
| 17 | 43542 |
КРЫШКА COVER |
2 | discontinued |
| 18 | 7370A13 |
КАТУШКА В СБОРЕ Зажигание [0G129221] & Below COIL ASSEMBLY Ignition [0G129221] & Below |
6 | superseded |
| 18 | 7370A19 |
КАТУШКА В СБОРЕ Зажигание [0G129222] & Up COIL ASSEMBLY Ignition [0G129222] & Up |
6 | superseded |
| 19 | 90048 |
ВИНТ (№10-32 x 2.125) SCREW (#10-32 x 2.125) |
12 | discontinued |
| 2 | 33778 |
ШПИЛЬКА STUD |
4 | |
| 20 | 90078 |
ГАЙКА (№10-32) NUT (#10-32) |
14 | discontinued |
| 21 | 813715A9 |
КОМПЛЕКТ КАБЕЛЯ Зажигание CABLE KIT Ignition |
1 | |
| 22 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ BOOT/TERMINAL KIT |
6 | |
| 23 | 136862 |
СВЕЧА ЗАЖИГАНИЯ (NGK-BU8H) SPARK PLUG (NGK-BU8H) |
6 | superseded |
| 23 | 14103568 |
СВЕЧА ЗАЖИГАНИЯ (NGK-BUZ8H - CANADA/BELGIUM) SPARK PLUG (NGK-BUZ8H - CANADA/BELGIUM) |
6 | superseded |
| 24 | 45076 |
ГАЙКА (№10-32), латунь NUT (#10-32) Brass |
12 | |
| 25 | 88807A13 |
КАБЕЛЬ В СБОРЕ [0G201874] & Below CABLE ASSEMBLY [0G201874] & Below |
8 | |
| 26 | 69022 |
ВИНТ (№10-32 x 0.500), нержавеющая сталь SCREW (#10-32 x .500) Stainless Steel |
2 | |
| 27 | 87379A14 |
ПРОВОД В СБОРЕ (2.750") [0G201874] & Below WIRE ASSEMBLY (2.750 Inches) [0G201874] & Below |
1 | discontinued |
| 28 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) WASHER (.203 x .406 x .040) |
12 | |
| 29 | 826802A4 |
ЖГУТ ПРОВОДОВ В СБОРЕ [0G201875] & Up HARNESS ASSEMBLY [0G201875] & Up |
1 | |
| 3 | 19661 |
ВТУЛКА BUSHING |
4 | |
| 30 | 828151 |
РЕЛЕ [0G201875] & Up RELAY [0G201875] & Up |
2 | superseded |
| 31 | 828102 |
КРОНШТЕЙН [0G201875] & Up BRACKET [0G201875] & Up |
2 | superseded |
| 32 | 45561 |
ВИНТ (0.250-20 x 1.12) [0G201875] & Up SCREW (.250-20 x 1.12) [0G201875] & Up |
2 | superseded |
| 33 | 818968 |
ВТУЛКА [0G201875] & Up BUSHING [0G201875] & Up |
2 | superseded |
| 34 | 818967 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [0G201875] & Up GROMMET [0G201875] & Up |
2 | |
| 35 | 35950 |
ШАЙБА (0.273 x 0.437 x 0.031), нержавеющая сталь [0G201875] & Up WASHER (.273 x .437 x .031) Stainless Steel [0G201875] & Up |
2 | |
| 36 | 814101 |
ГАЙКА (0.250-20), нержавеющая сталь [0G201875] & Up NUT (.250-20) Stainless Steel [0G201875] & Up |
2 | superseded |
| 4 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
4 | |
| 5 | 13438 |
ГАЙКА (0.250-28) NUT (.250-28) |
4 | superseded |
| 6 | 88807A35 |
КАБЕЛЬ В СБОРЕ CABLE ASSEMBLY |
1 | discontinued |
| 7 | 815279T |
РЕГУЛЯТОР Напряжение REGULATOR Voltage |
2 | superseded |
| 8 | 818997A1 |
ЭЛЕКТРОМАГНИТНЫЙ КЛАПАН В СБОРЕ [0G201874] & Below SOLENOID ASSEMBLY [0G201874] & Below |
1 | superseded |
| 9 | 97861 |
РАЗЪЕДИНИТЕЛЬ [0G201874] & Below INSULATOR [0G201874] & Below |
2 |
