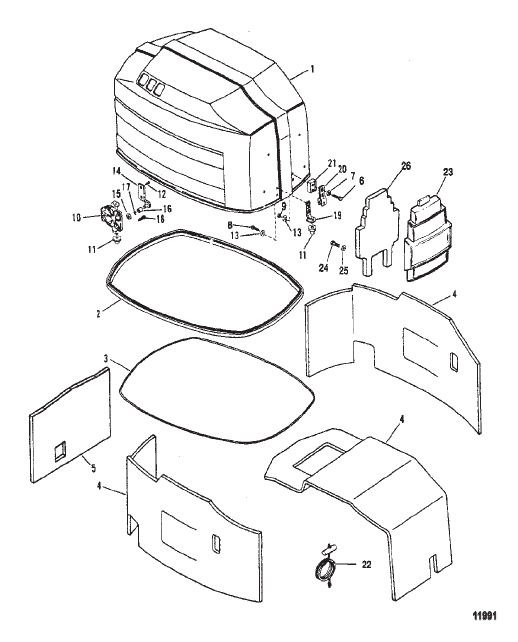

TOP COWL AND FRONT SHIELD
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9742A88 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (BLACK)(Without Decals) 135/150/175/200 TOP COWL ASSEMBLY (BLACK)(Without Decals) 135/150/175/200 |
1 | superseded |
| 1 | 9743A11 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (SILVER)(Without Decals) 135/150/175/200 TOP COWL ASSEMBLY (SILVER)(Without Decals) 135/150/175/200 |
1 | superseded |
| 1 | 9742A92 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (XR6)(Without Decals) TOP COWL ASSEMBLY (XR6)(Without Decals) |
1 | superseded |
| 1 | 9742A93 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (MAGNUM III -GRAY)(Without Decals) TOP COWL ASSEMBLY (MAGNUM III -GRAY)(Without Decals) |
1 | superseded |
| 1 | 9743A10 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (MAGNUM III-SILVER)(Without Decals) TOP COWL ASSEMBLY (MAGNUM III-SILVER)(Without Decals) |
1 | superseded |
| 1 | 9743A8 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (150 TRACKER)(Without Decals) TOP COWL ASSEMBLY (150 TRACKER)(Without Decals) |
1 | discontinued |
| 1 | 9743A13 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (175/200 TRACKER)(Without Decals) TOP COWL ASSEMBLY (175/200 TRACKER)(Without Decals) |
1 | discontinued |
| 10 | 184741 |
КРОНШТЕЙН BRACKET |
2 | discontinued |
| 11 | 18506 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | superseded |
| 12 | 28636 |
ВИНТ (0.250-20 x 0.750) SCREW (.250-20 x .750) |
4 | |
| 13 | 56720 |
ШАЙБА (0.330 x 0.750 x 0.060), нержавеющая сталь WASHER (.330 x .750 x .060) Stainless Steel |
4 | |
| 14 | 813096 |
КРЮК [0G029197] & Below HOOK [0G029197] & Below |
2 | superseded |
| 14 | 813096A2 |
КОМПЛЕКТ КРЮКОВ [0G029198] & Up HOOK KIT [0G029198] & Up |
2 | discontinued |
| 15 | 36001 |
ШАЙБА [0G029197] & Below WASHER [0G029197] & Below |
2 | |
| 16 | 813074 |
РОЛИК [0G029197] & Below ROLLER [0G029197] & Below |
2 | superseded |
| 16 | 815263 |
РОЛИК [0G029198] & Up ROLLER [0G029198] & Up |
2 | superseded |
| 17 | 13194 |
КОЛЬЦО Стопор [0G029197] & Below RING Retaining [0G029197] & Below |
2 | |
| 17 | 8237951 |
КОЛЬЦО Стопор [0G029198] & Up RING Retaining [0G029198] & Up |
2 | |
| 18 | 816992 |
ВИНТ SCREW |
8 | discontinued |
| 19 | 187021 |
ФИКСАТОР LOCATOR |
1 | discontinued |
| 2 | 812784 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 20 | 18173 |
КРОНШТЕЙН В СБОРЕ Роликовая защелка BRACKET ASSEMBLY Latch Roller |
1 | superseded |
| 21 | 816838 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 22 | 47341A1 |
КОМПЛЕКТ ТРОСА И РУКОЯТКИ Ручной/аварийный запуск (FOR MANUAL STARTING) ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING) |
1 | superseded |
| 23 | 18755A1 |
ПЕРЕДНИЙ ЭКРАН В СБОРЕ (BLACK)(Without Decals) FRONT SHIELD ASSEMBLY (BLACK)(Without Decals) |
1 | discontinued |
| 23 | 18755A2 |
ПЕРЕДНИЙ ЭКРАН В СБОРЕ (GRAY)(Without Decals) FRONT SHIELD ASSEMBLY (GRAY)(Without Decals) |
1 | discontinued |
| 23 | 18755A4 |
ПЕРЕДНИЙ ЭКРАН В СБОРЕ (SILVER)(Without Decals) FRONT SHIELD ASSEMBLY (SILVER)(Without Decals) |
1 | discontinued |
| 23 | 18755A3 |
ПЕРЕДНИЙ ЭКРАН В СБОРЕ (TRACKER)(Without Decals) FRONT SHIELD ASSEMBLY (TRACKER)(Without Decals) |
1 | discontinued |
| 24 | 77137 |
ВИНТ (0.190-16 x 0.620) SCREW (.190-16 x .620) |
4 | |
| 25 | 56681 |
ШАЙБА (0.203 x 0.500 x 0.032) WASHER (.203 x .500 x .032) |
4 | superseded |
| 26 | 813562 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 3 | 815478 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 4 | 814823A1 |
КОМПЛЕКТ ШУМОПОГЛОТИТЕЛЯ SOUND BLANKT KIT |
1 | discontinued |
| 4 | 815225A1 |
КОМПЛЕКТ ЗВУКОПОГЛОТИТЕЛЯ (XR6/MAGNUM III/TRACKER 150) SOUND BLANKET KIT (XR6/MAGNUM III/TRACKER 150) |
1 | discontinued |
| 5 | 815227 |
ШУМОПОГЛОТИТЕЛЬ (XR6/MAGNUM III/TRACKER 150) SOUND BLANKET (XR6/MAGNUM III/TRACKER 150) |
1 | discontinued |
| 6 | 69267 |
ВИНТ (0.312-18 x 1.750) SCREW (.312-18 x 1.750) |
2 | |
| 7 | 70132 |
ШАЙБА (0.323 x 0.563 x 0.063), нержавеющая сталь WASHER (.323 x .563 x .063) Stainless Steel |
2 | superseded |
| 8 | 73286 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
2 | |
| 9 | 815848 |
ГАЙКА (0.312) NUT (.312) |
2 |
