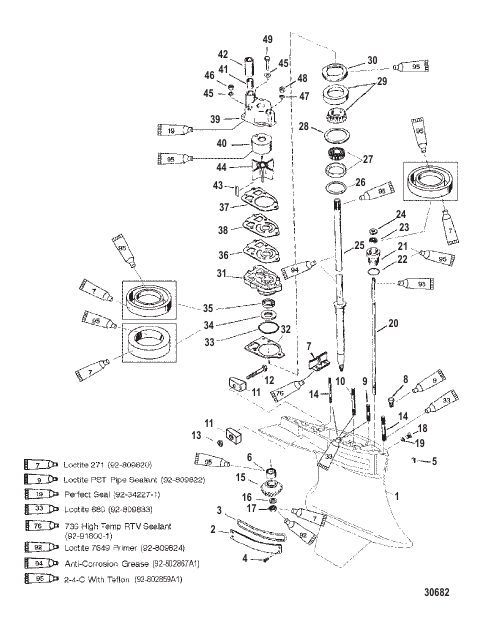

| # | Part Number | Description | Qty | Status |
|---|
| - |
89238A3 |
SEAL KIT Gear Housing
|
1 |
|
| - |
90415A24 |
STUD KIT (LONG)
|
1 |
disc.
|
| - |
90415A25 |
STUD KIT (X-LONG)
|
1 |
disc.
|
| 1 |
848474A39 |
GEAR HOUSING ASSEMBLY Basic-Without Torque Tab (SEE NOTE)
|
1 |
superseded
|
| 10 |
69501 |
STUD (5/16 X 3-1/4 IN.)
|
1 |
|
| 11 |
59579 |
STUD (.437-14/.437-20 x 2.812) (SHORT/LONG)
|
3 |
|
| 11 |
786382 |
STUD (.437-14/.437-20 x 3.120) (LONG)
|
1 |
|
| 11 |
579203 |
STUD (.437-14/.437-20 x 2.060) (LONG)
|
2 |
superseded
|
| 11 |
74730 |
STUD (X-LONG)
|
2 |
disc.
|
| 11 |
74732 |
STUD (7/16 X 7.69 IN.) (X-LONG)
|
3 |
disc.
|
| 11 |
78639 |
STUD (7/16 X 8-1/8 IN.) (X-LONG)
|
1 |
disc.
|
| 12 |
826134 |
ANODE
|
2 |
superseded
|
| 13 |
4000333 |
SCREW (M6 x 40)
|
1 |
|
| 14 |
8268336 |
NUT (M6)
|
1 |
superseded
|
| 15 |
NSS |
NOT SOLD SEPARATE Pinion Gear-Part of 43-15845A2 or 43-817515A2
|
1 |
|
| 16 |
92721 |
WASHER (.965 x .630)
|
1 |
|
| 17 |
35921 |
NUT (.625-18)
|
1 |
|
| 18 |
79953A2 |
SCREW KIT (.375-16 x .250)
|
1 |
superseded
|
| 19 |
19183 |
WASHER Fiber
|
1 |
superseded
|
| 2 |
8479503 |
COVER
|
2 |
superseded
|
| 20 |
789022 |
SHIFT SHAFT (LOWER)
|
1 |
|
| 21 |
77631A2 |
BUSHING ASSEMBLY
|
1 |
|
| 22 |
25439 |
O-RING (.862 x .103)
|
1 |
|
| 23 |
8164641 |
SEAL Oil
|
1 |
superseded
|
| 24 |
77674 |
WASHER (.35 x .75 x .12)
|
1 |
|
| 25 |
848449A4 |
DRIVESHAFT ASSEMBLY (SHORT)
|
1 |
superseded
|
| 25 |
848449A5 |
DRIVESHAFT ASSEMBLY (LONG)
|
1 |
superseded
|
| 25 |
848449A6 |
DRIVESHAFT ASSEMBLY (X-LONG)
|
1 |
disc.
|
| 26 |
38657A1 |
SHIM ASSEMBLY
|
1 |
disc.
|
| 27 |
48939A2 |
BEARING Taper Roller
|
1 |
superseded
|
| 28 |
42637A1 |
SHIM SET
|
AR |
disc.
|
| 29 |
36387A1 |
BEARING ASSEMBLY Roller/Cup
|
1 |
superseded
|
| 3 |
34776 |
O-RING
|
2 |
|
| 30 |
824519 |
RETAINER
|
1 |
superseded
|
| 31 |
44292A3 |
BASE ASSEMBLY Water Pump
|
1 |
|
| 32 |
426311 |
GASKET
|
1 |
superseded
|
| 33 |
90011 |
O-RING (2.175 x .175)
|
1 |
superseded
|
| 34 |
89238 |
SEAL Oil
|
1 |
|
| 35 |
16977 |
SEAL Oil
|
1 |
|
| 36 |
18051 |
GASKET (LOWER)
|
1 |
|
| 37 |
856091 |
GASKET (UPPER)
|
1 |
superseded
|
| 38 |
32435 |
FACE PLATE
|
1 |
superseded
|
| 39 |
847710A1 |
BODY ASSEMBLY Water Pump USE WITH 3/4 IN. DIA. WATER TUBE
|
1 |
superseded
|
| 39 |
96148A1 |
BODY ASSEMBLY Water Pump USE WITH 1/2 IN. DIA. WATER TUBE
|
1 |
superseded
|
| 4 |
815904 |
SCREW (#10-32 x .500)
|
12 |
|
| 40 |
48752 |
INSERT USE WITH 3/4 IN. DIA. WATER TUBE
|
1 |
superseded
|
| 40 |
48752 |
INSERT USE WITH 1/2 IN. DIA. WATER TUBE
|
1 |
superseded
|
| 41 |
88397 |
SEAL USE WITH 3/4 IN. DIA. WATER TUBE
|
1 |
|
| 41 |
38970 |
SEAL USE WITH 1/2 IN. DIA. WATER TUBE
|
1 |
|
| 42 |
847685 |
SLEEVE USE WITH 3/4 IN. DIA. WATER TUBE
|
1 |
|
| 42 |
29804 |
SLEEVE USE WITH 1/2 IN. DIA. WATER TUBE
|
1 |
superseded
|
| 43 |
56654 |
KEY
|
1 |
superseded
|
| 44 |
899844 |
IMPELLER
|
1 |
superseded
|
| 45 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
2 |
superseded
|
| 46 |
13438 |
NUT (.250-28)
|
2 |
superseded
|
| 47 |
36001 |
WASHER
|
1 |
|
| 48 |
13436 |
NUT
|
1 |
|
| 49 |
96411 |
SCREW (#14-8 x 2.25)
|
1 |
superseded
|
| 5 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
2 |
|
| 6 |
42647A1 |
BEARING ASSEMBLY Roller
|
1 |
|
| 7 |
67891 |
FILLER BLOCK
|
1 |
superseded
|
| 8 |
847949 |
PLUG Pipe
|
1 |
|
| 9 |
562972 |
STUD (.312-18/.324-24 x 3.380)
|
1 |
superseded
|
