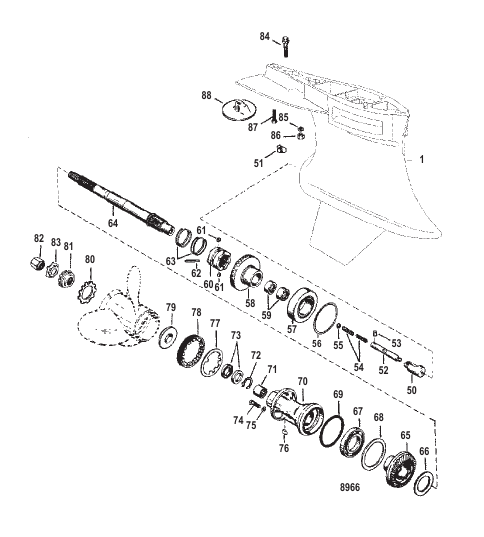

| # | Part Number | Description | Qty | Status |
|---|
| - |
89238A3 |
SEAL KIT Gear Housing
|
1 |
|
| - |
90415A24 |
STUD KIT (LONG)
|
1 |
disc.
|
| - |
90415A25 |
STUD KIT (X-LONG)
|
1 |
disc.
|
| 1 |
848450T25 |
GEAR HOUSING ASSEMBLY Basic-With Torque Tab SEE NOTE
|
1 |
superseded
|
| 1 |
848474A39 |
GEAR HOUSING ASSEMBLY Basic-Without Torque Tab SEE NOTE
|
1 |
superseded
|
| 50 |
89594A1 |
FOLLOWER ASSEMBLY
|
1 |
|
| 51 |
789562 |
SHIFT CAM
|
1 |
|
| 52 |
79911A1 |
ROD
|
1 |
|
| 53 |
78906 |
PIN
|
1 |
superseded
|
| 54 |
79910 |
SPRING
|
2 |
|
| 55 |
78910 |
WASHER
|
2 |
|
| 56 |
47397A1 |
SHIM SET
|
AR |
|
| 57 |
78172A1 |
BEARING ASSEMBLY Taper Roller
|
1 |
|
| 58 |
44104A7 |
GEAR SET (INCLUDES ALL GEARS) (1.87:1 GEAR RATIO)
|
1 |
|
| 58 |
44102A5 |
GEAR SET (INCLUDES PINION) (2:1 GEAR RATIO)
|
1 |
disc.
|
| 58 |
848855A2 |
GEAR SET (1.62 GEAR RATIO)
|
1 |
superseded
|
| 58 |
849189A2 |
GEAR SET (1.75 GEAR RATIO)
|
1 |
superseded
|
| 59 |
549281 |
BEARING Roller
|
1 |
|
| 60 |
42672 |
RATCHET
|
1 |
superseded
|
| 61 |
78909 |
PIN Detent
|
2 |
|
| 62 |
42671 |
PIN Cross
|
1 |
|
| 63 |
78962 |
SPRING
|
2 |
|
| 64 |
822820F1 |
PROPELLER SHAFT
|
1 |
disc.
|
| 65 |
822824A1 |
GEAR ASSEMBLY Reverse (1.87:1 GEAR RATIO)
|
1 |
superseded
|
| 65 |
847632A1 |
GEAR ASSEMBLY Reverse (2:1 GEAR RATIO)
|
1 |
|
| 65 |
NSS |
NOT SOLD SEPARATE Gear-Reverse (1.62 GEAR RATIO PART OF 43-848855A2)
|
1 |
|
| 65 |
NSS |
NOT SOLD SEPARATE Gear-Reverse (1.75 GEAR RATIO PART OF 43-849189A2)
|
1 |
|
| 66 |
822823 |
THRUST RING
|
1 |
|
| 67 |
88957T |
BEARING Ball
|
1 |
|
| 68 |
681001 |
RING Thrust
|
1 |
|
| 69 |
31534 |
O-RING
|
1 |
superseded
|
| 70 |
848840A1 |
CARRIER ASSEMBLY Bearing
|
1 |
|
| 71 |
817072 |
BEARING Roller
|
1 |
|
| 72 |
817071 |
RING Snap
|
1 |
|
| 73 |
815565 |
SEAL Oil
|
2 |
|
| 74 |
67892A1 |
FITTING KIT Magnetic, Plug Fill/Drain
|
1 |
superseded
|
| 75 |
19183 |
WASHER Fiber
|
1 |
superseded
|
| 76 |
30281 |
KEY
|
1 |
|
| 77 |
79447 |
TAB WASHER
|
1 |
|
| 78 |
158401 |
COVER
|
1 |
|
| 79 |
131711 |
THRUST HUB
|
1 |
superseded
|
| 80 |
423511 |
LOCKWASHER Toothed
|
1 |
|
| 81 |
31211A2 |
WASHER Splined
|
1 |
superseded
|
| 82 |
52707A1 |
PROP NUT KIT (.750-16)
|
1 |
superseded
|
| 83 |
816629 |
TAB WASHER
|
1 |
superseded
|
| 84 |
41350 |
SCREW (.437-14 x 2.50) Stainless Steel (SHORT)
|
1 |
|
| 84 |
66024 |
SCREW (.437-14 x 1.75) (LONG/X-LONG)
|
1 |
|
| 85 |
762143 |
ANODE (SHORT)
|
1 |
superseded
|
| 85 |
76214A5 |
ANODE KIT (LONG)
|
1 |
superseded
|
| 85 |
762141 |
ANODE (X-LONG)
|
1 |
superseded
|
| 86 |
822836 |
WASHER (.445 x .805 x .108)
|
2 |
|
| 87 |
134391 |
NUT (.4375-20)
|
2 |
superseded
|
| 88 |
30206 |
SCREW (.375-16 x 1.00) Stainless Steel (SHORT/LONG)
|
1 |
|
| 88 |
15929 |
SCREW (.375-16 x 16 x 6.00) (X-LONG)
|
1 |
disc.
|
