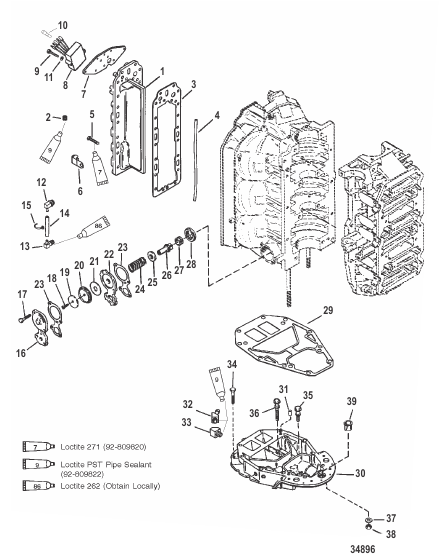

Exhaust Divider and Exhaust Plate

Parts (46)

#Part NumberDescriptionQtyStatus
- 813859A95 GASKET SET 1
- 809430T95 POWERHEAD ASSEMBLY 1 superseded
1 815552A1 DIVIDER PLATE 1 superseded
10 13541 PLUG Male 2
11 35045 NUT (.250-28) 4 superseded
12 814430 FITTING (.500-14) 1 superseded
13 92007 FITTING (.250-18) 1 superseded
14 830756109 HOSE (57.00 Inches Bulk) (23-1/2 IN.) 1 superseded
15 816311 TIE STRAP (8.00 Inches) 2 superseded
16 68729 COVER 1 superseded
17 74824 SCREW (.312-18 x 1.250) 4
18 69570 SCREW (#10-16 x .750) 1
19 76451 WASHER 1
2 328022   PLUG Pipe (.125-27) Brass 1
20 14479 DIAPHRAGM 1 superseded
21 16496 DEFLECTOR Water 1
22 16497A1 PLATE 1
23 78690   GASKET 2 superseded
24 64878 SPRING (Black) 1
25 85303 WASHER 1
26 14480 POPPET 1
27 64872 GROMMET 1
28 65848 CARRIER 1
29 8231422 GASKET 2
3 8475251 GASKET 1 superseded
30 18260A5 PLATE ASSEMBLY Exhaust (LONG) 1 superseded
30 18260A8 PLATE ASSEMBLY Exhaust (SHORT-BLACK) 1 superseded
30 18260A9 PLATE ASSEMBLY Exhaust (SHORT-GRAY) 1 superseded
31 823106   PIN Dowel (.875) 2 superseded
32 14867   ELBOW 45 Degree 1
33 29085   FITTING Elbow (45 Degree) 1 superseded
34 66725 SCREW (.375-16 x 3.50) (LONG) 3 superseded
34 60179 SCREW (.437-14 x 3.500) (SHORT) 3
35 66727 SCREW (.312-18 x 1.250) 1
36 68783 SCREW (.312-18 x 2.50) 1
37 822838 WASHER (.401 x .745 x .097) 6
38 46335 NUT (.375-24) 6
39 27132 BUSHING 1
4 814754 SEAL (12.50 Inches) 1
5 848496 SCREW (.312-18 x 1.50) 18 disc.
5 848497 SCREW (.312-18 x 1.00) 2
6 814634 CLAMP (LARGE) AR
6 642352 J CLIP (SMALL) 1 disc.
7 8478951 PLATE Regulator 1
8 854515 REGULATOR Voltage 1 superseded
9 69697 SCREW (.250-28 x 1.50) 4 disc.
