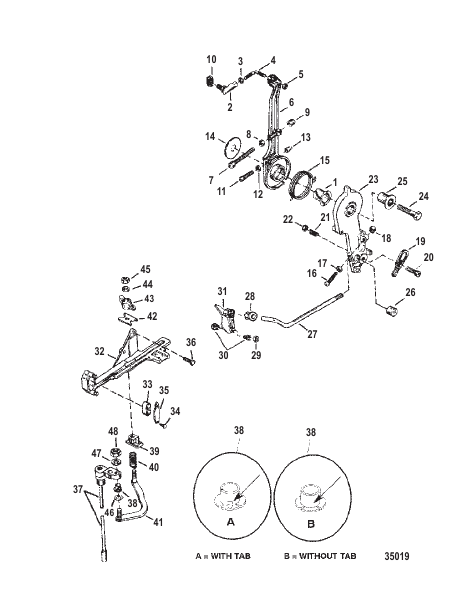

Throttle Lever and Shift Shaft

Parts (50)

#Part NumberDescriptionQtyStatus
1 55171 BUSHING 1 disc.
10 74897 PIVOT 1 superseded
11 13627 SCREW (.190-32 x 1.250) 1 disc.
12 68219 NUT (#10-32) Stainless Steel 1
13 48039 CAP 1
14 46765 WASHER (.390 x 1.50 x .120) 1
15 823235 SPRING 1
16 64022 SCREW (.250-20 x 2.125) 1
17 64015 NUT (.250-20) 1
18 26852 CAP Nylon 1
19 39483 LATCH 1
2 62459 BALL JOINT ASSEMBLY 1 superseded
20 69026 SCREW (.250-28 x .880) 1
21 20099 SPRING 1
22 35045 NUT (.250-28) 1 superseded
23 41095 LEVER 1 superseded
24 818165 SCREW (.375-16 x 1.75) 1
25 55164 BUSHING 1
26 14638 BARREL 1
27 14634 ROD 1 disc.
28 932481 BUSHING 1 superseded
29 35045 NUT (.250-28) 1 superseded
3 45076 NUT (#10-32) Brass 1
30 26856 BUSHING 2
31 8142391 CAM 1 superseded
32 814283A2 BRACKET ASSEMBLY 1
33 39519   CUP 1
34 42975   DRIVE SCREW 2
35 98889   LATCH 1
36 53167 SCREW (.312-18 x .880) 3 superseded
37 79932A16 SHIFT SHAFT ASSEMBLY LONG - USE WITH REF #38 WITH TAB (SEE BUBBLE A) 1
37 79932A18 SHIFT SHAFT ASSEMBLY SHORT - USE WITH REF #38 WITHOUT TAB (SEE BUBBLE B) 1 disc.
38 26600 BUSHING LONG - USE WITH REF #38 WITH TAB (SEE BUBBLE A) 1 disc.
38 26856 BUSHING SHORT - USE WITH REF #38 WITHOUT TAB (SEE BUBBLE B) 1
39 814284 GUIDE BLOCK 1
4 76035 ROD 1 disc.
40 20099 SPRING 1
41 67073A1 LINK ROD ASSEMBLY 1
42 52100 WEAR PLATE 1
43 38279 LATCH 1 superseded
44 69056 WASHER (.255 x .620 x .030) Stainless Steel 1
45 35045 NUT (.250-28) 1 superseded
46 29720 WAVE WASHER 1
47 35462 WASHER (.2656 x .625 x .0625) Stainless Steel 1
48 35045 NUT (.250-28) 1 superseded
5 46438 NUT (#10-32) 1
6 41094A3 LEVER ASSEMBLY 1
7 64022   SCREW (.250-20 x 2.125) 1
8 64015   NUT (.250-20) 1
9 26852 CAP Nylon 1
