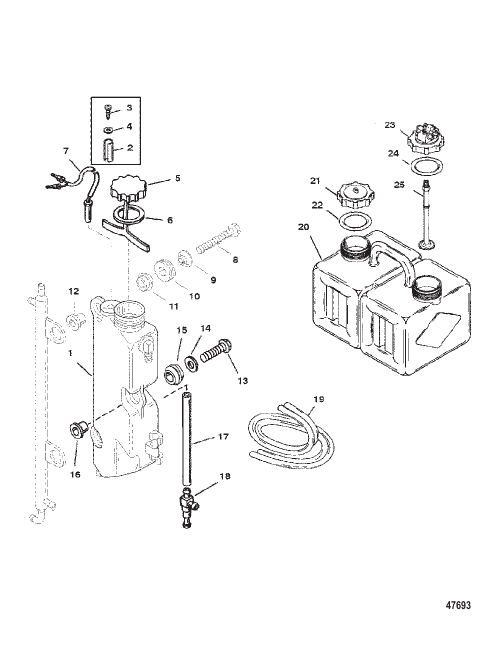

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
830889A1 |
TANK ASSEMBLY Oil
|
1 |
|
| 10 |
833155 |
GROMMET
|
2 |
|
| 11 |
834756 |
GROMMET
|
2 |
disc.
|
| 12 |
19064 |
BUSHING
|
2 |
|
| 13 |
83476935 |
SCREW (M8 X 35)
|
1 |
disc.
|
| 14 |
56720 |
WASHER (.330 x .750 x .060) Stainless Steel
|
1 |
|
| 15 |
825380 |
GROMMET
|
1 |
superseded
|
| 16 |
19064 |
BUSHING
|
1 |
|
| 17 |
830756109 |
HOSE (57.00 Inches Bulk) (8 IN.)
|
1 |
superseded
|
| 18 |
424254 |
FITTING
|
1 |
superseded
|
| 19 |
99439 |
HOSE (114.00 Inches)
|
1 |
|
| 2 |
8260841 |
SPACER
|
1 |
|
| 20 |
87421 |
TANK
|
1 |
|
| 21 |
43298A2 |
CAP ASSEMBLY
|
1 |
|
| 22 |
11332 |
O-RING (2.225 x .210)
|
1 |
|
| 23 |
816190A3 |
HOUSING ASSEMBLY Adapter
|
1 |
superseded
|
| 24 |
11332 |
O-RING (2.225 x .210)
|
1 |
|
| 25 |
99802 |
TUBE
|
1 |
|
| 3 |
58376 |
SCREW (.164-18 x .375) (.164-18 X .375)
|
1 |
|
| 4 |
72761 |
WASHER (.203 x .562 x .060) Stainless Steel
|
1 |
|
| 5 |
814449A3 |
CAP ASSEMBLY
|
1 |
|
| 6 |
42999 |
GASKET
|
1 |
superseded
|
| 7 |
12886A7 |
SWITCH ASSEMBLY
|
1 |
|
| 8 |
83476945 |
SCREW (M8 X 45)
|
2 |
disc.
|
| 9 |
834758 |
BUSHING
|
2 |
disc.
|
