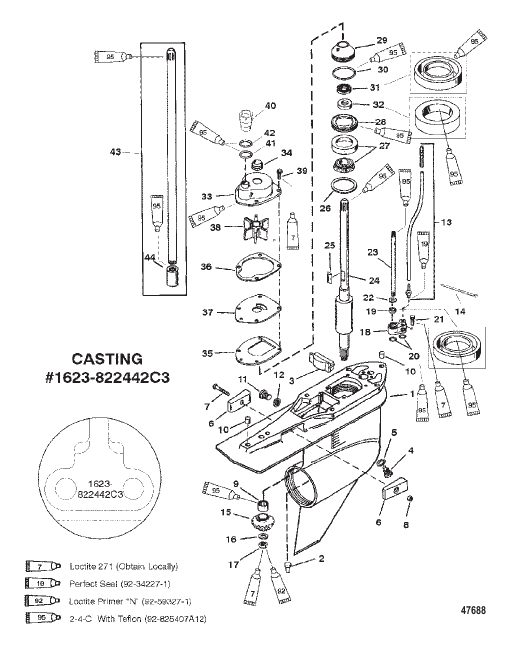

| # | Part Number | Description | Qty | Status |
|---|
| - |
816575A4 |
SEAL KIT Gear Housing
|
1 |
|
| - |
817275A6 |
REPAIR KIT Water Pump
|
1 |
|
| 1 |
822442A83 |
GEAR HOUSING ASSEMBLY (BASIC-BLACK)
|
1 |
superseded
|
| 1 |
822442A84 |
GEAR HOUSING ASSEMBLY (BASIC-GRAY)
|
1 |
superseded
|
| 1 |
822442A79 |
GEAR HOUSING ASSEMBLY (BASIC-WHITE)
|
1 |
superseded
|
| 10 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
2 |
|
| 11 |
79953A2 |
SCREW KIT (.375-16 x .250)
|
1 |
superseded
|
| 12 |
19183 |
WASHER Fiber
|
1 |
superseded
|
| 13 |
85822A10 |
CONNECTOR ASSEMBLY
|
1 |
|
| 14 |
56762 |
TIE STRAP (4.00 Inches)
|
1 |
|
| 15 |
NSS |
NOT SOLD SEPARATE (PART OF 43-828695A1)
|
1 |
|
| 16 |
92721 |
WASHER (.965 x .630)
|
1 |
|
| 17 |
35921 |
NUT (.625-18)
|
1 |
|
| 18 |
815921A4 |
BUSHING ASSEMBLY
|
1 |
disc.
|
| 19 |
8164641 |
SEAL Oil
|
1 |
superseded
|
| 2 |
379721 |
PIN
|
1 |
|
| 20 |
36318 |
O-RING (.799)
|
2 |
superseded
|
| 21 |
1993716 |
SCREW (M6 x 16)
|
2 |
|
| 22 |
77674 |
WASHER (.35 x .75 x .12)
|
1 |
|
| 23 |
824145 |
SHIFT SHAFT (LOWER)
|
1 |
|
| 24 |
816472 |
DRIVESHAFT (LOWER)
|
1 |
superseded
|
| 25 |
43037 |
KEY
|
1 |
superseded
|
| 26 |
42637A1 |
SHIM SET
|
AR |
disc.
|
| 27 |
36387A1 |
BEARING ASSEMBLY Roller/Cup
|
1 |
superseded
|
| 28 |
824519 |
RETAINER
|
1 |
superseded
|
| 29 |
821759A4 |
CARRIER ASSEMBLY
|
1 |
superseded
|
| 3 |
821526 |
FILLER BLOCK
|
1 |
superseded
|
| 30 |
90011 |
O-RING (2.175 x .175)
|
1 |
superseded
|
| 31 |
66302 |
SEAL Oil
|
1 |
superseded
|
| 32 |
66302 |
SEAL Oil
|
1 |
superseded
|
| 33 |
817275A1 |
HOUSING KIT Water Pump
|
1 |
|
| 34 |
816575A2 |
SEAL KIT
|
1 |
|
| 35 |
430331 |
GASKET
|
1 |
|
| 36 |
817277 |
GASKET
|
1 |
superseded
|
| 37 |
817276 |
FACEPLATE
|
1 |
superseded
|
| 38 |
430262 |
IMPELLER
|
1 |
superseded
|
| 39 |
1993716 |
SCREW (M6 x 16)
|
4 |
|
| 4 |
67892A1 |
FITTING KIT Magnetic, Plug Fill/Drain
|
1 |
superseded
|
| 40 |
832942A1 |
COUPLING ASSEMBLY
|
1 |
|
| 41 |
21836 |
O-RING (.796 x .139)
|
1 |
superseded
|
| 42 |
35027 |
O-RING (1.046)
|
1 |
superseded
|
| 43 |
827755A1 |
EXTENSION KIT Driveshaft (X-LONG - 25 IN.) (SEE NOTE)
|
1 |
disc.
|
| 44 |
823902 |
COUPLING
|
1 |
|
| 5 |
19183 |
WASHER Fiber
|
1 |
superseded
|
| 6 |
826134 |
ANODE
|
2 |
superseded
|
| 7 |
4000333 |
SCREW (M6 x 40)
|
1 |
|
| 8 |
8268336 |
NUT (M6)
|
1 |
superseded
|
| 9 |
42647A1 |
BEARING ASSEMBLY Roller
|
1 |
|
