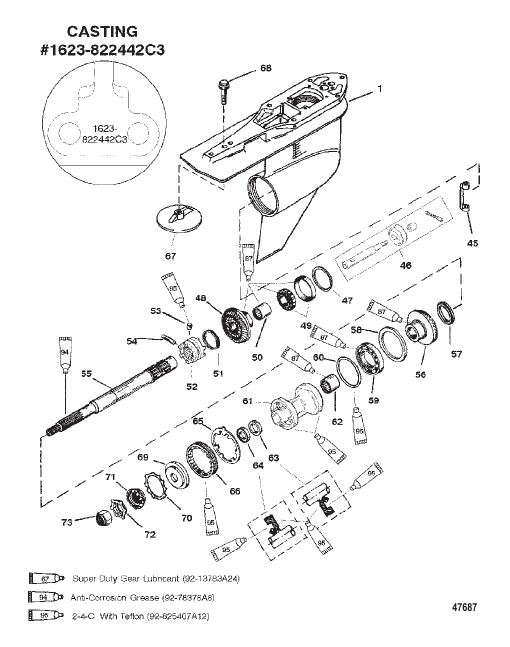

GEAR HSG (PROP SHAFT)STD. ROTATION(G438000 & UP)
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 816575A4 |
КОМПЛЕКТ УПЛОТНЕНИЙ Картер редуктора SEAL KIT Gear Housing |
1 | |
| 1 | 822442A83 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC-BLACK) GEAR HOUSING ASSEMBLY (BASIC-BLACK) |
1 | superseded |
| 1 | 822442A84 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC-GRAY) GEAR HOUSING ASSEMBLY (BASIC-GRAY) |
1 | superseded |
| 1 | 822442A79 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC-WHITE) GEAR HOUSING ASSEMBLY (BASIC-WHITE) |
1 | superseded |
| 45 | 823903 |
РУЧКА ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHIFT CRANK |
1 | superseded |
| 46 | 19755A7 |
ЗОЛОТНИК В СБОРЕ SPOOL ASSEMBLY |
1 | superseded |
| 47 | 44491A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | discontinued |
| 48 | 828168A2 |
РЕДУКТОР В СБОРЕ Передняя (INCLUDES PINION GEAR) (1.75:1) GEAR ASSEMBLY Forward (INCLUDES PINION GEAR) (1.75:1) |
1 | superseded |
| 48 | 828170A2 |
НАБОР ШЕСТЕРЕН Передняя и шестерня (INCLUDES PINION GEAR) (1.87:1) GEAR SET Forward And Pinion (INCLUDES PINION GEAR) (1.87:1) |
1 | superseded |
| 49 | 30894A1 |
НАБОР ПОДШИПНИКОВ Колпачок и конус BEARING SET Cup And Cone |
1 | |
| 50 | 30895 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 51 | 30893 |
ПРУЖИНА SPRING |
1 | |
| 52 | 828288 |
СКОЛЬЗЯЩАЯ МУФТА SLIDING CLUTCH |
1 | superseded |
| 53 | 828356 |
ШТИФТ Фиксатор PIN Detent |
1 | |
| 54 | 30632 |
ШТИФТ Разрез PIN Cross |
1 | superseded |
| 55 | 824110 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | superseded |
| 56 | 828169A1 |
РЕДУКТОР В СБОРЕ Задняя (1.75:1) GEAR ASSEMBLY Reverse (1.75:1) |
1 | superseded |
| 56 | 828171A1 |
ПЕРЕДАЧА Задняя (1.87:1) GEAR Reverse (1.87:1) |
1 | discontinued |
| 57 | 824108 |
ПРОСТАВКА SPACER |
1 | |
| 58 | 681001 |
КОЛЬЦО Упор RING Thrust |
1 | |
| 59 | 88957 |
БЛОК ПОДШИПНИКА Шарик BEARING ASSEMBLY Ball |
1 | superseded |
| 60 | 31534 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 61 | 818763A11 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 62 | 30956 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 63 | 14077 |
УПЛОТНЕНИЕ Масло (INSIDE) SEAL Oil (INSIDE) |
1 | |
| 64 | 76868 |
УПЛОТНЕНИЕ (OUTSIDE) SEAL (OUTSIDE) |
1 | superseded |
| 65 | 18323 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 66 | 79448 |
ФИКСАТОР RETAINER |
1 | superseded |
| 67 | 76214A5 |
КОМПЛЕКТ АНОДОВ THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT ANODE KIT THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 68 | 806327 |
ВИНТ (0.437-14 x 1.750) THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT SCREW (.437-14 x 1.750) THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 69 | 835467 |
УПОРНАЯ ВТУЛКА THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT THRUST HUB THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 70 | 423511 |
СТОПОРНАЯ ШАЙБА Зубчатая THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT LOCKWASHER Toothed THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | |
| 71 | 31211A2 |
ШАЙБА Шлицевый THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT WASHER Splined THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 72 | 816629 |
ЛЕПЕСТКОВАЯ ШАЙБА THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT TAB WASHER THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 73 | 52707A1 |
КОМПЛЕКТ ГАЙКИ ГРЕБНОГО ВИНТА (.750-16) THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT PROP NUT KIT (.750-16) THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
