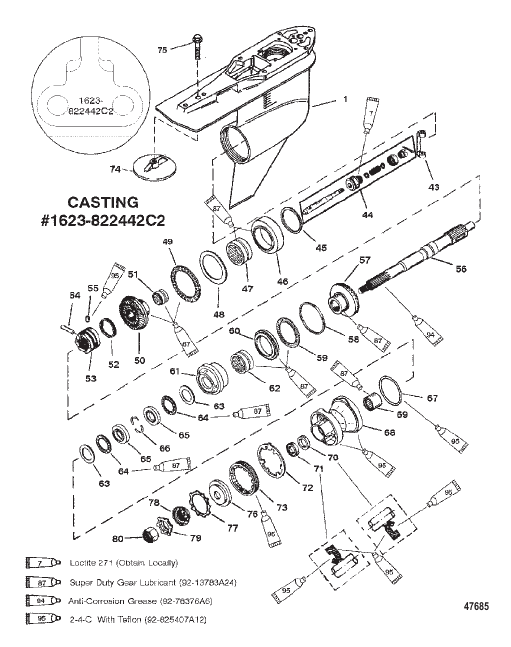

GEAR HSG (PROP SHAFT)COUNTER ROTATION(G437999 & BELOW)
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 816575A5 |
КОМПЛЕКТ УПЛОТНЕНИЙ Картер редуктора SEAL KIT Gear Housing |
1 | |
| 1 | 822442A25 |
КАРТЕР РЕДУКТОРА В СБОРЕ Базовый – черный (BASIC-BLACK) WHEN STOCK IS DEPLETED, ORDER 1623-822442A83 (BLACK) OR 1623-822442A84 (GRAY) AND 828830A1 REVERSE GEAR BEARING ADAPTOR GEAR HOUSING ASSEMBLY Basic - Black (BASIC-BLACK) WHEN STOCK IS DEPLETED, ORDER 1623-822442A83 (BLACK) OR 1623-822442A84 (GRAY) AND 828830A1 REVERSE GEAR BEARING ADAPTOR |
1 | discontinued |
| 1 | 822442A26 |
КАРТЕР РЕДУКТОРА В СБОРЕ Базовый – серый (BASIC-GRAY) WHEN STOCK IS DEPLETED, ORDER 1623-822442A83 (BLACK) OR 1623-822442A84 (GRAY) AND 828830A1 REVERSE GEAR BEARING ADAPTOR GEAR HOUSING ASSEMBLY Basic - Gray (BASIC-GRAY) WHEN STOCK IS DEPLETED, ORDER 1623-822442A83 (BLACK) OR 1623-822442A84 (GRAY) AND 828830A1 REVERSE GEAR BEARING ADAPTOR |
1 | discontinued |
| 59 | 15841 |
ПОДШИПНИК Ролик BEARING Roller |
1 | |
| 60 | 17616 |
УПОРНОЕ КОЛЬЦО THRUST RING |
1 | |
| 61 | 818292A1 |
ПЕРЕХОДНИК В СБОРЕ Подшипник ADAPTER ASSEMBLY Bearing |
1 | discontinued |
| 62 | 814653 |
БЛОК ПОДШИПНИКА Игольчатые ролики BEARING ASSEMBLY Needle Rollers |
1 | superseded |
| 63 | 18448 |
УПОРНАЯ ШАЙБА THRUST WASHER |
2 | |
| 64 | 15842 |
ПОДШИПНИК Упор BEARING Thrust |
2 | |
| 65 | 8182911 |
ГОНОЧНЫЙ Упор RACE Thrust |
2 | |
| 66 | 814605 |
КОНТРГАЙКА KEEPER |
2 | |
| 67 | 31534 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 68 | 818290A1 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 69 | 30956 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 70 | 14077 |
УПЛОТНЕНИЕ Масло (INSIDE) SEAL Oil (INSIDE) |
1 | |
| 71 | 76868 |
УПЛОТНЕНИЕ (OUTSIDE) SEAL (OUTSIDE) |
1 | superseded |
| 72 | 18323 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 73 | 79448 |
ФИКСАТОР RETAINER |
1 | superseded |
| 74 | 76214A5 |
КОМПЛЕКТ АНОДОВ THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT ANODE KIT THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT |
1 | superseded |
| 75 | 806327 |
ВИНТ (0.437-14 x 1.750) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT SCREW (.437-14 x 1.750) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT |
1 | superseded |
| 76 | 835467 |
УПОРНАЯ ВТУЛКА THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT THRUST HUB THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT |
1 | superseded |
| 77 | 423511 |
СТОПОРНАЯ ШАЙБА Зубчатая THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT LOCKWASHER Toothed THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT |
1 | |
| 78 | 31211A2 |
ШАЙБА Шлицевый THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT WASHER Splined THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT |
1 | superseded |
| 79 | 816629 |
ЛЕПЕСТКОВАЯ ШАЙБА THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT TAB WASHER THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT |
1 | superseded |
| 80 | 52707A1 |
КОМПЛЕКТ ГАЙКИ ГРЕБНОГО ВИНТА (.750-16) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT PROP NUT KIT (.750-16) THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT |
1 | superseded |
