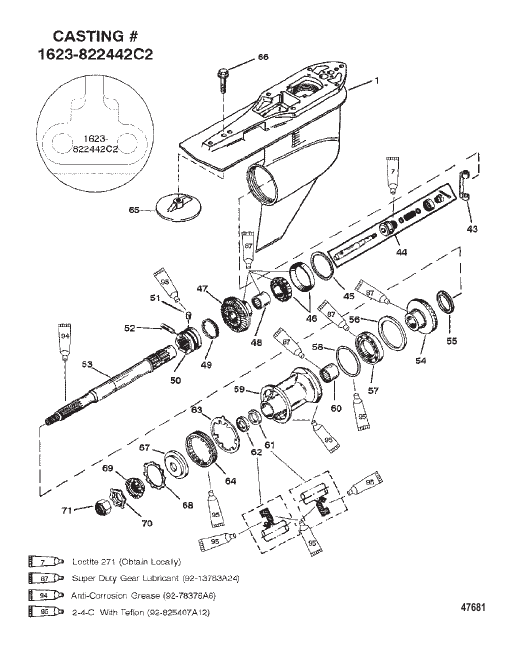

GEAR HSG (PROP SHAFT)STD. ROTATION(G437999 & BELOW)
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 816575A5 |
КОМПЛЕКТ УПЛОТНЕНИЙ Картер редуктора SEAL KIT Gear Housing |
1 | |
| 1 | 822442A25 |
КАРТЕР РЕДУКТОРА В СБОРЕ Базовый – черный (BASIC-BLACK)WHEN STOCK IS DEPLETED, ORDER 1623-822442A83 (BLACK) OR 1623-822442A84 (GRAY) AND 31-828439A2 FORWARD GEAR BEARING GEAR HOUSING ASSEMBLY Basic - Black (BASIC-BLACK)WHEN STOCK IS DEPLETED, ORDER 1623-822442A83 (BLACK) OR 1623-822442A84 (GRAY) AND 31-828439A2 FORWARD GEAR BEARING |
1 | discontinued |
| 1 | 822442A26 |
КАРТЕР РЕДУКТОРА В СБОРЕ Базовый – серый (BASIC-GRAY) WHEN STOCK IS DEPLETED, ORDER 1623-822442A83 (BLACK) OR 1623-822442A84 (GRAY) AND 31-828439A2 FORWARD GEAR BEARING GEAR HOUSING ASSEMBLY Basic - Gray (BASIC-GRAY) WHEN STOCK IS DEPLETED, ORDER 1623-822442A83 (BLACK) OR 1623-822442A84 (GRAY) AND 31-828439A2 FORWARD GEAR BEARING |
1 | discontinued |
| 43 | 823903 |
РУЧКА ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHIFT CRANK |
1 | superseded |
| 44 | 818349A1 |
КОМПЛЕКТ ЗОЛОТНИКА SPOOL KIT |
1 | superseded |
| 45 | 47397A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | |
| 46 | 35928A1 |
БЛОК ПОДШИПНИКА Конический ролик (USE WITH 1623-822442C2 CASTING) BEARING ASSEMBLY Taper Roller (USE WITH 1623-822442C2 CASTING) |
1 | superseded |
| 46 | 828439A2 |
БЛОК ПОДШИПНИКА Конический ролик (USE WITH 1623-822442C3 CASTING) BEARING ASSEMBLY Taper Roller (USE WITH 1623-822442C3 CASTING) |
1 | |
| 47 | 826181A2 |
НАБОР ШЕСТЕРЕН Передняя (INCLUDES PINION GEAR) GEAR SET Forward (INCLUDES PINION GEAR) |
1 | |
| 48 | 30895 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 49 | 30893 |
ПРУЖИНА SPRING |
1 | |
| 50 | 824112 |
СКОЛЬЗЯЩАЯ МУФТА SLIDING CLUTCH |
1 | superseded |
| 51 | 78909 |
ШТИФТ Фиксатор PIN Detent |
1 | |
| 52 | 30632 |
ШТИФТ Разрез PIN Cross |
1 | superseded |
| 53 | 824110 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | superseded |
| 54 | 826182A1 |
РЕДУКТОР В СБОРЕ Задняя GEAR ASSEMBLY Reverse |
1 | |
| 55 | 824108 |
ПРОСТАВКА SPACER |
1 | |
| 56 | 681001 |
КОЛЬЦО Упор RING Thrust |
1 | |
| 57 | 88957 |
БЛОК ПОДШИПНИКА Шарик BEARING ASSEMBLY Ball |
1 | superseded |
| 58 | 31534 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 59 | 818763A11 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 60 | 30956 |
ПОДШИПНИК Игла BEARING Needle |
1 | superseded |
| 61 | 14077 |
УПЛОТНЕНИЕ Масло (INSIDE) SEAL Oil (INSIDE) |
1 | |
| 62 | 76868 |
УПЛОТНЕНИЕ (OUTSIDE) SEAL (OUTSIDE) |
1 | superseded |
| 63 | 18323 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 64 | 79448 |
ФИКСАТОР RETAINER |
1 | superseded |
| 65 | 76214A5 |
КОМПЛЕКТ АНОДОВ THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT ANODE KIT THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 66 | 806327 |
ВИНТ (0.437-14 x 1.750) THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT SCREW (.437-14 x 1.750) THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 67 | 835467 |
УПОРНАЯ ВТУЛКА THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT THRUST HUB THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 68 | 423511 |
СТОПОРНАЯ ШАЙБА Зубчатая THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT LOCKWASHER Toothed THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | |
| 69 | 31211A2 |
ШАЙБА Шлицевый THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT WASHER Splined THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 70 | 816629 |
ЛЕПЕСТКОВАЯ ШАЙБА THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT TAB WASHER THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
| 71 | 52707A1 |
КОМПЛЕКТ ГАЙКИ ГРЕБНОГО ВИНТА (.750-16) THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT PROP NUT KIT (.750-16) THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT |
1 | superseded |
