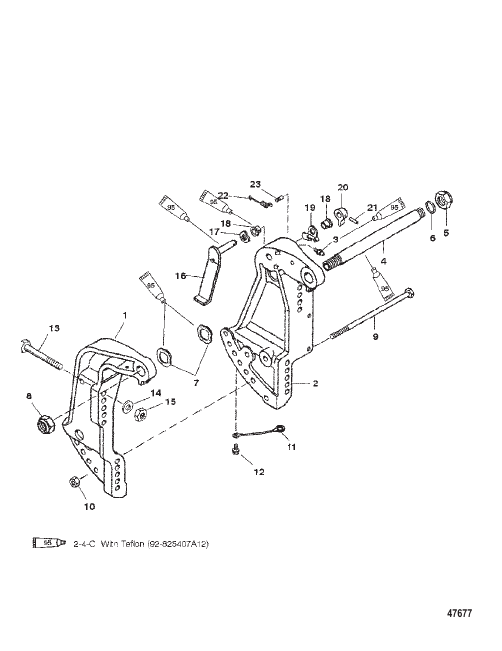

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8718F7 |
BRACKET Transom (STBD-BLACK)
|
1 |
disc.
|
| 1 |
8718F8 |
BRACKET Transom (STBD-GRAY)
|
1 |
disc.
|
| 1 |
8718F11 |
BRACKET Transom (STBD-WHITE)
|
1 |
disc.
|
| 10 |
23161 |
NUT (.375-24) (.375-24)
|
1 |
|
| 11 |
88238A10 |
CABLE ASSEMBLY Ground
|
1 |
|
| 12 |
41508 |
SCREW (.250-20 x .500) Stainless Steel (1/4-20 X .375)
|
1 |
|
| 13 |
677551 |
SCREW (.500-20 x 4.500)
|
4 |
superseded
|
| 14 |
28421 |
WASHER (1.5 x 3.05 x 0.13) Stainless Steel
|
4 |
superseded
|
| 15 |
8M0027784 |
NUT
|
4 |
superseded
|
| 16 |
99629A2 |
LEVER ASSEMBLY
|
1 |
superseded
|
| 17 |
99611 |
WAVE WASHER
|
1 |
|
| 18 |
65830 |
NYLINER
|
2 |
|
| 19 |
814207 |
STOP
|
1 |
disc.
|
| 2 |
8716A8 |
BRACKET ASSEMBLY Transom (PORT-BLACK)
|
1 |
disc.
|
| 2 |
8716A9 |
BRACKET ASSEMBLY Transom (PORT-GRAY)
|
1 |
disc.
|
| 2 |
8716A11 |
BRACKET ASSEMBLY Transom (PORT-WHITE)
|
1 |
disc.
|
| 20 |
99633 |
KNOB
|
1 |
|
| 21 |
99615 |
PIN Groove
|
1 |
|
| 22 |
99622 |
SPRING
|
1 |
|
| 23 |
99604 |
PIN Groove
|
1 |
|
| 3 |
98727 |
FITTING Grease (PORT)
|
1 |
superseded
|
| 4 |
826125A1 |
TILT TUBE
|
1 |
|
| 5 |
826135 |
NUT Lock (1.00-14) Nylon Insert (1 IN. -14)
|
1 |
|
| 6 |
45711 |
O-RING (.612 x .103)
|
1 |
|
| 7 |
88750 |
WASHER Wave (1.62 x 1.05)
|
2 |
|
| 8 |
826164 |
NUT (.875-14) (7/8-14)
|
1 |
superseded
|
| 9 |
96930A1 |
BOLT ASSEMBLY
|
1 |
|
