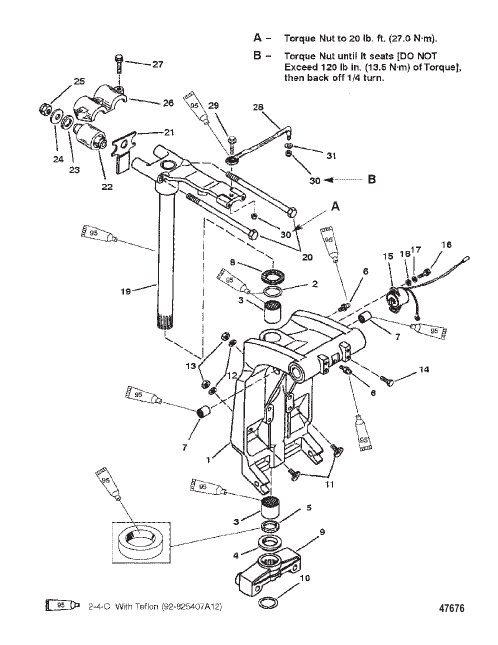

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8710A20 |
SWIVEL BRACKET ASSEMBLY (BLACK)
|
1 |
superseded
|
| 1 |
8710A21 |
SWIVEL BRACKET ASSEMBLY (GRAY)
|
1 |
superseded
|
| 1 |
8710A23 |
SWIVEL BRACKET (WHITE)
|
1 |
disc.
|
| 10 |
67684 |
RING Retaining
|
1 |
|
| 11 |
996301 |
STRIKER PLATE
|
2 |
superseded
|
| 12 |
58643 |
LOCKWASHER (.375)
|
2 |
|
| 13 |
46335 |
NUT (.375-24)
|
2 |
|
| 14 |
64014 |
SCREW (.250-28 x .500) (1/4-28)
|
2 |
|
| 15 |
821180A6 |
SENDER ASSEMBLY Trim
|
1 |
superseded
|
| 16 |
56682 |
SCREW (#10-24 x .750) (10-24 X 3/4 IN.)
|
2 |
superseded
|
| 17 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
2 |
|
| 18 |
89302 |
WASHER (.203 x .406 x .040)
|
2 |
|
| 19 |
67706A55 |
SWIVEL PIN ASSEMBLY Steering Arm (BLACK)(LONG - CARBON STEEL)
|
1 |
disc.
|
| 19 |
67706A56 |
SWIVEL PIN ASSEMBLY Steering Arm (GRAY)(LONG - CARBON STEEL)
|
1 |
superseded
|
| 19 |
826432A2 |
SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel (BLACK-XL-STAINLESS STEEL)
|
1 |
superseded
|
| 19 |
826432A3 |
SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel (GRAY-XL-STAINLESS STEEL)
|
1 |
disc.
|
| 19 |
826432A6 |
SWIVEL PIN ASSEMBLY (WHITE-XL-STAINLESS STEEL)
|
1 |
superseded
|
| 2 |
33504 |
O-RING
|
1 |
superseded
|
| 20 |
816386 |
SCREW (M12 x 190) (M12 X 1.75 X 190)
|
2 |
superseded
|
| 21 |
824998 |
BUMPER
|
1 |
superseded
|
| 22 |
8163851 |
MOUNT Upper
|
2 |
|
| 23 |
815437 |
WASHER
|
2 |
superseded
|
| 24 |
815436 |
WASHER
|
2 |
|
| 25 |
90099 |
NUT (M12)
|
2 |
superseded
|
| 26 |
813769 |
CLAMP
|
1 |
superseded
|
| 27 |
81893435 |
SCREW (M8 x 35) (M8 X 35)
|
3 |
|
| 28 |
92876A1 |
LINK ASSEMBLY Steering
|
1 |
superseded
|
| 29 |
14000 |
SCREW (.375-24 x 1.25)
|
1 |
superseded
|
| 3 |
818764 |
BUSHING
|
2 |
|
| 30 |
34863 |
NUT (.375-24) (.375-24)
|
2 |
superseded
|
| 31 |
37828 |
WASHER (.390 x .625 x .062) Stainless Steel
|
2 |
|
| 4 |
816039 |
SPACER
|
1 |
|
| 5 |
87735 |
SEAL Oil (LOWER)
|
1 |
|
| 6 |
74036 |
FITTING Grease
|
2 |
superseded
|
| 7 |
821207 |
BUSHING
|
2 |
|
| 8 |
816432 |
THRUST WASHER
|
1 |
|
| 9 |
814084F1 |
YOKE Bottom (BLACK)(LONG - CARBON STEEL)
|
1 |
superseded
|
| 9 |
814084F2 |
YOKE Bottom (GRAY)(LONG - CARBON STEEL)
|
1 |
disc.
|
| 9 |
826364F1 |
YOKE Bottom (BLACK-XL-STAINLESS STEEL)
|
1 |
superseded
|
| 9 |
826364F2 |
YOKE Bottom (GRAY-XL-STAINLESS STEEL)
|
1 |
disc.
|
| 9 |
826364F3 |
YOKE Bottom (WHITE-XL-STAINLESS STEEL)
|
1 |
disc.
|
